model-7610 model-7610 model-7610 Motorola
Motorola VC70N0 Data Terminal Motorola VC70N0 Data Terminal Motorola VC70N0 Data Terminal Motorola VC70N0 Data Terminal Motorola VC70N0 Data Terminal

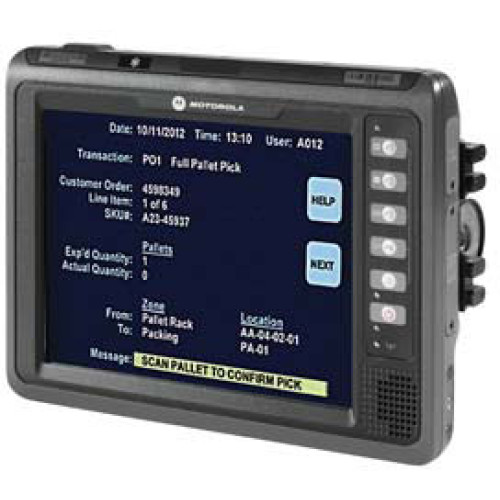

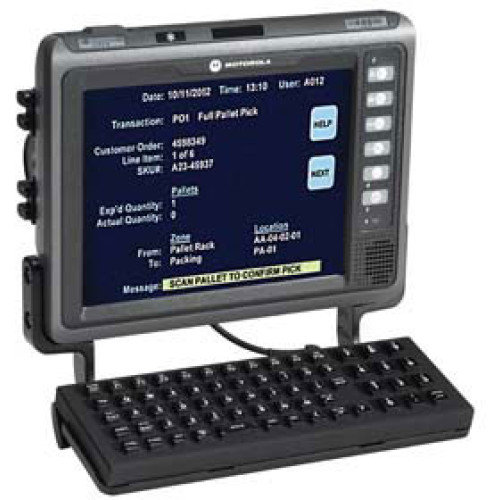

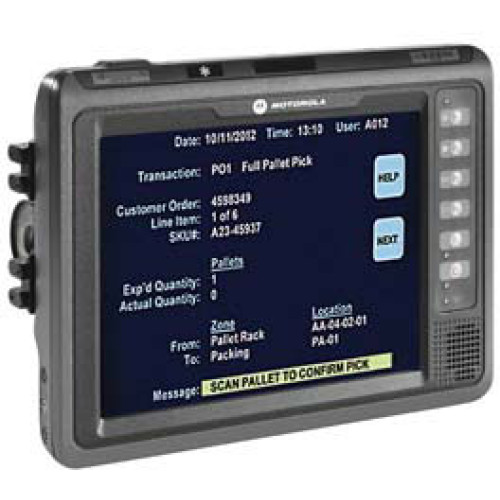

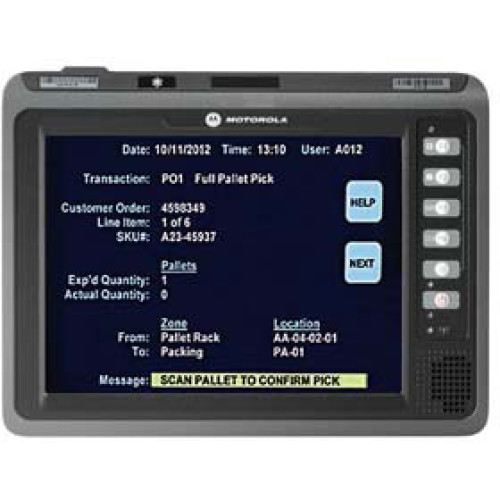

Motorola VC70N0 Data Terminal

Motorola VC70N0 Data Terminal

The Motorola VC70N0 Fixed Mount Vehicle Terminal is the right sized mobile computer that is needed to improve productivity and task accuracy in any conditions. The VC70N0 supports applications, covering receiving, put-away, replenishment, picking, packing, and shipping. A wide range of options available to maximize efficiency with corded or cordless barcode scanners, keyboards, and a variety of voice capabilities.
See all options
Motorola VC70N0 Specs Motorola VC70N0 Specs (pdf)

Display

Standard display
10.4 in. color XGA LCD; 1024x768, 600 NIT LED backlit

Physical characteristics

Data capture
Scanner Options: DS3508 Corded Scanner; DS3578 Cordless Scanner

Power supply
External IP66 sealed 9-60V DC/DC converter for all engines with 12V, 24V, 36V or 48V truck battery; external 100-240VAC power supply for AC-powered carts.

Keypad
3 keyboards, all backlit with IP66 sealing and tactile feedback: QWERTY or AZERTY, 65-key with function keys F1-F24; side-mounted 21-key numeric/functional keypad

Weight
4.3 kg / 9.4 lb

Battery
Integrated dual-function battery; provides up to 30 minute session persistence during forklift battery swap and up to 72 hours RAM backup

Antenna
Internal WLAN diversity antenna; optional external WLAN antenna with diversity; internal Bluetooth antenna

Touchscreen
Resistive touch; optional display defroster

Dimensions
291 mm L x 225.4 mm W x 60 mm D / 11.5 in. L x 8.9 in. W x 2.4 in. D

Regulatory Specifications

Product flammability
IEC UL94-V0

WLAN and Bluetooth
USA: FCC Part 15.247, 15.407 Canada: RSS-210 EU: EN 300 328, EN 301 893 AU/NZ: AS/NZS 4268

Environmental
RoHS/WEEE compliant

Electrical safety
UL/cUL/IEC/EN 60950-1 Indoor use and UL/cUL/IEC/EN 60950-22 Outdoor use

EMI/RFI
North America: FCC Part 15, Class B; Canada: ICES 003 Class B; EU: EN55022, EN 301 489-1, EN 301 489-17

System characteristics

Operating system
Windows Embedded Compact 7 (WEC 7)

Terminal emulation
Wavelink Terminal Emulation 3270, 5250, VT100, VT220; pre-loaded and pre-licensed.

Audio
Built-in front-mounted 2W speaker; optional external 13W speaker and external PTT microphone

Memory
512MB SDRAM and 2GB Flash

CPU
TI OMAP 4430, Dual Core @ 1GHz

Expansion slot
microSD up to 32GB SDHC Class 10; user accessible

User environment

Integrated sensors
Motion, humidity, temperature, ambient light, ignition

Solar radiation
IEC 68-2-5 Procedure A for 3 days

Thermal shock
-40° F to +158° F/-40° C to +70° C

Electrostatic discharge (ESD)
±15kV air discharge, ±8kV direct discharge

Vibration
MIL-STD 810F, Method 514.5 - Functional

Storage temperature
-40° to 158° F/-40° to 70° C

Altitude
15, 000 ft./4, 572 m above sea level

Salt fog
MIL-STD-810F (8 hours of 5% solution at 35° C)

Mechanical shock
MIL-STD 810F 516.5, Procedure 1 – Functional

Humidity
5% to 95% condensing; integrated accessible and field-replaceable desiccant

Environmental sealing
IP66

Operating temperature
-22° to 122° F/-30° to 50° C

Wireless data communications

Bluetooth
Class II, v2.1 EDR, 3 Mb/s Easy pairing/unpairing labels

Wireless LAN
802.11a/b/g/n

Extended Details
Refine Your Options
  1. Motorola Data Terminal

    Motorola Data Terminal
    Part #: VC70N0-60VDC-U-R | SKU: MOT17978

    Zebra VC70N0 Ultra-Rugged Vehicle-Mounted Mobile Computer - Texas Instruments 1 GHz - 512 MB RAM - 2 GB Flash Memory - 10.4" LCD - XGA - 1024 x 768 - Wi-Fi - IEEE 802.11a/b/g/n - Serial - USB - Windows Embedded Pro 7
  2. Motorola Data Terminal

    Motorola Data Terminal
    Part #: VC70N0-MA0U702G7WR | SKU: MOT207591

    Zebra VC70N0 Ultra-Rugged Vehicle-Mounted Mobile Computer - Texas Instruments 1 GHz - 512 MB RAM - 2 GB Flash Memory - 10.4" LCD - XGA - 1024 x 768 - Wi-Fi - IEEE 802.11a/b/g/n - Serial - USB - Windows Embedded Compact 7
  3. Motorola Data Terminal

    Motorola Data Terminal
    Part #: VC70N0-F-60VDC-U-R | SKU: MOT207590

    Zebra VC70N0 Ultra-Rugged Vehicle-Mounted Mobile Computer - Texas Instruments 1 GHz - 512 MB RAM - 2 GB Flash Memory - 10.4" LCD - XGA - 1024 x 768 - Wi-Fi - IEEE 802.11a/b/g/n - Serial - USB - Windows Embedded Compact 7
  4. Motorola Data Terminal

    Motorola Data Terminal
    Part #: VC70N0-MA0U702G8WR | SKU: MOT207618

    Zebra VC70N0 Ultra-Rugged Vehicle-Mounted Mobile Computer - Texas Instruments 1 GHz - 512 MB RAM - 2 GB Flash Memory - 10.4" LCD - XGA - 1024 x 768 - Wi-Fi - IEEE 802.11a/b/g/n - Serial - USB - Windows Embedded Compact 7
  5. Motorola Data Terminal

    Motorola Data Terminal
    Part #: VC70N0-AC-U-R | SKU: MOT207589

    Zebra VC70N0 Ultra-Rugged Vehicle-Mounted Mobile Computer - Texas Instruments 1 GHz - 512 MB RAM - 2 GB Flash Memory - 10.4" LCD - XGA - 1024 x 768 - Wi-Fi - IEEE 802.11a/b/g/n - Serial - USB - Windows Embedded Compact 7

5 Item(s)
