91640 91640 91640 Motorola

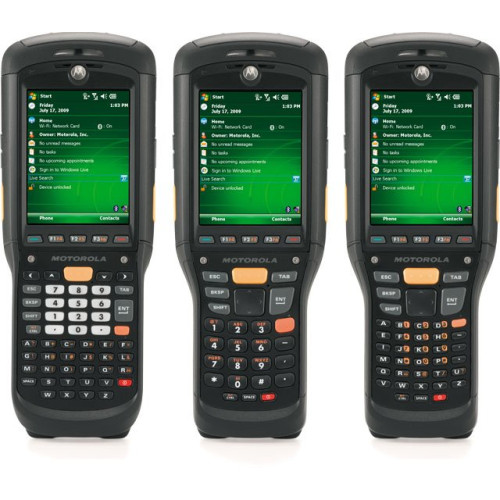

Motorola Mobile Computer
Part #: MC9590-KD0DAC00100 | SKU: MOT91640

The Motorola MC9500-K is purpose-built for the most demanding field applications. The superior rugged specifications dramatically reduce repair and downtime, delivering an exceptional return on investment and total cost of ownership. Designed to easily handle the inevitable drops and bumps out on the road, the MC9500-K passes Motorola's stringent mechanical design tests for both stress and endurance. The MC9500-K is the first mobile computer to provide true WAN technology independence. In addition to the ability to select either of the 3.5G wireless broadband networks. The MC9500-K offers a portfolio of keypads designed to meet the needs of virtually any type of application - from heavy text entry to calculator-style numeric data. Keypads can be swapped in your backroom in minutes, eliminating the need to return the device to a service center. The MC9500-K also offers a new housing, IP67 sealing, the industry's highest drop and tumble rating and more.

Motorola Mobile Computer

Part Details: MC9500-K Wireless Rugged, MC9500-K Handheld Terminal - Intel Xscale 806 MHz - 256 Mb Ram - 1 Gb Flash - 3.7" VGA Lcd - Alpha Keyboard - Infrared, Bluetooth
InStock

Additional Information

Display Resolution 640 x 480
IP Rating IP67
Interface Options Bluetooth, Wi-Fi
Manufacturer Motorola
Model Name MC9500-K
Operating System Windows Mobile 6.5
Operating Temperature -4 F - 122 F (-20 C - 50 C)
Processor Marvell PXA320 (806 MHz)
RAM Memory 256 MB
Scanner Capability 2D
Scanner Type Imager
Style Full-size

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Indirect Discharge
    • +/-8 kV DC Direct Discharge
  • Drop Specification: 72" To Concrete

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC9500-K
  • Product Name: MC9500-K Handheld Terminal

Physical Characteristics

  • Height: 9.2"
  • Width: 3.5"
  • Depth: 2"
  • Weight (Approximate): 1.37 lb

Network & Communication

  • Bluetooth: Yes
  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Infrared: Yes
  • Wireless LAN Standard: IEEE 802.11a/b/g
  • GPS: Yes
  • Wireless Security:
    • WPA2
    • 802.1x
    • EAP-TLS
    • EAP-FAST
    • TTLS
    • PEAP
    • LEAP

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: VGA
  • Screen Size: 3.7"
  • Display Color: Color
  • Screen Resolution: 640 x 480

Memory

  • Flash Memory: 1 GB
  • Standard Memory: 256 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD Card

Battery Information

  • Battery Capacity: 4800 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 806 MHz
  • Processor Type: XScale

Touchscreen Information

  • Touchscreen: Yes

Software

  • Operating System: Windows Mobile 6.5

Keyboard/Keypad

  • Keyboard Type: Alpha
Extended Details

Recommended Accessories for Model: Motorola Mobile Computer

  • Zebra Accessory
    Part #: 25-124330-01R | SKU: ZEB81134

    Cable, USB Sync, USB A to Micro B, Cradle to Host.
    Price: $18.77
    In Stock
  • Zebra Power Device
    Part #: PWR-BGA12V108W0WW | SKU: ZEB458526

    AC/DC Power Supply (Brick). AC Input: 100-240V, 2.8A. DC Output: 12V, 9A, 108W. Requires: DC line cord and Country specific grounded AC line cord.
    In Stock
  • Zebra Power Device
    Part #: CBL-DC-382A1-01 | SKU: ZEB458527

    DC line cord used with Mobile Computer's multi-slot cradles from a single LEVEL VI Power Supply PWR-BGA12V108W0WW.
    In Stock
  • Portsmith Accessory
    Part #: 170574-000 | SKU: POR223575

    Cable (12 Inch, USB MICR-A Male to STD-B Male) for the MC2100 and MC9500
    Price: $13.33
  • Portsmith Accessory
    Part #: 190087-003 | SKU: POR223254

    USB Micro A/B OTG to Mini-B Connector Cable; required to connect PS6U1UPE with Motorola ES400 EDA
    Price: $16.70

Recommended Warranties for Model: Motorola Mobile Computer

  • Zebra Service Contract
    Part #: Z1AE-MC95XX-3C00 | SKU: ZEB464026

    Zebra OneCare Essential with Comprehensive Coverage - 3 Year - Warranty - 8 x 5 x 3 Day - Maintenance - Labor - Physical, Electronic
    MSRP: $360.91 Price: $320.82
    In Stock
  • Symbol MC9500-K Service Contract
    Part #: SSE-MC95XX-50 | SKU: SYM369589

    Service Contract - 5 year, Zebra OneCare Essential Includes Comprehensive Coverage. Does not include coverage for cradles.
  • Symbol MC9500-K Service Contract
    Part #: SSE-MC95XX-30 | SKU: SYM369588

    Service Contract - 3 year, Zebra OneCare Essential Includes Comprehensive Coverage. Does not include coverage for cradles.
  • Zebra Service Contract
    Part #: Z1AE-MC95XX-5C00 | SKU: ZEB464027

    Zebra OneCare Essential with Comprehensive Coverage - 5 Year - Warranty - 8 x 5 x 3 Day - Maintenance - Labor - Physical, Electronic
  • Zebra Service Contract
    Part #: Z1AS-MC95XX-5C03 | SKU: ZEB464272

    Zebra OneCare Select With Comprehensive Coverage - 5 Year - Service - 24 x 7 Same Day - Exchange - Physical, Electronic
