Hand Held Barcode Scanner
Part #: 3800LX-15 | SKU: HAN22586

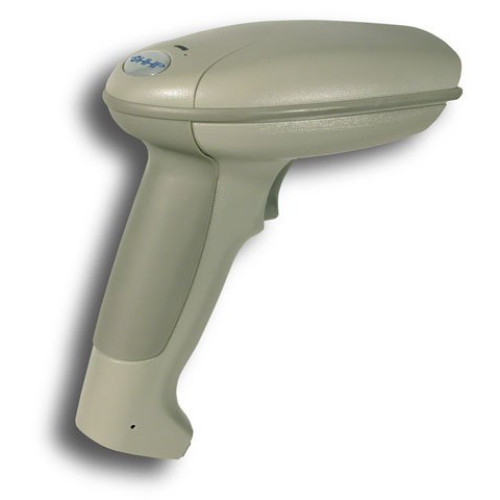

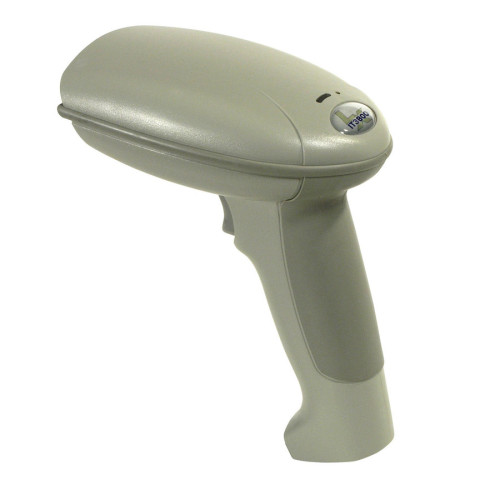

The IMAGETEAM 3800 is a high performance hand held bar code scanner. Using unique linear imaging technology the IT3800 sets a new standard in automatic data collection by combining a bright sharp aiming line with high resolution imaging to deliver exceptional performance in any environment. The IT3800 handle is smoothly contoured to fit all sized hands and has a soft grip area to add comfort and prevent slippage. The IT3800 connects to all popular PCs Apple MAC and portable data terminals. Models are available for IBM retail terminals (4683-93 OCIA) and for PDF417 applications as well. The IT3800 is ideally suited to retail point-of-sale in-store inventory document management transaction processing and vehicle registration applications.

Hand Held Barcode Scanner

Part Details: ImageTeam 3800, extended long range IBM USB, Beige, Requires cable, NEW #3800G05E

InStock

Need a different version of the Hand Held ImageTeam 3800 Barcode Scanner? View all 28 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Hand Held
Model Name	ImageTeam 3800
Scanner Capability	1D

Hand Held ImageTeam 3800 Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Resolution: 6.5 mil(s)
Symbologies Supported:
- Codabar
- Code 3 of 9
- PARAF
- Interleaved 2 of 5
- Code 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Post
- RSS
Scanner Type: Imager
Scan Rate: 270 Scans/sec
Interface Options: Decoded Output USB Retail Interface
Input Voltage: 5 V DC
Depth of Field:
- 2 - 16" - 100% UPC
- 3 - 36"@40mils

General Information

Manufacturer: Hand Held Products
Product Line: IMAGETEAM
Product Name: IMAGETEAM 3800LX Barcode Scanner

Physical Characteristics

Dimensions: 6" (152.4mm) x 3.1" (78.74mm) x 5.3" (134.62mm)
Weight: 6.3 oz

Agency Approvals

Agency Approvals:
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED
- Class 1
- UL
- cUL listed
- TÃ
