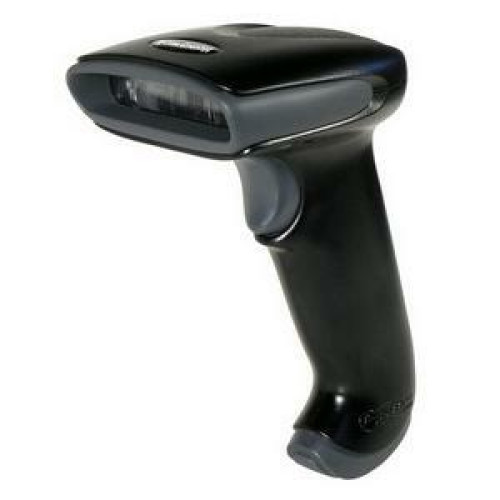

Honeywell Barcode Scanner
Part #: 3800G05E | SKU: HON22575

From the global leader in imaging technology comes the 3800g - the newest member of the legendary 3800 family of linear imagers. The first in a new class of 3800 linear imagers, the g was built to deliver world-class performance for a broad range of market applications. Featuring an ideal balance of performance, durability, ergonomics and connectivity solutions, the 3800g delivers years of hassle-free scanning for applications in Retail, Warehouse, Manufacturing, Distribution - and all points in-between.

Honeywell Barcode Scanner

Part Details: SCANNER ONLY, 1D Linear Imager, PS/2. Cables must be purchased separately. PS/2 cable (Part# 42206132-02E). Color: White.

InStock

Need a different version of the Honeywell 3800g Barcode Scanner? View all 13 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Honeywell
Model Name	3800g
Scanner Capability	1D
Scanner Type	Imager

Honeywell 3800g Specs (pdf)

Technical Information

Form Factor: Handheld Scanner
Barcode Dimension: 1D/2D
Resolution: 3 mil(s)
Symbologies Supported:
- Codabar
- Code 3 of 9 including PARAF
- Interleaved 2 of 5
- Industrial 2 of 5
- Matrix 2 of 5
- Code 11
- Code 93
- Code 128
- UPC
- EAN/JAN
- China Postal Code
- RSS
- Sunrise 2005
- GTIN Compliant
Scanner Type: Linear Imager
Scan Rate: 270 Decodes per second
Interface Options:
- Keyboard Wedge
- RS-232
- USB
- IBM Retail
Interface Connectivity: Corded
Scan Pattern: Linear
Input Voltage Range: 5 to 12 V DC
Depth of Field:
- 2 - 8"@5mils
- 1.5 - 12"@7.5mils
- 1 - 15"@10mils - 80% UPC
- 0.5 - 18"@13mils - 100% UPC
- 1 - 22"@15mils
- 1 - 26"@20mils

General Information

Manufacturer:
- Hand Held Products
- Hand Held Products, Inc
Product Name: 3800g Barcode Scanner

Physical Characteristics

Dimensions: 5.9" (149.86mm) x 3.1" (78.74mm) x 4.4" (111.76mm)
Weight: 5.6 oz
Color: Ivory

Agency Approvals

Agency Approvals:
- UL
- cUL
- RoHS
- FCC Class B
- CE EMC Class B
- CE Low Voltage Directive
- IEC60825-1 LED Safety: Class 1

Environmental Conditions

Temperature:
- 32Â°F (0Â°C) to 122Â°F (50Â°C) Operating
- -40Â°F (-40Â°C) to 140Â°F (60Â°C) Storage
Humidity: 0 to 95% Non-condensing

Warranty

Manufacturer Warranty: 5 Year(s)

Extended Details

Recommended Accessories for Model: Honeywell Barcode Scanner

Honeywell Power Device
Part #: 77900506E | SKU: HON27568

Cable: power cord, power supply to AC outlet, straight, 1.8m (6.0ft) - US . Non-Cancelable/Non-Returnable.

Price: $20.96

In Stock
Honeywell Accessory
Part #: HFSTAND7E | SKU: HON21833

Black flex-neck stand for 1300g or 3800g. 10" height, weighted base. Non-Cancellable and Non-Returnable

MSRP: $59.71 Price: $46.32

In Stock
Honeywell Cables, Connectors, and Adapters
Part #: 42206431-01E | SKU: HON51502

Honeywell USB Data Transfer Cable NOT Compatible with 3800G - Type A Male USB - 11ft

MSRP: $151.61 Price: $117.63

In Stock
Honeywell Cables, Connectors, and Adapters
Part #: 42206161-01E | SKU: HON24928

Cable, USB, black, Type A, 2.6m (8.5'), straight, host power

MSRP: $29.87 Price: $26.95

In Stock
Honeywell Cables, Connectors, and Adapters
Part #: 42203764-03E | SKU: HON28297

Cable, Wand Emulation, Power on Pin 9 Connector: D 9 PIN Squeeze Length: 7.7 ft. (2.3m), coiled. Non-Cancelable/Non-Returnable.

MSRP: $56.66 Price: $44.65
