| Interface Options | Parallel, Serial (RS-232) |
|---|---|
| Manufacturer AIDC | Datamax-O'Neil |
| Max Roll Outer Diameter | 8 |
| Model Name | I-4604 |
| Print Resolution | 609 dpi |
| Print Speed | 4 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

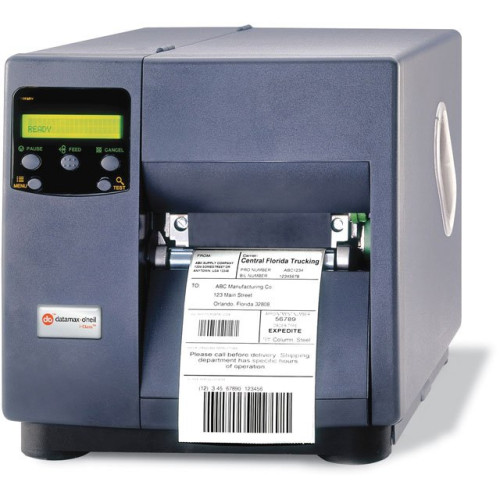

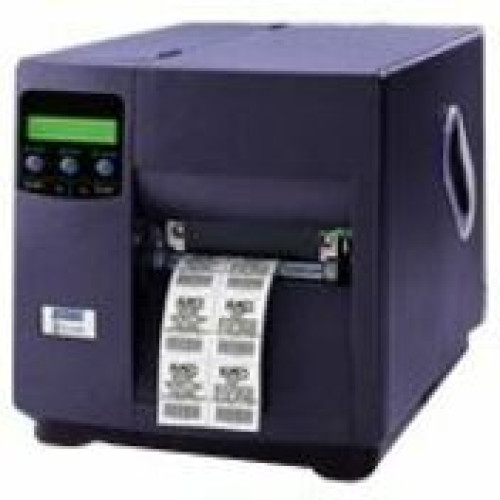

Datamax-O'Neil I-4604 Specs
Technical Information
- Maximum Mono Print Speed: 4 in/s
- Maximum Print Resolution: 600 dpi
- Maximum Print Width: 4.16"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- Code 39
- UPC-A
- UPC-E
- Interleaved 2 of 5
- Code 128
- EAN-8
- EAN-13
- HIBC
- Codabar
- Plessey
- UPC 2 and 5 Digit Extension
- Code 93
- POSTNET
- UCC/EAN 128
- Telepen
- UPS Maxi Code
- FIM
- PDF-417
- USD-8
- Data Matrix
- QR Code
- Aztec Code
- TLC 39
- Micro PDF-417
- RSS
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Brand Name: Datamax-O'Neil
- Manufacturer: Datamax-O'Neil
- Product Model: I-4604
- Product Name: I-4604 Thermal Label Printer
- Product Line: I-Class
Physical Characteristics
- Height: 12.7"
- Width: 12.6"
- Depth: 18.6"
Media Types & Handling
- Maximum Label Width: 4.65"
- Media Type:
- Roll Fed
- Fanfold
- Die-cut Label
- Continuous Label
- Perforated Label
- Continuous Tag
- Ticket Stock
- Plain Paper
- Tag Stock
- Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Other
- Platform Supported: PC
- Certifications & Standards:
- Safety Standards:
- UL
- Canadian
- European
- Emissions Standard:
- CE
- FCC Class A
- Additional Information:
- Character Set: Modified IBM Code Page 850
- Graphics Support: .PCX, .BMP and .IMG files
- Rotation: Fonts and graphics can be printed in four directions: 0°, 90°, 180° and 270°
- Media Sensor: Adjustable sensor detects "see through" for liner-backed die-cut labels and tags or reflective sensing for media with black stripe sensing.
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 16 MB
- Memory Technology: SDRAM
- Flash Memory: 2 MB
Fonts & Emulation
- Language Emulation: DPL
