176304 176304 176304 Datamax-O'Neil

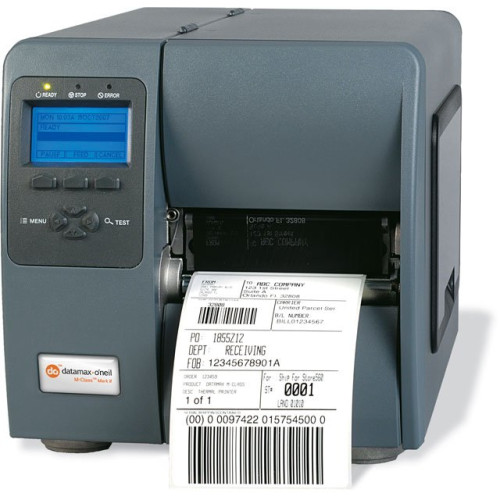

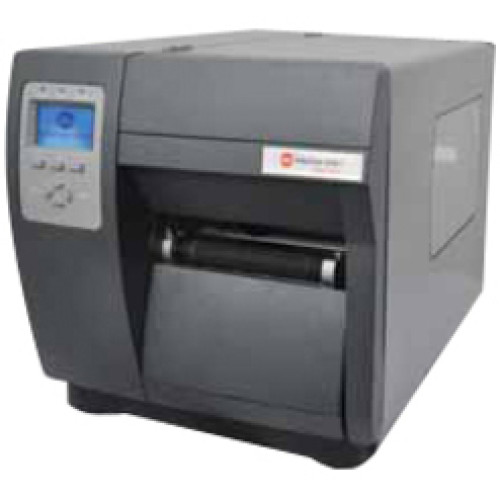

Datamax-O'Neil Barcode Label Printer Datamax-O'Neil Barcode Label Printer

Datamax-O'Neil Barcode Label Printer
Part #: I16-00-48000007 | SKU: DAT176304

The Datamax-O-Neil I-4606e offers the fastest processor, largest memory and widest selection of communication ports available in a mid-range printer, the I-4606e provides lower operating costs and flawless print quality. For applications as diverse as shipping and receiving, product identification, pharmacy labeling and asset tracking, the I-4606e will maintain its reputation for providing outstanding for performance, reliability and value.

Datamax-O'Neil Barcode Label Printer

Part Details: I-4606e, Industrial Printer, Honeywell-Datamax I-4606E, Thermal transfer, 600 dpi, 4.16" Print width, 6" per Second Print speed, Serial, USB and Parallel Interfaces, Real-time clock, 1.5" to 3" Media Hub, Includes US Plug.
InStock
Need a different version of the Honeywell I-4606e Barcode Label Printer? View all 7 configurations

Additional Information

Interface Options Parallel, Serial (RS-232), USB
Labels Per Day more than 10,000
Manufacturer AIDC Datamax-O'Neil
Max Roll Outer Diameter 8
Model Name I-4606e
Print Resolution 600 dpi
Print Speed 6 ips
Printer Type Industrial
Ribbon Core Size 1 inch
Datamax-O'Neil I-4606e Specs Datamax-O'Neil I-4606e Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 6 in/s
  • Maximum Print Resolution: 600 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.17"
  • Recommended Use: Label Print
  • Features:
    • Media Supply Hub
    • Real Time Clock
  • Barcode Symbology Supported:
    • Data Matrix
    • POSTNET
    • PDF-417
    • Interleaved 2 of 5
    • UCC/EAN 128
    • Code 16K
    • Code 11
    • Code 3 of 9
    • Code 128
    • Codabar
    • Codablock
    • Code 93
    • Micro PDF-417
    • Industrial 2 of 5
    • Telepen
    • UPC-E
    • EAN/JAN-8
    • EAN/JAN-13
    • UPC-A
    • Standard 2 of 5
    • Plessey
    • USD-8
    • Planet Code
    • HIBCC
    • TLC 39
    • GS1 DataBar
    • Maxi Code
    • QR Code
    • Aztec Code
    • FIM

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Brand Name: Datamax
  • Manufacturer: Datamax-O'Neil
  • Product Model: I-4606e
  • Product Name: I-Class Mark II I-4606e Label Printer
  • Product Line: I-Class

Physical Characteristics

  • Height: 12.7"
  • Width: 12.6"
  • Depth: 18.6"
  • Form Factor: Desktop
  • Weight (Approximate): 45.20 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 4.65"
  • Media Type:
    • Continuous Form
    • Fanfold
    • Perforated Label
    • Tag
    • Die-cut Label
    • Label
    • Ticket
  • Media Thickness: 10 mil
  • Label Core Size: 0.30"
  • Maximum Roll Diameter: 8"

Network & Communication

  • Ethernet: Yes
  • Wireless LAN: Yes
  • Ethernet Technology: Fast Ethernet
  • Wireless LAN Standard: IEEE 802.11a/b/g

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Memory

  • Standard Memory: 32 MB
  • Flash Memory: 64 MB

Display & Graphics

  • Display Screen Type: LCD

Warranty

  • Limited Warranty: 1 Year

Other

  • Platform Supported: PC

Fonts & Emulation

  • Language Emulation: DPL
Extended Details
