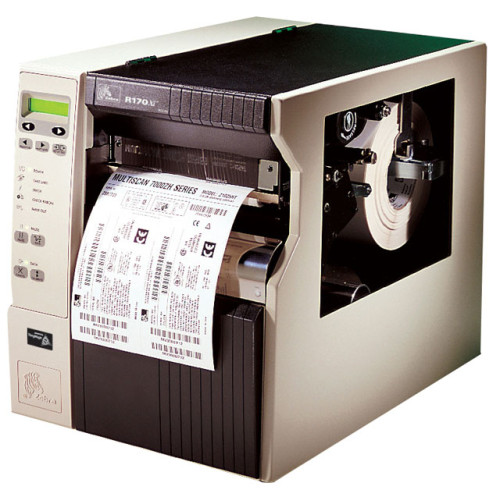

Zebra R170xi RFID Printer

The R170Xi is a premier Zebra printer/encoder that combines two key functions for companies that need to comply with today's RFID mandates printing standard barcode labels and encoding data into a passive RFID transponder embedded in the label. The R170Xi combines the strengths of the Xi platform with the versatility of the ThingMagic RFID reader module. This reader module offers the flexibility needed to guarantee a simple, cost-free upgrade path to Gen2 protocols. It conforms to multiple protocols (EPC Class 1, EPC Class 0, Matrics 0+, ISO18000-06B, and Philips UCODE 1.19) and gives users the assurance that they can seamlessly upgrade to future RFID protocols. The R170Xi features other innovations such as automatic inlay position calibration, multiple power levels, and label statistics tracking.

See all options

Specs & Info
All Options

Zebra R170xi Specs (pdf)

Standard Features

Fully integrated ThingMagic UHF RFID Reader/Encoder for transponder types:
- EPC Class 1
- EPC Class 0
- Matrics’ 0+
- SO18000-06B
EPC “Gen2” via firmware update
RFID processes optimized for fastest label throughput
New RFID ZPL commands allow ease of RFID set-up with maximum flexibility
Program position allows users to place transponders virtually anywhere within a smart label
RFID calibration feature automatically selects the program position for optimal transponder placement
RFID counters keep track of the good and bad labels
Variable RFID power settings for both read and write allows maximum flexibility for printing small labels
Full function front panel and multilingual backlit LCD display with user-programmable password protection
ZebraLink™, WebView, (requires optional ZebraNet ® PrintServer II) and Alert (requires optional ZebraNet PrintServer II)
Thin film printhead with E3® Element Energy Control
Thermal transfer and thermal direct printing of bar codes, text, and graphics
XML Enabled Printing
32 bit 133 MHz RISC processor
Type I, II linear memory up to 32 MB and future availability of Type III Series PC Card Interface
Clear media side door—easy monitoring of supplies usage without opening the printer systems
Zebra printer driver for Windows™ 3.X and 95/98/NT/2000 operating systems
Internal real-time clock
Auto calibration—printer calibrates when printer is turned on or when printhead is closed with approximately two labels
Early Warning Systems for low label, low ribbon, and clean printhead alerts

Operating Characteristics

Environmental (Thermal Transfer)
Operating temperature:
Thermal transfer = 41ºF to 104ºF (5ºC to 40ºC)
Thermal direct = 32ºF to 104ºF (0ºC to 40ºC)
Storage temperature: -40ºF to 140ºF (-40ºC to 60ºC)
Operating humidity: 20% to 85% non-condensing R.H.
Storage humidity: 5% to 85% non-condensing R.H.

Electrical
Universal power supply with power-factor correction 90-264 VAC, 48 – 62 Hz

Agency approvals
Bi-National UL 60950 3rd edition/CSA
CAN/CSA-C22.2 No. 60950-00 Third Edition;
FCC Part 15.107 & 15.109 Class B; FCC Part
15.247; Canadian ICES-003, Class B;
IC RSS-210

Connectivity
High-speed serial interface
High-speed bi-directional, IEEE 1284-1994
parallel interface
RS-232C with DB9F connector
USB 2.0 port

Programming Languages

Core programming languages
ZPL ® and ZPLII® -- Universal language for Zebra printers
ZBI™ -- Controls and interprets text and data from peripherals and non-ZPL printer programming languages. Transmits captured data over LAN or WAN via e-mail or TCP/IP messaging.

Bar codes/Symbologies

Linear

Code 11	UPC-A	UPC-E
Code 39	EAN-8	EAN-13
Code 93	Plessey	Postnet
Code 128 with subsets A/B/C and UCC Case Codes	Interleaved 2-of-5	EAN and UPC with 2 or 5 digital extensions
Codabar	Standard 2-of-5	MSI
ISBT 128	Industrial 2-of-5	LOGMARS
Planet Code

2-Dimensional Codes

Codablock	PDF417	Code 49
Maxi Code	Data Matrix	QR Code
MicroPDF	TLC 39

Fonts and Graphics
Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
Smooth scalable font Ø (CG Triumvirate Bold Condensed) is expandable dot-by-dot, height and width independent
Sets: IBM Code Page 850 International Characters
Contains USFT® from Agfa Monotype Corporation

Graphics Features
Supports user-defined fonts and graphics – including custom logos

Options and Accessories

ZebraNet PrintServer II
ZebraNet 10/100 Print Server
ZebraNet Wireless Print Server
Additional fonts
RS-422/485 multi-drop (optional adaptor)
Applicator interface
IBM Twinax interface
IBM Coax interface
BAR-ONE ® software
Media supply spindle
Media rewind spindle
Linear PCMCIA cards
ATA-Style PCMCIA cards or Compact Flash (CF) cards

Extended Details

Refine Your Options

Zebra RFID Printer
Part #: R70-7A1-00200 | SKU: ZEB15076

Thermal transfer & direct thermal, RFID, 300 dpi, ZebraNet 10/100 PrintServer Interface, US Power Supply, 16MB SDRAM, Rewinder, Clear Media Side Door and Media Hanger
Zebra RFID Printer
Part #: R12-7A1-00203 | SKU: ZEB21702

R170xi, Thermal transfer, RFID, 200 dpi, Serial, ZebraNet 10/100 PrintServer and USB Interfaces, US Power supply, 16MB SDRAM, Rewinder, Clear Media Side Door and Media Hanger. Order cables separately, see accessories.
Zebra RFID Printer
Part #: R70-7D1-00000 | SKU: ZEB47936

R170xi, RFID Printer-Encoder (Multi-Protocol RFID Reader, 300 dpi, ZebraNet Wireless PrintServer and Internal ZebraNet 10/100 Printserver, 120 VAC Cord-NA, 16MB SDRAM, Clear Media Side Door and Media Hanger)
Zebra RFID Printer
Part #: R70-7F1-00000 | SKU: ZEB47937

R170xi, RFID Printer-Encoder (Multi-Protocol RFID Reader, 300 dpi, ZebraNet Wireless Plus, Internal ZebraNet 10/100 Printserver, 120 VAC Cord-NA, 16MB SDRAM, Clear Media Side Door and Media Hanger)
