| Manufacturer AIDC | Zebra |
|---|---|
| Model Name | R170xi |
| Print Resolution | 300 dpi |

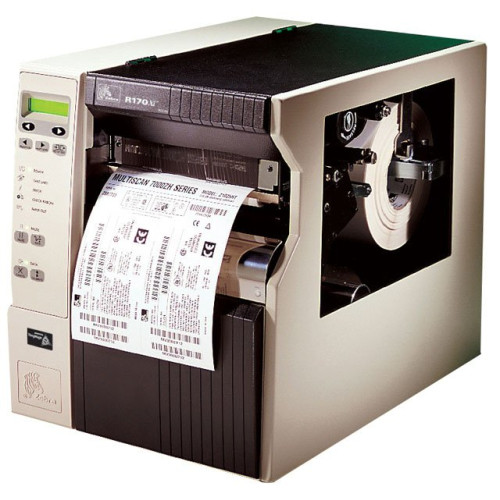

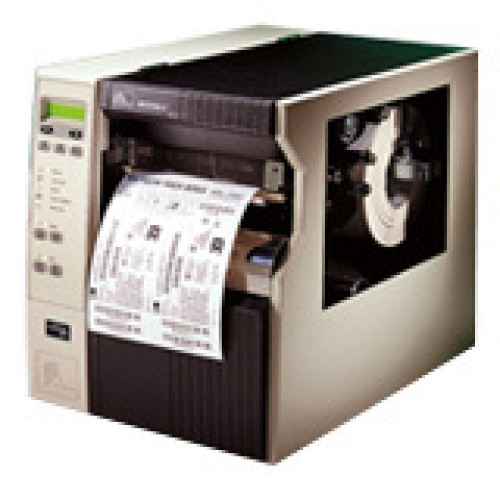

Zebra R170xi Specs
Technical Information
- Maximum Mono Print Speed: 8 in/s
- Maximum Print Resolution: 300 dpi
- Maximum Print Width: 6.60"
- Recommended Use: RFID Label Print
- Features: Rewinder
- Barcode Symbology Supported:
- Codabar
- Code 11
- Code 39
- Code 93
- EAN-8
- EAN-13
- Industrial 2 of 5
- Interleaved 2 of 5
- ISBT-128
- LOGMARS
- MSI
- Planet Code
- Plessey
- POSTNET
- Standard 2 of 5
- UPC 2 or 5 Digit Extension
- EAN With 2 or 5 Digit Extension
- UPC-A
- UPC-E
- Code 128-A
- Code 128-B
- Code 128-C
- UCC Case Codes
- Codablock
- Code 49
- Data Matrix
- Maxi Code
- PDF-417
- QR Code
- RSS
- TLC 39
- Micro PDF
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: RXi
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: R170Xi
- Product Name: R170Xi RFID Printer
Physical Characteristics
- Height: 15.5"
- Width: 13.2"
- Depth: 19.5"
Other
- Platform Supported: PC
- Package Contents:
- R170Xi RFID Printer
- User Guide
- Accessories CD
- 120V AC North American Edition Power Cord
- R170Xi RFID Printer
- User Guide
- Accessories CD
- 120V AC North American Edition Power Cord
- Certifications & Standards: Takra Tomy
- Additional Information:
- 300 unique darkness settings
- Advanced media/ribbon counter
- North American Edition, 120 VAC Cord
- Clear Media Side Door and Media Hanger
- Transmissive and Reflective media sensors
- Enhanced Alert notification - monitors printhead condition
- Multi-level Element Energy Equalizer (E3) for superior print quality
Media Types & Handling
- Maximum Label Width: 7.10"
- Maximum Label Length: 39"
- Media Type:
- Continuous Form
- Die-cut Label
- Black Mark
- Media Sensor:
- Transmissive Media Sensor
- Reflective Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 16 MB
- Memory Technology: SDRAM
- Flash Memory: 4 MB
Fonts & Emulation
- Language Emulation:
- ZPL
- ZPL II
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
RFID
- Minimum Operating Frequency: 868 MHz
- Maximum Operating Frequency: 956 MHz
Warranty
- Limited Warranty: 1 Year
