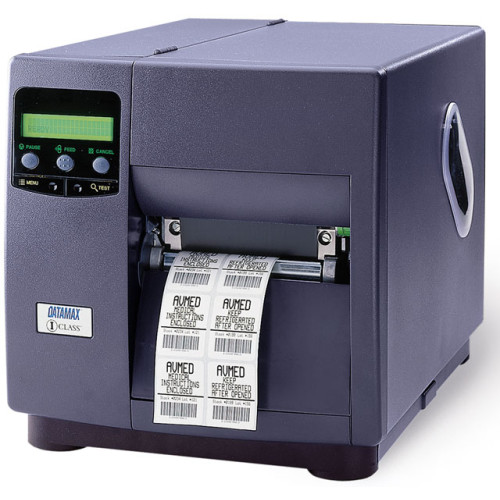

I-4604 Printers from Datamax

For applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes

The I-4604 printer is perfect for applications that demand printing very small labels, high-resolution graphics, or two-dimensional barcodes. With a 600 dpi (24 dots/mm) printhead and the ability to accurately maintain print registration, the I-4604 produces small labels for applications such as tracking small parts with high resolution barcode labels, printing high quality graphics for identifying wiring harnesses, cosmetic labels or adding an intricate Datamatrix, Aztec, or PDF417 barcode label to a package. When it comes to reliability, ease of use, maintenance, and high performance, there is just one choice - the I-4604. It's the industry's answer to your high performance, high-resolution printing needs. All units ship with product documentation.

Information:	Datamax warranty \| Download Datamax I-4604 drivers \| Specifications \| Cable example images \| Ask a question \| Request a quote \|
Supplies:	Datamax Labels \| Datamax Ribbons \| Datamax I-4604 Printheads \|

View I-4604 Accessories

Part #	Description	Availability	Price
R46-00-18000007	I-4604, Direct thermal & thermal transfer, 600 dpi, 6 ips, 4.16" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.	11	$3222.50
R46-00-18000Y07	I-4604, Direct thermal & thermal transfer, 600 dpi, 4 ips, 4.16" print width, ethernet, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes US power cord. Order cables separately. See accessories.	3	$3660.40
R46-00-18400007	I-4604, Direct thermal & thermal transfer, 600 dpi, 4 ips, 4.16" print width, parallel & serial interfaces, 16MB DRAM, 2MB flash. Includes internal rewinder & US power cord. Order cables separately. See accessories.	3	$3304.40
R46-00-18000U07	I-4604, Direct thermal & thermal transfer, 600 dpi, 4.1 inch Print width, 8 ips Print speed, USB Interface and Coated Side In.	3	$3420.70
R46-00-08400Y07	I-4604, 4", Direct thermal, 600 dpi, INT REW, DMXNET, 4 ips, US POWER	2	$3622.60

Accessories

Part #	Description	Availability	Price
PCM-1970-06	Serial printer cable, 9-pin to 25-pin, 6 ft.	400+	$11.90
PCM-1100-06	Parallel printer cable, 6 ft. Parallel printer cable.	400+	$12.50
USB-5000-02M	USB printer cable, 6 ft. USB cable (USB 2.0, A to B).	400+	$11.60
DPO78-2278-01	External Ethernet, for all Datamax printers	70	$359.70
USB-5000-03M	USB printer cable, 10 ft. USB cable (USB 2.0, A to B).	356	$11.60
78-2394-01	External Rewinder, up to 4.5 inch label width. Includes US Power supply.	21	$376.60
20-2262-01	Original Printhead (203 dpi) for the I-Class Printer	19	$320.10
16-2567-01	Window cover, for I-Class printers	112	$13.10
78-2295-01	Standard cutter Kit	9	$579.70
DPO78-2295-01	Kit, Standard cutter kit, 10 ML, for all I-Class printers	9	$579.70
DPO78-2444-01	Peel-and-Present mechanism, for I-Class series printers, Requires rewind	22	$143.70
DPO78-2302-01	Internal rewinder, for I-Class printers	22	$147.40
78-2444-01	Peel-and-Present for I-Class printers	19	$143.70
DPO78-2300-01	Thermal Transfer option, Coated side in, for I-Class printers	25	$76.20
15-2785-01	Cabinet cover with window for I-class printer	28	$60.00
78-2302-01	Internal Rewind	12	$147.40
DPO15-3051-01	Printhead assembly, 203 dpi, No printhead, for I-Class printers	7	$88.50
15-2761-04	Platen roller assembly, Package of 2, for I-Class printers	20	$60.30
DPO15-2761-04	Platen Roller for I-class Printers, 2/Pack	16	$65.20
24-2504-01	Media Sensor Assembly (2-Pack) for the I-Class Printers	14	$58.20
78-2300-01	Thermal Transfer option, Field installable, for I-Series printers	9	$76.20
DPO78-2388-01	USB interface, for I- and W- Class printers	4	$102.40
DPO130063	Power code for I-class Power supply	13	$12.80
DPO24-2504-01	Media sensor, 2-pack, For I-Class printers	8	$78.90
PCM-1900-06	Serial printer cable, 25-pin to 25-pin, 6 ft.	12	$11.90
DPO78-2256-02	I/O expansion board, GPIO realtime clock (RTC), 8MB, for I-Class printers	5	$111.30
15-2814-01	Center plate assembly, for I-Class printers	4	$138.80
12-2943-01	Cover plate for the 4308 printer	9	$18.60
15-3051-01	Printhead Assembly (without Printhead) for the I-Class Printers	5	$88.50
DPO78-2321-01	Font expansion board, 8 MB, for I-Class printers	4	$111.30
16-2627-01	Media hub adapter for I-class printers, 3"	8	$23.60
DPO78-2300-02	Thermal Transfer option, Coated side out, for I-Class printers	5	$76.20
DPO11-5339-01	Media retainer clips, 2 per pack, for Datamax I-Class printers	7	$21.30
16-2634-01	Media guide, for I-Series printers	7	$11.30
DPO16-3006-01	Button control panel for I-Class Printers	6	$16.70
DPO78-2406-01	Fixed media hanger, for I-Class printers	5	$18.80
DPO78-2570-01	PS2 keyboard, serial adapter cable, for I-Class	4	$77.90
UTP1400-10G	Ethernet printer cable, 10 ft. Ethernet printer cable with snagless RJ45 boots. Color: Green. Required for connecting Ethernet-enabled printers to a network.	4	$12.00
DPO10-2903-02	M4 x 8 Triobal Screw for I-Class	4	$19.60
DPO78-2293-01	Present Sensor for I- Class Printer	2	$67.10
78-2331-01	Tray for cutters	2	$64.30
12-2896-01	Platen retainer bracket, for I-Class printers	2	$18.50
12-3356-01	14-tooth gear, for I-Class printers	2	$21.70
15-2872-01	Retainer Assembly (Media) for I-Class Printers	2	$28.60
16-2786-01	Bracket, rewind for I-class	2	$16.40
11-5206-01	Ethernet cover plate for I-4208 printer	2	$13.30
78-2278-01	This part is replaced by DPO78-2278-01. External Ethernet (10BASE-T) adapter - Plugs into parallel port on printer	20	$376.60
78-2321-01	8 MB Font Expansion Kit	2	$111.30
78-2305-02	COAX Interface Kit, W and I Class	3	$873.20
16-2564-01	Block, Front panel, for I-Class printers	3	$18.50
16-2890-01	Gear, Platen, for I-Class Datamax printers	3	$10.70
DPO15-3052-01	Printhead latch, for I-Class printers	3	$44.80
DPO17-2810-01	Gear, Spur, Delrin, 48 teeth, for I-Class printers	3	$25.20
DPO24-2527-01	Sensor assembly for I-Class printers	3	$69.50
DPO78-2305-01	Twinax board, for I-Class printers	3	$873.20
DPO78-2331-01	Cutter tray, for I-Class printers	3	$64.30
78-2300-02	Coated side out assembly for I-Class printers	3	$76.20
DPO16-2364-01	Datamax media spindle guide.	3	$15.30
DPO24-2528-01	Cutter Mechanism Assembly for I-Class	3	$515.10
73-2344-01	Accessories with Foam (I-Class)	3	$14.00
DPO51-2308-00	Power supply (Autoranging) for the I-Class Printers	3	$439.90
78-2316-01	Light Duty Cutter (No Tray) for the I Series (up to 5 mil)	3	$434.80
78-2293-01	Present Sensor for I Series	3	$80.60
78-2330-01	Media Hub, Revolving, 3 inch, For the I-Series Printers	3	$67.10
DPO24-2543-02	Drive Motor Assembly for I- class Printer	3	$71.10
12-3202-01	Shaft-Pinch Roller (for the I-Class Printer)	3	$14.00
15-2959-01	Peel Mechanism (for the I-Class Printers)	3	$134.00
16-2349-02	Roller CLAMO (for the I-Class Printer)	3	$10.70
16-2620-01	Control Panel Button (for the I-Class Printers)	3	$11.70
16-2802-01	CAP-CAM (10-Pack) for the I-Class	3	$25.80
16-2869-01	Mount Pinch Roller (for the I-Class Printer)	3	$11.30
16-3006-01	Button (Control Panel) for the I-Class	3	$11.80
17-3028-01	Flanged Bearing (2-Pack) for the I-Class Printers	3	$18.80
24-2567-01	Card Cage Assembly (for the I-Class)	3	$113.40
24-2567-02	Card Cage (with Serial) for the I-Class	3	$203.30
78-2316-02	Light Duty Cutter (with Scanner Modification) for I-Class Printers with a Scanner	3	$434.80
78-2517-03	Simplified Chinese Font Kit (Includes Flash-Font Expansion) for the I-Class Printers	3	$150.90
78-2576-01	Maintenance Manual (for the I-Class Printers)	3	$80.60
51-2278-02	Main Logic Board (for the I-4208)	3	$439.90
51-2284-00	Font Card (8MB) for the I-Class CCA	3	$134.00
51-2422-00	CCA, GPIO/Flash/RTC I and W, RoHS	3	$158.40
78-2747-10	W/LAN Upgrade (for the I-4208)	3	$569.80
78-2332-01	RS-422 Interface Option for the W-Class and I-Class Printers	3	$67.10
78-2494-01	DMXRFNet Interface Option (for I-Class)	3	$716.70
78-2305-01	TWINAX Interface Kit, W and I Class	0	Call for Details
12-2894-01	Mounting block for platen for I-class.	0	Call for Details

View 76 More Configurations
