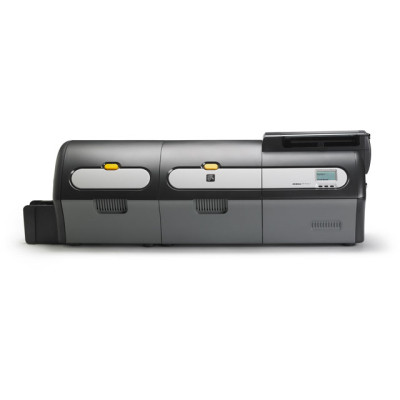

Zebra ZXP Series 7

Zebra ZXP Series 7

Zebra ZXP Series 7

The fast and reliable ZXP Series 7 prints photo-like ID cards for high-volume applications. Utilizing the latest in Zebra card-printing technology, the ZXP Series 7 card printer provides high-volume, high-quality card printing.
Starting at: MSRP: $9,017.40 Price: $2,014.63
See all options
Zebra ZXP Series 7 Specs Zebra ZXP Series 7 Specs (pdf) Zebra ZXP Series 7 Driver Zebra ZXP Series 7 Driver (download)

More Standard Features

  • 300 dpi/11.8 dots per mm print resolution
  • USB 2.0 and Ethernet 10/100 connectivity
  • Microsoft® Windows-certified drivers
  • 10-50 mil auto-adjusting card feeder
  • 200-card capacity feeder (30 mil)
  • 15-card reject hopper (30 mil)
  • 100-card output hopper (30 mil)
  • Manual card feed capability
  • 21-character x 6-line LCD operator display with configurable soft keys
  • Kensington® physical lock slot
  • Two-year unlimited warranty on printer and printhead

Optional Features

  • Single and dual-sided laminator
  • Lockable enclosures and card feeder
  • Extended product warranty programs

Encoding Options

  • High and low coercivity magnetic stripe encoder
  • Combined MIFARE® ISO 14443 A & B contactless and ISO 7816 Contact Encoder
  • ISO 7816 Smart Card Contact Station for third party external contact encoders

Printing and laminating specifications

  • Color dye sublimation or monochrome thermal transfer printing
  • Single- and dual-sided printing
  • Edge-to-edge printing on standard CR-80 media
  • Simultaneous printing, encoding, and laminating capability
  • One-pass single- and dual-sided wasteless lamination
  • 1375 cards/hour monochrome single-sided or 555 cards/hour dual-sided printing
  • 300 cards/hour full-color YMCKO single-sided printing
  • 225 cards/hour full-color YMCKOK dual-sided printing
  • 270 cards/hour full-color YMCK single-sided printing with lamination
  • 200 cards/hour full-color YMCKK dual-sided printing with lamination

Supplies Specifications

True Colours® ix Series™ ribbons:

  • YMCKO: 250 or 750 images/roll
  • YMCKOK: 250 or 750 images/roll
  • YMCUvK: 750 images/roll
  • Black monochrome: 2500 or 5000 images/roll
  • White monochrome: 2500 images/roll

True Secure™ i series laminates:

  • Linerless waste-free 1.0 mil top and bottom laminate: 750 images/roll
  • Laminate types: clear, magnetic stripe, magnetic stripe with signature panel, smart card, and holographic wallpaper designs
  • Custom laminates with registered or wallpaper holographic images available
  • Card cleaning rollers are included with each ribbon carton
  • Specially designed cleaning supplies simplify preventative maintenance

NOTE: For optimum print quality and printer performance, use of Zebra genuine supplies is recommended.

Card specifications/compatibility

  • Card Thickness: 10 – 50 mil (0.25 – 1.27mm)
  • Card Thickness for lamination: 30 mil (0.76 mm) only
  • Card Size: CR-80, ISO 7810 format, Type ID-1
  • Card Material: PVC and composite, PET, PET-G, PET-F, and Teslin® composite
  • Technology Cards: contact and contactless smart cards
  • Specialty cards: adhesive backed, transparent (IR-blocked), signature panel, and select key-tag types

Operating Characteristics

  • Operating Temperature: 59º F/15ºC to 95º F/35ºC
  • Storage Temperature: 23º F/-5ºC to 158º F/70ºC
  • Operating Humidity: 20% to 80% inclusive, non-condensing
  • Storage Humidity: 10% to 90% inclusive, non-condensing
  • Media should not be above 140º F/60º C for longer than 200 hours, and above 90% relative humidity at 104º F/40º C for longer than 100 hours

Electrical Specifications

  • Auto-switching single-phase AC power
  • 90V~264V AC and 47–63Hz (50-60Hz nominal)
  • FCC Class A
  • Energy Star compliant

Physical Characteristics

  • Height: 12.0" (306mm)
  • Width (printer only): 27.5" (699mm)
  • Width (printer with laminator): 38.0" (964mm)
  • Depth: 10.9" (277mm)
  • Weight (printer only): 26.9 lbs (12.2 kg)
  • Weight (printer with laminator): 39.5 lbs (17.9 kg)

Software

  • ZMotif SDK support and sample code
  • Microsoft Windows-certified printer drivers with Toolbox utility features: Windows 7, Windows Vista®, Windows Server® 2008
  •  (all 32- and 64-bit-compatible), and Windows XP, Server 2003 (both 32-bit-compatible)
  • CardStudio card design and issuance software with Direct-to-Print (D2P) driver technology support
  • Zebra Virtual PrintWare software support
