- Thermal transfer printing
- 203 dpi print resolution
- Construction: ABS double-walled casing
- 512KB Flash memory, 256KB SRAM
- OpenACCESS design
- Serial, parallel, and USB interfaces
- Head-up sensor
- Windows drivers (95, 98, Me, NT v.4.0, 2000)
- Windows printer utilities
Zebra TLP 2844 Specs
Zebra TLP 2844 Driver
Overview

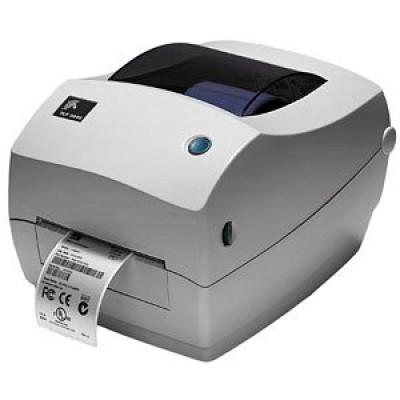

The thermal transfer TLP 2844 bar code label printer is ideal
for applications requiring a space-saving, desktop-size, 4.09" (104
mm) printer. This user-friendly printer delivers optimal
performance in today's on-demand desktop labeling applications. The
TLP 2844 has a sturdy construction with a double-walled ABS
casing.
The TLP 2844 integrates easily into a variety of printing
applications, including shipping and receiving, warehouse shelf
labeling and inventory control, hospitals, healthcare, and medical
laboratories, transportation and logistics, and e-commerce postage.
Serial, parallel, and USB interfaces, and an optional internal
Ethernet (ZebraNet PrintServer II), make this flexible, reliable,
and affordable printer a smart investment.
Benefits
- Sturdy construction
- User-friendly
- Seamless application integration
Ideal for
- Healthcare
- Inventory Management
- Shipping
- Receiving
Specifications
Standard Features
-
- Print methods: Direct thermal/thermal transfer (TLP)
- Construction: ABS double-walled casing
- OpenACCESS� design
- Head-up sensor
- Windows� drivers (95, 98, Me, NT4.0, NT2000, XP)
- Windows printer utilities
- Print methods: Direct thermal/thermal transfer (TLP)
Printer Specifications
- Resolution
- 200 dpi (8 dots/mm)
- Memory
-
- Standard: 256 KB SRAM; 512 KB Flash
- Optional: 512 KB SRAM; 1 MB Flash
- Standard: 256 KB SRAM; 512 KB Flash
- Print width
- 4.09" (104 mm) maximum
- Print length
-
- 11" (279 mm) with standard memory
- 22" (584 mm) with expanded memory
- 11" (279 mm) with standard memory
- Print speed
- 4" (102 mm)/sec
- Media sensors
- Reflective
Transmissive
Media Characteristics
- Maximum label and liner width
- 4.25" (108 mm)
2.8" (71 mm) with Media Adapter Guide
- Maximum label and liner length
-
- 11" (279 mm) (with standard memory)
- Line Mode: Unlimited
- 11" (279 mm) (with standard memory)
- Maximum label and liner length (optional)
- EPL2: 22" (558 mm)
Line Mode: unlimited
- Maximum roll diameter
- 5" (127 mm)
- Core diameter
- 1.0" (25.4 mm) and 1.5" (38 mm)
- Media thickness
- 0.003" (.075 mm) to 0.007" (0.18 mm)
- Media types
- fanfold, roll-fed, tag stock, die-cut, continuous, continuous receipt, linerless
Ribbon Characteristics
- Outside diameter
- 1.34" (34 mm)
- Standard length
- 244' (74 m)
- Ratio
- 1:1 media roll to ribbon ratios
- Ribbon width
-
- Recommended to be at least as wide as media
- 1.33" (33.8 mm) to 4.30" (110 mm)
- Recommended to be at least as wide as media
- Ribbon setup
- Ribbon wound ink side out
- ID Core
- 0.5" (12.7 mm)
Operating Characteristics
- Operating temperature
- TT: Operating
temperature 40° F (5° C) to 105° F (41° C) Thermal
transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal
- Storage temperatures
- -40° F (-40° C) to 140° F (60° C)
- Operating humidity
- 10-90% non-condensing R.H.
- Storage humidity
- 5-95% non-condensing R.H.
- Electrical
-
- Autoranging external power supply with C7 type
connector
- Output: 20 VDC, 2.5 A
- Input: 100-200 VAC, 50-60 Hz
- Autoranging external power supply with C7 type
connector
- Agency approvals
-
- UL
- FCC
- VCCI/PSE
- C-TICK
- CAS
- NOM
- CE
- IRAM/S
- CCC/SRRC
- GOST-R
- BSMI
- UL
Physical Characteristics
- Width
- 7.9" (201 mm)
- Height
- 6.8" (173 mm)
- Depth
- 9.75" (248 mm)
- Weight
- 3.2 lbs (1.5 kg)
- Shipping weight
- 5.8 lbs (2.6 kg)
Related Products
- Options
-
- Cutter
- Real time clock
- ZebraNet PrintServer II for Ethernet connectivity (Internal and
External available)
- Dispenser with label taken sensor
- Asian Font Set
- Cutter
- Communication and Interface Capabilities
-
- Serial RS-232 (DB9)
- Parallel (Centronics)
- USB
- Optional internal Ethernet (ZebraNet PrintServer II)
- Serial RS-232 (DB9)
Programming Languages
- Core programming languages
- EPL2, Line Mode
Bar codes/Symbologies
- Linear
- Code 39
Code 128 with subsets A/B/C
Code 93
Codabar
Interleaved 2-of-5
UPC-E
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
EAN-13
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
Postnet
Plessey
German Post Code
RSS-14
MSI-3
- 2-dimensional
- MaxiCode
MicroPDF417
MacroPDF417
QR Code (requires Asian version printer)
Data Matrix
- Fonts and Graphics
-
- Standard Fonts: 5 bitmapped, expandable 8x
- Soft font storage in Flash memory
- DOS Code Pages Supported: 437, 850, 851, 852, 855, 857, 860,
861, 862, 863, 865, 866, 869, 737
- Windows Code Pages Supported: 1250, 1251, 1252, 1253, 1254, 1255, 1256, 1257
- Standard Fonts: 5 bitmapped, expandable 8x
