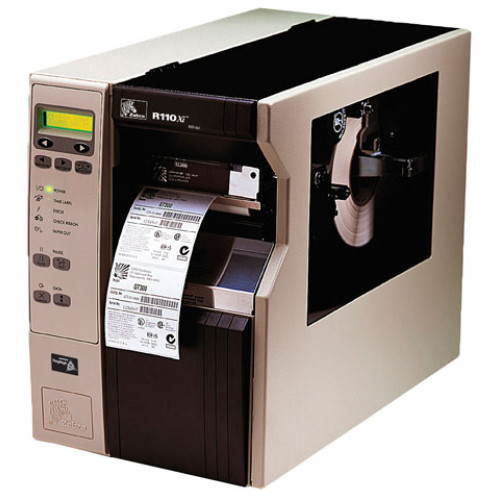

Zebra R110xi RFID Printer

Zebra R110xi RFID Printer

The R110Xi is a premier Zebra printer/encoder that combines two key functions for companies that need to comply with today's RFID mandates - printing standard barcode labels and encoding data into a passive RFID transponder embedded in the label. The R110Xi combines the strengths of the Xi platform with the versatility of the ThingMagic RFID reader module. This reader module offers the flexibility needed to guarantee a simple, cost-free upgrade path to Gen2 protocols. It conforms to multiple protocols (EPC Class 1, EPC Class 0, Matrics 0+, ISO18000-06, and Philips UCODE 1.19), is firmware upgradeable to EPC Global's Gen2 protocol, and gives users the assurance that they can seamlessly upgrade to future RFID protocols. The R110Xi features other innovations such as automatic inlay position calibration, multiple power levels, and label statistics tracking.
Discontinued - Need Assistance
See all options
  • Fully integrated ThingMagic UHF RFID Reader/Encoder
  • Multiple RFID power settings allow users to adjust the RF power in response to various protocols, transponder designs and sizes
  • RFID calibration feature with automatic program position selection for optimal transponder placement
  • Track good and unusable labels
  • XML-enabled printing


Standard Features

  • Fully integrated ThingMagic UHF RFID Reader/Encoder for transponder types:
    • EPC Class 1
    • EPC Class 0
    • Matrics’ 0+
    • SO18000-06B
  • EPC “Gen2” via firmware update
  • RFID processes optimized for fastest label throughput
  • New RFID ZPL commands allow ease of RFID set-up with maximum flexibility
  • Program position allows users to place transponders virtually anywhere within a smart label
  • RFID calibration feature automatically selects the program position for optimal transponder placement
  • RFID counters keep track of the good and bad labels
  • Variable RFID power settings for both read and write allows maximum flexibility for printing small labels
  • Full function front panel and multilingual backlit LCD display with user-programmable password protection
  • ZebraLink™, WebView, (requires optional ZebraNet ® PrintServer II) and Alert (requires optional ZebraNet PrintServer II)
  • Thin film printhead with E3® Element Energy Control
  • Thermal transfer and thermal direct printing of bar codes, text, and graphics
  • XML Enabled Printing
  • 32 bit 133 MHz RISC processor
  • Type I, II linear memory up to 32 MB and future availability of Type III Series PC Card Interface
  • Clear media side door—easy monitoring of supplies usage without opening the printer systems
  • Zebra printer driver for Windows™ 3.X and 95/98/NT/2000 operating systems
  • Internal real-time clock
  • Auto calibration—printer calibrates when printer is turned on or when printhead is closed with approximately two labels
  • Early Warning Systems for low label, low ribbon, and clean printhead alerts



Operating Characteristics

 Environmental (Thermal Transfer)
Operating temperature:
Thermal transfer = 41ºF to 104ºF (5ºC to 40ºC)
Thermal direct = 32ºF to 104ºF (0ºC to 40ºC)
Storage temperature: -40ºF to 140ºF (-40ºC to 60ºC)
Operating humidity: 20% to 85% non-condensing R.H.
Storage humidity: 5% to 85% non-condensing R.H.

Electrical
Universal power supply with power-factor correction 90-264 VAC, 48 – 62 Hz

Agency approvals
Bi-National UL 60950 3rd edition/CSA
CAN/CSA-C22.2 No. 60950-00 Third Edition;
FCC Part 15.107 & 15.109 Class B; FCC Part
15.247; Canadian ICES-003, Class B;
IC RSS-210

Connectivity
High-speed serial interface
High-speed bi-directional, IEEE 1284-1994
parallel interface
RS-232C with DB9F connector
USB 2.0 port

Programming Languages

Core programming languages
ZPL ® and ZPLII® -- Universal language for Zebra printers
ZBI™ -- Controls and interprets text and data from peripherals and non-ZPL printer programming languages. Transmits captured data over LAN or WAN via e-mail or TCP/IP messaging.

Bar codes/Symbologies

Linear

Code 11 UPC-A UPC-E
Code 39 EAN-8 EAN-13
Code 93 Plessey Postnet
Code 128 with subsets A/B/C and UCC Case Codes Interleaved 2-of-5 EAN and UPC with 2 or 5 digital extensions
Codabar Standard 2-of-5 MSI
ISBT 128 Industrial 2-of-5 LOGMARS
Planet Code

2-Dimensional Codes

Codablock PDF417 Code 49
Maxi Code Data Matrix QR Code
MicroPDF TLC 39

Fonts and Graphics
Bitmap fonts A through H and GS symbols are expandable up to 10 times, height and width independent
Smooth scalable font Ø (CG Triumvirate Bold Condensed) is expandable dot-by-dot, height and width independent
Sets: IBM Code Page 850 International Characters
Contains USFT® from Agfa Monotype Corporation

Graphics Features
Supports user-defined fonts and graphics – including custom logos

Options and Accessories

  • ZebraNet PrintServer II
  • ZebraNet 10/100 Print Server
  • ZebraNet Wireless Print Server
  • Additional fonts
  • RS-422/485 multi-drop (optional adaptor)
  • Applicator interface
  • IBM Twinax interface
  • IBM Coax interface
  • BAR-ONE ® software
  • Media supply spindle
  • Media rewind spindle
  • Linear PCMCIA cards
  • ATA-Style PCMCIA cards or Compact Flash (CF) cards
Extended Details
Refine Your Options
  1. Zebra R110xi RFID Printer
    Part #: R16-8K1-00111-R0 | SKU: ZEB223163

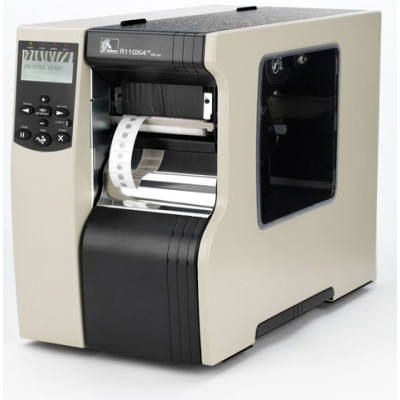

    R110Xi4, RFID Printer-Encoder (600 dpi, Serial, Parallel, USB, Internal ZebraNet 10/100 PrintServer, 802.11b/g, Tray, 3 inch Spindle)
  2. Zebra R110xi RFID Printer
    Part #: R13-801-00003-R0 | SKU: ZEB223162

    R110Xi4, RFID Printer-Encoder (300 dpi, Serial, Parallel, USB, Internal ZebraNet 10/100 PrintServer, Bifold, US/CAN/PR)
  3. Zebra R110xi RFID Printer
    Part #: R12-7A1-00003 | SKU: ZEB15069

    Zebra R110Xi RFID Printer - Monochrome - 10 in/s Mono - 200 dpi - Serial, USB
  4. Zebra R110xi RFID Printer
    Part #: R13-761-00000 | SKU: ZEB15072

    R110xi, Thermal transfer, RFID, 300 dpi, Serial, ZebraNet PrintServer II 10Base-T, USB and Applicator Interface Port, US Power supply, 16MB SDRAM, Clear Media Side Door and Media Hanger. Order cables separately, see accessories.
  5. Zebra R110xi RFID Printer
    Part #: R13-7A1-00000 | SKU: ZEB15073

    Thermal transfer & direct thermal, RFID, 300 dpi, Serial, ZebraNet 10/100 PrintServer and USB Interfaces, US Power Supply, 16MB SDRAM, Clear Media Side Door and Media Hanger. Order cables separately, see accessories.
  6. Zebra R110xi RFID Printer
    Part #: R16-7A1-00000 | SKU: ZEB55168

    R110xi, RFID Printer-Encoder (Multi-Protocol RFID Reader, 600 dpi, Serial, Internal ZebraNet 10/100 PrintServer, 120 VAC Cord-NA, 16MB DRAM, Clear Media Side Door and Media Hanger)
  7. Zebra R110xi RFID Printer
    Part #: R12-7A1-00201 | SKU: ZEB81419

    R110xi, RFID Printer-Encoder (Multi-Protocol RFID Reader, 200 dpi, Serial, Internal ZebraNet 10/100 PrintServer and USB Interfaces, 120 VAC Cord-NA, Rewind with Peel, 16MB SDRAM, ZPL II, XML, Clear Media Side Door and 3-Inch Media Supply Spindle)
  8. Zebra R110xi RFID Printer
    Part #: R12-7H1-00000 | SKU: ZEB81420

    Zebra R110Xi Direct Thermal/Thermal Transfer Printer - Monochrome - RFID Label Print - Ethernet - USB - Serial - RFID - Real Time Clock - 4" Print Width - 10 in/s Mono - 203 dpi - Wireless LAN - Die-cut Label, Continuous Form, Black Mark - 4.49" Label Width - 39" Label Length
  9. Zebra R110xi RFID Printer
    Part #: R12-7A9-00000 | SKU: ZEB85476

    R110xi, RFID Printer-Encoder (200 dpi, megapixel RFID Reader, Chinese)
  10. Zebra R110xi RFID Printer
    Part #: H12-741-00000 | SKU: ZEB29815

    R110xi, 200 dpi, HF, 10BT, Serial and USB interface, Power supply
