model-7614 model-7614 model-7614 Zebra

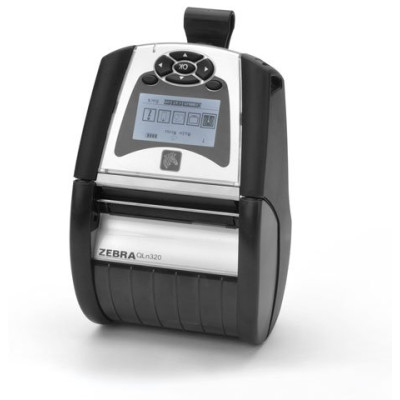

QLn320

QLn320

Boost productivity and print anywhere with drop-resistant mobile printers that offer high-quality printing, easy integration, proactive alerts and convenient charging. Trust these mobile printers to improve efficiencies throughout operations–in the warehouse, shipping and receiving and merchandising. Quickly and easily print barcode labels, receipts, tickets and more, on-site and on-demand.
Call For Price
See all options
  • Direct thermal printing technology
  • 203 dpi resolution (8 dots/mm)
  • Print speed: up to 4 ips
  • Apple iOS, Android, Windows Mobile and BlackBerry connectivity
  • CPCL, EPL and ZPL programming languages
  • 256 MB Flash supports downloadable programs, receipt formats, fonts and graphics
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing
  • Black mark and gap media sensing
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing
  • "Clamshell"

Standard Features

  • Direct thermal printing technology
  • 203 dpi resolution (8 dots/mm)
  • Print speed: up to 4 ips (100 mm/s)

More Standard Features
  • CPCL and ZPL programming languages
  • Resident fixed and scalable fonts
  • 400 MHz 32-bit ARM processor with 128 MB RAM
    256 MB Flash
  • Serial and USB ports
  • 2.45 AH removable Li-Ion smart battery
  • Easy to use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy receipt dispensing
  • Management: Mirror, SNMP, Web server (with customizable HTML pages), Wavelink Avalanche
  • Large, easy to read LCD control panel 240 x 128 pixels
  • 5-way navigation buttons, two software defined keys
  • Printer alerts on the display, help menus
  • Tolerance of multiple drops from 5' (1.52m) to concrete
  • Label odometer
  • Real Time Clock
  • Link-OS environment capable
  • Linered media support with 0.75" inner core

Printer Specifications
Resolution: 200 dpi (8 dots/mm)

Memory
  • 128 MB RAM
  • 256 MB Flash
Print width: 1.9" (48 mm)
Print length: 32" (813 mm)
Print speed: up to 4 ips (100 mm/s)
Optional Features
  • Linerless silicone platen with 1.375" inner core
  • BT 3.0
  • 802.11 a/b/n with BT 3.0
  • 10/100 Ethernet support (via docking cable)
  • 4300 mAh (nominal) removable extended capacity Li-ion smart battery
  • ZBI 2.x

Media Characteristics
  • Maximum label and liner width: 2.18" (55.4 mm)
  • Minimum label and liner width: .63" (16 mm)
  • Maximum label and liner length: 32" (813 mm)
  • Maximum roll diameter: 2.2" (55.9 mm)
  • Core diameter: .75" (19 mm) or 1.375" (34.9 mm)
  • Media thickness: 2.3 mil to 5.5 mil
  • Media types: black mark,gap

Programming Lanuages
  • Core programming languages: CPCL and ZPL

Operating Characteristics
  • Operating temperature: -4F (-20C) to 122F (50C)
  • Storage temperatures: -13F (-25C) to 158F (65C)
  • Operating humidity: 10% to 90% non-condensing
  • Storage humidity: 10% to 90% non-condensing
  • Electrical DC charging input: 12 VDC x 10% at 2A maximum
  • Removable, rechargeable Li-ion battery
  • 2.45AH
  • 7.4V
Agency approvals
  • FCC Part 15, Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B
  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • CE
  • UL
  • TUV
  • CSA

Physical Characteristics
Height: 2.75" (70 mm)
Depth: 6.5" (165 mm)
Weight: 1.25 lbs (.57 kg)
Communication and Interface Capabilities
  • 802.11 a/b/n with BT 3.0
  • Bluetooth 3.0
  • 10/100 Ethernet support (via docking cradle)
  • USB 2.0 Full Speed Interface (12 Mbps) with mini-B connector
  • Serial interface: 14-pin RS-232C

Bar Codes/Symbologies
Linear Code 39
Code 93
UCC/EAN-128
Code 128
Codabar
Interleaved 2-of-5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 and EAN-13 with 2 or 5 digit extensions
UPC-A and UPC-E with 2 or 5 digit extensions
2-dimensional PDF417
MicroPDF417
MaxiCode
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Data Matrix
TLC 39
Extended Details
Refine Your Options
Shop By
  1. Zebra QLn320 (QN3-AUCA0MB0-00)

    Zebra QLn320 Direct Thermal Printer - Monochrome - Portable - Label Print - Ethernet - USB - Serial - Battery Included - Real Time Clock - Peel Facility - 2.90" Print Width - 3 in/s Mono - 203 dpi - Linered Label, Black Mark, Gap, Roll Fed, Direct Thermal Label, Label, Receipt, Die-cut Label, Fanfold, Linerless, Ticket, ... - 3.13" Label Width - 32" Label Length
  2. Zebra QLn320 (QN3-AUNA0MB0-00)

    Zebra QLn320 Direct Thermal Printer - Monochrome - Portable - Label Print - 32" Print Length - 2.90" Print Width - 4 in/s Mono - 203 dpi - Wireless LAN - Direct Thermal Label, Linered Media, Black Mark, Gap, Roll Fed, Die-cut Label, Receipt, Black Bar - 3.13" Label Width - 32" Label Length
  3. Zebra QLn320 (QN3-AUCB0MB0-00)

    Direct Thermal/Linerless printer, Bluetooth/MFi/Ethernet interfaces, 1.375 core, Battery.
  4. Zebra QLn320 (QN3-AU1A0M00-00)

    Zebra QLN320 Direct Thermal Printer - Monochrome - Portable - Label Print - USB - Serial - Battery Included - Real Time Clock - Peel Facility - 2.90" Print Width - 4 in/s Mono - 203 dpi - Linerless, Black Mark, Gap, Roll Fed, Direct Thermal Label, Label - 3.10" Label Width - 32" Label Length
  5. Zebra QLn320 (QN3-AUCA0M00-00)

    Zebra QLN320 Direct Thermal Printer - Monochrome - Portable - Label Print - USB - Serial - Battery Included - Real Time Clock - Peel Facility - 2.90" Print Width - 3 in/s Mono - 203 dpi - Linered Label, Black Mark, Gap, Roll Fed, Direct Thermal Label, Label - 3.13" Label Width - 32" Label Length
  6. Zebra QLn320 (QN3-AUNA0M00-00)

    Zebra QLN320 Direct Thermal Printer - Monochrome - Portable - Label Print - USB - Serial - Battery Included - Real Time Clock - Peel Facility - 2.90" Print Width - 4 in/s Mono - 203 dpi - Wireless LAN - Linerless, Black Mark, Gap, Roll Fed, Direct Thermal Label, Label - 3.10" Label Width - 32" Label Length
  7. Zebra QLn320 (QN3-AUNB0M00-00)

    Zebra QLN320 Direct Thermal Printer - Monochrome - Portable - Label Print - Ethernet - USB - Serial - Battery Included - 2.90" Print Width - 3 in/s Mono - 203 dpi - Wireless LAN - Linered Label, Black Mark, Gap, Roll Fed, Direct Thermal Label - 3.13" Label Width - 32" Label Length
