model-12542 model-12542 model-12542 Zebra

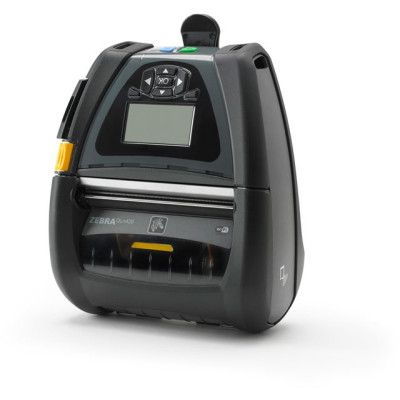

QLn420

QLn420

Zebra"s popular QL family of direct thermal mobile label printers has built a highly satisfied following based upon its proven drop resistant durability, user-friendly, productivity-boosting features, and easy integration.
Starting at: MSRP: $1,321.00 Price: $1,046.34
See all options
  • Direct thermal printing of barcodes, text and graphics
  • 256MB flash supports downloadable programs, receipt formats, fonts, and graphics
  • 5.0Ahr battery
  • Built-in battery charger
  • Black mark and gap media sensing
  • Easy-to-use peel-and-present mode
  • Label-present sensor for issuing labels one at a time
  • Tear bar for easy dispensing
  • Belt clip for unobtrusive and convenient printing
  • Center-loading media locking for variable roll widths
  • Clamshell design for easy media loading
  • Large, easy-to-read LCD control panel 240 x 128 pixels
  • LCD can be customized using WML (text and icons)
  • Five-way navigation buttons, two software defined keys
  • Tolerance of multiple drops from 6'/1829 mm to concrete
  • IP43 dust- and water-resistance rating (IP54 with soft case)
  • Label odometer
  • Real-time clock
  • Optional linerless printing (with silicone platen roller only)

STANDARD FEATURES

  • Direct thermal printing technology
  • 203 dpi resolution (8 dots/mm)
  • Print speed: up to 4 ips (102 mm/s)

More Standard Features
  • Apple® iOS, Android, Windows Mobile and BlackBerry® connectivity
  • CPCL, EPL™ and ZPL® programming languages
  • 256 MB Flash supports downloadable programs, receipt formats, fonts and graphics (64 MB available for user storage)
  • 5.0 AH removable, rechargeable Li-Ion battery
  • Built-in battery charger
  • Belt clip for unobtrusive and convenient printing (not compatible with extended capacity battery)
  • Black mark and gap media sensing using fixed center position sensors
  • Easy-to-use peel and present mode
  • Label present sensor for issuing labels one at a time
  • Tear bar for easy media dispensing
  • Center-loading media locking for variable roll widths
  • “Clamshell” design for easy media loading
  • Management: Mirror, SNMP, Web server, Profile Manager, AirWatch® and Wavelink Avalanche®
  • Large, easy-to-read LCD control panel (240 x 128 pixels)
  • LCD can be customized using WML (text and icons)
  • 5-way navigation buttons, two software defined keys
  • Printer alerts on the display, help menus
  • Tolerance of multiple drops from 6’/1829 mm to concrete
  • IP43 dust- and water-resistance rating (IP54 with soft case)
  • 400 MHz 32-bit ARM processor
  • XML support
  • Supports vertical and horizontal printing
  • Printers can be used in any orientation
  • QR barcode links to web-based help pages
  • Zebra Print Touch simplifies Bluetooth pairing and launches web-based help pages with Near Field Communication (NFC) enabled devices
  • Label odometer
  • Real-time clock

Printer Specifications

Resolution: 203 dpi (8 dots/mm)

Memory

  • 128 MB RAM
  • 256 MB Flash

Max print width: 4.1" (104 mm)
Max print length: 32" (813 mm)
Print speed: up to 4 ips (102 mm/s)


Media Characteristics
  • Maximum label and liner width: 4.4" (112 mm)
  • Minimum label and liner width: 2.0" (51 mm)
  • Maximum label and liner length: 32" (813 mm)
  • Maximum roll diameter: 2.6" (66 mm)
  • Core diameter: .75" (19 mm) or 1.375" (34.9 mm)
  • Media thickness: 3.2 mil to 7.5 mil
  • Media types: Die-cut labels and tags, linerless labels, receipt paper, black bar and gap sensing

Programming Lanuages
  • CPCL, EPL™ and ZPL®

Operating Characteristics
  • Operating temperature: -4° F (-20° C) to 122° F (50° C)
  • Storage temperatures: -13° F (-25° C) to 158° F (65° C)
  • Operating humidity: 10% to 90% non-condensing
  • Storage humidity: 10% to 90% non-condensing
  • Electrical DC charging input: 12 VDC ± 10% at 2A maximum
  • 5.0 AH removable, rechargeable Li-ion battery

Agency approvals
  • FCC Part 15, Subpart B
  • EN55022 Class-B
  • EN60950
  • EN55024
  • VCCI class B
  • EN55024
  • EN61000-4-2
  • EN61000-4-3
  • EN61000-4-4
  • EN61000-4-5
  • CE
  • UL
  • TUV
  • CSA

Physical Characteristics

Height: 7.35" (187 mm)
Width: 6.5" (165 mm)
Depth: 3.25" (82.5 mm)
Weight: 2.45 lbs (1.1 kg) with battery


Communication and Interface Capabilities
  • 802.11 a/b/n with BT 3.0
  • Bluetooth 3.0
  • 10/100 Ethernet support (via docking cradle)
  • USB 2.0 Full Speed Interface (12 Mbps) with mini-B connector
  • Serial interface: 14-pin RS-232C

barcodes/Symbologies

Linear Code 39
Code 93
UCC/EAN-128
Code 128
Codabar
Interleaved 2-of-5
UPC-A
UPC-E
EAN-8
EAN-13
EAN-8 and EAN-13 with 2 or 5 digit extensions
UPC-A and UPC-E with 2 or 5 digit extensions
2-dimensional PDF417
MicroPDF417
MaxiCode
QR Code
RSS / GS1 DataBar family (12 barcodes)
Aztec
Data Matrix
TLC 39

Extended Details
Refine Your Options
Shop By
Shopping Options
Interface Options
  1. Bluetooth (2)
  2. Ethernet (2)
  3. USB (2)
  4. Wireless (1)
Included Features
  1. CPCL (2)
  2. EPL (2)
  3. ZPL (2)
  1. Zebra QLn420 (QN4-AUNA0M00-00)

    Zebra QLn420 Direct Thermal Printer - Monochrome - Portable - Label Print - USB - Serial - Battery Included - Real Time Clock - Peel Facility - 4.10" Print Width - 4 in/s Mono - 203 dpi - Wireless LAN - Receipt, Label, Ticket, Tag, Die-cut Label, Roll Fed, Linered Media, Black Bar, Black Mark - 4.41" Label Width
    MSRP: $1,321.00 Price: $1,046.34
    Discontinued but Available for Purchase
  2. Zebra QLn420 (QN4-AUNALM00-00)

    Zebra QLn420 Direct Thermal Printer - Monochrome - Portable - Label Print - USB - Serial - Real Time Clock - Peel Facility - 2.90" Print Width - 4 in/s Mono - 203 dpi - Wireless LAN - Receipt, Label, Direct Thermal Label, Gap, Black Mark, Die-cut Label, Roll Fed, Fanfold, Black Bar, Linerless, Ticket, ... - 4.40" Label Width - 32" Label Length
  3. Zebra QLn420 (QN4-AUCA0M00-00)

    Zebra QLn420 Direct Thermal Printer - Monochrome - Portable - Label Print - USB - Serial - Battery Included - Real Time Clock - Peel Facility - 4.10" Print Width - 4 in/s Mono - 203 dpi - Receipt, Label, Ticket, Tag, Die-cut Label, Roll Fed, Linered Media, Black Bar, Black Mark - 4.41" Label Width
  4. Zebra QLn420 (QN4-AUCB0M00-00)

    Zebra QLn420 Direct Thermal Printer - Monochrome - Portable - Label Print - Ethernet - USB - Serial - 2.90" Print Width - 4 in/s Mono - 203 dpi - Receipt, Label, Direct Thermal Label, Gap, Black Mark, Die-cut Label, Roll Fed, Fanfold, Black Bar, Ticket, Continuous Form, ... - 4.40" Label Width - 32" Label Length
  5. Zebra QLn420 (QN4-AUNB0M00-00)

    Zebra QLn420 Direct Thermal Printer - Monochrome - Portable - Label/Receipt Print - Ethernet - USB - Serial - Battery Included - 4.10" Print Width - 4.02 in/s Mono - 203 dpi - Wireless LAN - Die-cut Label, Tag, Linerless, Receipt, Black Bar, Gap - 4.40" Label Width - 32" Label Length
