21548 21548 21548 Zebra
Zebra Fixed Barcode Scanner Zebra Fixed Barcode Scanner Zebra Fixed Barcode Scanner Zebra Fixed Barcode Scanner

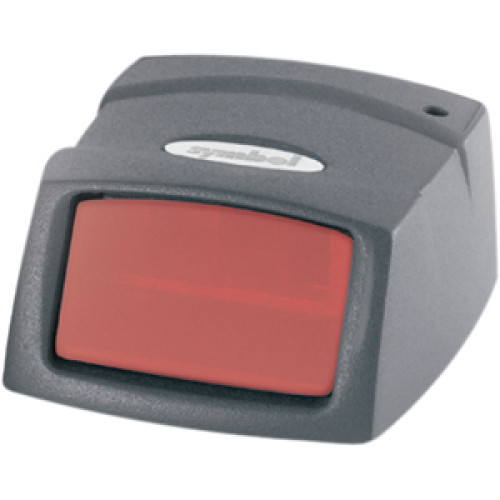

Zebra Fixed Barcode Scanner
Part #: MS-954-I000R | SKU: ZEB21548

The MS954 is a compact, durable, fixed-mount scanner that provides high performance linear scanning on all types of 1D bar codes, including poorly printed and low contrast symbols. The MS954 offers a configurable scan angle of 47 and 35 for OEM devices requiring a flexible, expanded working range. As one of the smallest, lightest and brightest fixed-mount scanners available today, the MS954 is ideal for accurate automated data collection in OEM device designs with space constraints, such as kiosks and ATMs, clinical diagnostic equipment, medical instruments, gaming devices and turnstiles/access control.

Zebra Fixed Barcode Scanner

Part Details: Fixed Mount Scanner - Symbol MS954 - RS-232 Serial - General Purpose - 1D Laser - Class 2 - Standard Laser SL - No USB -
InStock
Need a different version of the Symbol MS954 Fixed Barcode Scanner? View all 1 configurations
MSRP: $321.79 Price: $262.99
In Stock

Additional Information

Manufacturer AIDC Zebra
Model Name MS954
Scanner Capability 1D
Scanner Type Laser
Zebra MS954 Specs Zebra MS954 Specs (pdf)

Technical Information

  • Barcode Dimension: 1D
  • Scan Pattern: Linear
  • Scan Rate: 12 scan/s
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Discrete 2 of 5
    • Codabar
    • MSI
    • RSS
    • 1-D Composite Codes
    • UPC/EAN
    • Code 128
    • UCC/EAN 128
    • Code 39
    • Code 93
    • Discrete 2 of 5
    • Codabar
    • MSI
    • RSS
    • 1-D Composite Codes
  • Depth of Field:
    • 0.70" - 7.30"@5 mil
    • 0.90" - 12.30"@7.50 mil
    • 0.90" - 22"@ - 100%UPC
    • 0 mil - 27.50"@20 mil
    • 0 mil - 28"@40 mil
    • 0 mil - 36"@55 mil

General Information

  • Product Type: Fixed Mount Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MS954
  • Product Name: Symbol MiniScan 954 Barcode Reader
  • Product Line: MiniScan

Physical Characteristics

  • Height: 1"
  • Width: 1.9"
  • Depth: 2.3"
  • Weight (Approximate): 1.67 oz

Interfaces/Ports

  • Host Interface: Serial

Power Description

  • Input Voltage: 5 V DC

Warranty

  • Limited Warranty: 1 Year
Extended Details

Recommended Accessories for Model: Zebra Fixed Barcode Scanner

  • Zebra Power Device
    Part #: 23844-00-00R | SKU: ZEB26223

    US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
    Price: $20.56
    In Stock

  • Zebra Cables, Connectors, and Adapters
    Part #: 25-13228-03R | SKU: ZEB129620

    RS-232 9-Pin Female
    $56.36
    See Price in Cart (Why?)
    In Stock

  • Zebra Cables, Connectors, and Adapters
    Part #: CBL-58918-02 | SKU: ZEB360721

    Cable, Assembly (6 Foot, FM Cable Assembly, RS-232, STR). Requires power supply (part# PWR-WUA5V4W0US)
    $33.82
    See Price in Cart (Why?)
    In Stock

  • Zebra Power Device
    Part #: PWR-WUA5V4W0US | SKU: ZEB453605

    Power Device - Zebra - Level Vi AC/DC Power Supply Wall Adapter - With Captive DC Cable And US Adapter Clip AC Input - 100-240V - 0.2A DC Output - 5.2V - 1.1A - 5.7W
    $52.14
    See Price in Cart (Why?)
    In Stock

  • Zebra Power Device
    Part #: PWR-WUA5V4W0EU | SKU: ZEB599320

    Power Systems & Supplies - Zebra - Level VI AC/DC Power Supply (Wall Adapter - with Captive DC Cable and Eu - Uk Adapter Clip). AC Input: 100-240V - 0.2A. DC Output: 5.2V - 1.1A - 5.7W
    $41.38
View All Options

Recommended Warranties for Model: Zebra Fixed Barcode Scanner

  • BCI Service Contract
    Part #: TRUESUPPORT-BAS-SCAN-1YR | SKU: BCI634638

    TrueSupport Basic Plan for Scanners - 1 Year - Includes: Hardware Help Desk Support, RMA Triage, OEM Service contract mgmt.
    Price: $18.20
    In Stock

  • Zebra Service Contract
    Part #: Z1B5-EMTSXX-1000 | SKU: ZEB464438

    Zebra Technical and Software Support - 1 Year - Service - 8 x 5 x 4 Hour - Technical - Electronic
    Price: $14.99
    See Price in Cart (Why?)
    In Stock

  • Zebra Service Contract
    Part #: Z1B5-EMTSXX-3000 | SKU: ZEB464439

    Zebra Technical and Software Support - 3 Year - Service - 8 x 5 x 4 Hour - Technical - Electronic
    Price: $22.47
    See Price in Cart (Why?)
    In Stock

  • Zebra Service Contract
    Part #: Z1B5-EMTSXX-5000 | SKU: ZEB464440

    Zebra Technical and Software Support - 5 Year - Service - 8 x 5 x 4 Hour - Technical - Electronic
    Price: $29.12
    See Price in Cart (Why?)
    In Stock

  • Zebra Service Contract
    Part #: Z1BE-MS954X-1000 | SKU: ZEB463651

    Zebra OneCare Essential - 1 Year Extended Service - Service - Carry-in - Maintenance - Parts & Labor - Physical, Electronic Service
    $53.36
    See Price in Cart (Why?)
    In Stock
View All Options
