Additional Information
| Interface Options | Parallel, Serial (RS-232), USB |
|---|---|
| Manufacturer AIDC | Zebra |
| Max Roll Outer Diameter | 5 |
| Model Name | LP 2844-Z |
| Print Resolution | 203 dpi |
| Print Speed | 4 ips |
| Printer Type | Desktop |
| Printing Technology | Direct Thermal |

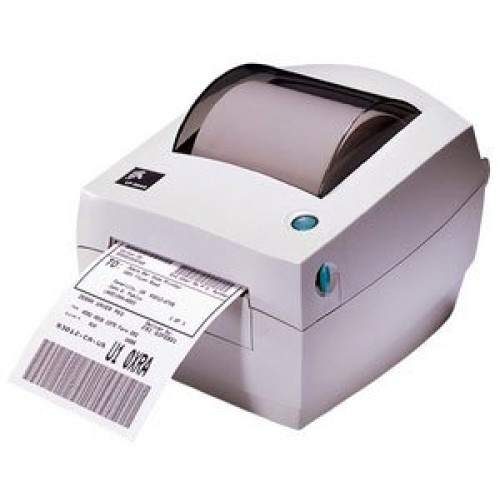

Zebra LP 2844-Z Specs
Technical Information
- Maximum Mono Print Speed: 4 in/s
- Maximum Print Resolution: 203 x 203 dpi
- Print Color: Monochrome
- Maximum Print Width: 4.09"
- Recommended Use: Label Print
- Barcode Symbology Supported:
- Code 39
- Code 93
- Code 128-A
- Code 128-B
- Code 128-C
- Codabar
- UPC-A
- UPC-E
- UCC
- EAN/JAN-8
- Plessey
- Interleaved 2 of 5
- Standard 2 of 5
- Industrial 2 of 5
- POSTNET
- Maxi Code
- Micro PDF-417
- PDF-417
- QR Code
- EAN With 2 or 5 Digit Extension
- Code 11
- ISBT-128
- EAN/JAN-13
- LOGMARS
- MSI
- Code 49
- Codablock
- Data Matrix
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: 2800
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: LP 2844-Z
- Product Name: LP 2844-Z Thermal Label Printer
Physical Characteristics
- Height: 6.6"
- Width: 7.6"
- Depth: 8.5"
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
- Parallel Port: Yes
Other
- Platform Supported: PC
- Package Contents:
- LP 2844-Z Label Printer
- User Documentation: English, European, Latin America
- LP 2844-Z Label Printer
- User Documentation: English, European, Latin America
- Certifications & Standards:
- Emissions:
- FCC Part 15
- Subpart B
- VCCI
- C-Tick
- Emissions and Susceptibility:
- CE: EN55022 Class-B
- EN61000-3-2
- EN61000-3-3
- EN55024
- Safety:
- CB Scheme IEC 60950:1991 +A1 +A2 +A3 +A4
- UL 60950
- C-UL
- IRAM
- NOM
- AAMI
- CCC
- GOST
- BSMI
- Additional Information:
- Fonts:
- Supports user-defined fonts and graphics--inlcuding custom logos
- IBM Code Page 850 International Characters
- Dual Media Sensors
- Transmissive
- Reflective
Media Types & Handling
- Maximum Label Width: 4.25"
- Maximum Label Length: 39"
- Media Type: Label
- Media Thickness: 7.09 mil
- Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
- Label Core Size: 1.50"
- Maximum Roll Diameter: 5"
Fonts & Emulation
- Language Emulation:
- ZPL II
- ZBI
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Memory
- Standard Memory: 8 MB
- Memory Technology: SDRAM
- Flash Memory: 4 MB
Warranty
- Limited Warranty: 1 Year
