6693 6693 6693 Zebra
Zebra Barcode Label Printer Zebra Barcode Label Printer Zebra Barcode Label Printer

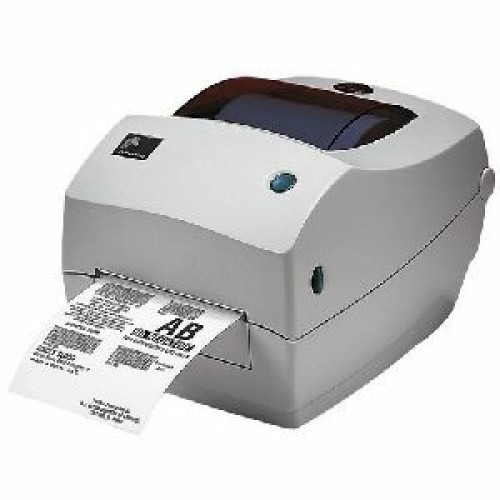

Zebra Barcode Label Printer
Part #: 284Z-10300-0001 | SKU: ZEB6693

The thermal transfer TLP 2844-Z bar code label printer brings powerful performance to applications requiring a space-saving, desktop-size, 4.09 inch (104 mm) printer. Ease of use--including its OpenACCESS design and clear media window for simple media loading and monitoring--makes the TLP 2844-Z a foolproof means to increase workplace efficiency. The TLP 2844-Z integrates easily into a variety of printing applications, including shipping and receiving, inventory control, healthcare specimen labeling and patient tracking, coupon and receipt printing, transportation and logistics, and e-commerce postage. With serial, parallel, and USB interfaces, plus network connection options, the TLP 2844-Z meets a variety of connectivity needs.

Zebra Barcode Label Printer

Part Details: Zebra TLP 2844-Z Thermal Label Printer - Monochrome - 203 x 203 dpi - USB, Serial, Parallel
InStock
Need a different version of the Zebra TLP 2844-Z Barcode Label Printer? View all 11 configurations

Additional Information

Interface Options Parallel, Serial (RS-232), USB
Manufacturer AIDC Zebra
Max Roll Outer Diameter 5
Model Name TLP 2844-Z
Print Resolution 203 dpi
Print Speed 4 ips
Printer Type Desktop
Printing Technology Thermal Transfer
Ribbon Core Size 0.5 inch
Zebra TLP 2844-Z Specs Zebra TLP 2844-Z Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 4 in/s
  • Maximum Print Resolution: 203 x 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 4.09"
  • Recommended Use: Label Print
  • Barcode Symbology Supported:
    • Code 11
    • Code 39
    • Code 49
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Codablock
    • UPC-A
    • UPC-E
    • EAN-8
    • EAN-13
    • UCC
    • ISBT-128
    • Interleaved 2 of 5
    • Industrial 2 of 5
    • Maxi Code
    • Micro PDF-417
    • MSI
    • Plessey
    • PDF-417
    • POSTNET
    • Standard 2 of 5
    • Data Matrix
    • QR Code
    • LOGMARS
    • EAN With 2 or 5 Digit Extension

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: 2800
  • Brand Name: Zebra
  • Manufacturer: Zebra Technologies Corporation
  • Product Model: TLP 2844-Z
  • Product Name: TLP 2844-Z Thermal Label Printer

Physical Characteristics

  • Height: 6.8"
  • Width: 7.9"
  • Depth: 9.4"

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Other

  • Platform Supported: PC
  • Certifications & Standards:
    • Emissions:
    • FCC Part 15
    • Subpart B
    • VCCI
    • C-Tick
    • Emissions and Susceptibility:
    • CE: EN55022 Class-B
    • EN61000-3-2
    • EN61000-3-3
    • EN55024
    • Safety:
    • CB Scheme IEC 60950:1991 +A1 +A2 +A3 +A4
    • UL 60950
    • C-UL
    • IRAM
    • NOM
    • AAMI
    • CCC
    • GOST
    • BSMI
  • Additional Information:
    • Supports user-defined fonts and graphics--inlcuding custom logos
    • IBM Code Page 850 International Characters
    • Construction: High-impact, double-walled plastic enclosure
    • Dual Media Sensors:
    • Transmissive
    • Reflective
    • Ribbons:
    • Width (outside diameter): 1.3" to 4.3"
    • Length: 2,928"

Media Types & Handling

  • Maximum Label Width: 4.25"
  • Maximum Label Length: 39"
  • Media Type:
    • Label
    • Continuous Form
  • Media Thickness: 7.09 mil
  • Media Sensor:
    • Reflective Media Sensor
    • Transmissive Media Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 5"

Fonts & Emulation

  • Language Emulation:
    • ZPL
    • ZPL II
    • ZBI

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC

Memory

  • Standard Memory: 8 MB
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Warranty

  • Limited Warranty: 1 Year
