Additional Information
| Interface Options | Ethernet, Serial (RS-232), USB |
|---|---|
| Manufacturer AIDC | Zebra |
| Max Roll Outer Diameter | 8 |
| Model Name | 220XiIIIPlus |
| Print Resolution | 300 dpi, 305 dpi |
| Print Speed | 10 ips |
| Printer Type | Industrial |
| Printing Technology | Thermal Transfer |
| Ribbon Core Size | 1 inch |

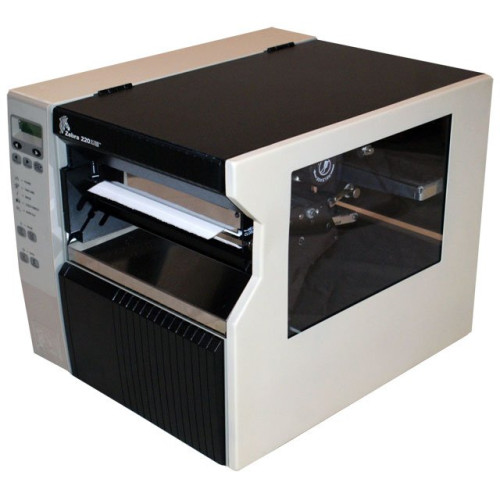

Zebra 220XiIIIPlus Specs
Technical Information
- Maximum Mono Print Speed: 6 in/s
- Maximum Print Resolution: 300 dpi
- Print Color: Monochrome
- Maximum Print Width: 8.50"
- Recommended Use: Label Print
- Features: Rewinder
- Barcode Symbology Supported:
- Codabar
- Code 11
- Code 39
- Code 93
- EAN-13
- EAN-8
- Interleaved 2 of 5
- Industrial 2 of 5
- LOGMARS
- MSI
- Planet Code
- Plessey
- POSTNET
- Standard 2 of 5
- EAN With 2 or 5 Digit Extension
- UPC 2 or 5 Digit Extension
- UPC-E
- UPC-A
- Code 128-A
- Code 128-B
- Code 128-C
- UCC Case Codes
- ISBT-128
- Codablock
- Code 49
- Data Matrix
- Maxi Code
- PDF-417
- QR Code
- RSS
- TLC 39
- Micro PDF
- Aztec Code
General Information
- Product Type: Direct Thermal/Thermal Transfer Printer
- Product Series: XiIIIPlus
- Brand Name: Zebra
- Manufacturer: Zebra Technologies Corporation
- Product Model: 220XiIIIPlus
- Product Name: 220XiIIIPlus Thermal Label Printer
Physical Characteristics
- Height: 15.5"
- Width: 15.7"
- Depth: 19.5"
Interfaces/Ports
- USB: Yes
- Serial Port: Yes
Other
- Platform Supported: PC
- Package Contents:
- 220XiIIIPlus Label Printer
- 120 VAC North American Edition Power Cord
- User Guide
- Utility CD
- 220XiIIIPlus Label Printer
- 120 VAC North American Edition Power Cord
- User Guide
- Utility CD
- Certifications & Standards:
- CCC
- CE
- C-Tick
- cUL
- EN55022 Class B
- EN55024
- EN61000-3-2,3
- FCC Class B
- GOST-R
- ICES-003 Class B
- IEC 60950-1 / EN60950
- NOM
- S Mark
- VCCI
- ZIK
- Additional Information:
- 300 unique darkness settings
- Advanced media/ribbon counter
- North American Edition, 120 VAC Cord
- Clear Media Side Door and Media Hanger
- Transmissive and reflective media sensors
- Enhanced Alert notification monitors printhead condition
- Multi-level Element Energy Equalizer (E3) for superior print quality
Media Types & Handling
- Maximum Label Width: 8.80"
- Maximum Label Length: 39"
- Media Type:
- Continuous Form
- Die-cut Label
- Black Mark
- Label
- Media Size:
- Letter - 8.50" x 11"
- Custom Size - 8.80"
- 8.80"
- 4.25"
- Media Sensor:
- Reflective Media Sensor
- Transmissive Media Sensor
- Label Core Size: 3"
- Ribbon Core Size: 1"
- Maximum Roll Diameter: 8"
Memory
- Standard Memory: 16 MB
- Memory Technology: SDRAM
- Flash Memory: 4 MB
Power Description
- Input Voltage:
- 110 V AC
- 220 V AC
Network & Communication
- Ethernet: Yes
- Ethernet Technology: Fast Ethernet
Warranty
- Limited Warranty: 1 Year
