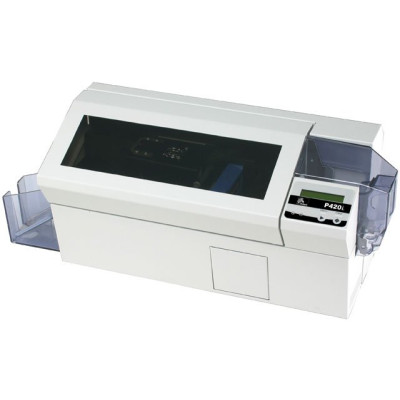

Zebra P420i ID Card Printer

Zebra P420i ID Card Printer

The Zebra P420i is a robust, double-sided card printer with LCD display and convenient, easy-to-use features for producing high quality, personalized photo ID cards on-demand for high volume applications.
General Specifications
  • High speed card printing
  • 102cards/hour full color, dual sided (YMCKOK)
  • 4MB image memory standard
  • Standard card flip over feature for dual-sided printing
  • Windows drivers for 98, 2000, NT, ME, XP
  • One year printer warranty
  • One year (unlimited passes) printhead warranty
  • Passcode electronic lock
Color Printing
  • Color dye sublimation or monochrome thermal transfer printing
  • 35 seconds per card, dual sided (YMCKOK)
  • 300 dpi (11.8 dots/mm) print resolution
Barcodes
  • Code 39
  • Code 128 B & C with and without check digit
  • 2 of 5 & 2 of 5 Interleaved
  • UPC-A
  • EAN 8 & EAN 13
  • PDF-417 2D barcode and other symbologies available via Windows drivers.
Fonts
  • True Type fonts via Windows driver.
Card Specifications
  • Types: PVC, PVC Composite
  • Card width/length: ISO CR-80 - ISO 7810, 2.12" (54mm) x 3.38" (86mm)
  • Magnetic Stripe - ISO 7811
  • Smart Card - ISO 7816-2
  • Card thickness: 30 mil (.76mm) to 60 mil (1.524mm)
  • Card feeder capacity: 100 cards (30 mil)
  • Card hopper capacity: 100 cards (30 mil)
Ribbon Specifications
  • i Series Printers require the use of i Series Ribbons for full color printing
  • KdO: 500 cards/roll
  • KrO: 500 cards/roll
  • YMCKOK: 170 cards/roll
  • YMCKO: 200 & 330 cards/roll
  • Overlay varnishes (clear & hologram): 350 cards/roll
Communications Interface
  • USB & Parallel (parallel cable included)
  • Ethernet Option
Mechanical
  • Width: 20.90" (523 mm)
  • Depth: 10.17" (253 mm)
  • Height: 10.76" (269 mm)
  • Weight: 27.5 lbs (12.5 kg)
Electrical
  • 110 - 240 Volts AC, 50/60 Hz (auto switching)
  • FCC Class B, CE, UL, and CUL approved
Environmental
  • Operating temperature: 60° - 86°F (15° - 30°C)
  • Operation humidity: 20% - 65% non-condensing
  • Storage temperature: 23°F to 158°F (-5°C to 70°C)
  • Storage humidity: 20% - 70% non-condensing
  • Ventilation: Free air
Options
  • Ethernet
  • Smart Card contact station (30 mil cards only)
  • Magnetic encoder (30 mil cards only)
  • Cleaning supplies
  • Service manual
  • Extended warranty program
  • Hot Swap warranty program (USA only)
Extended Details
Refine Your Options
Shop By
Shopping Options
Print Resolution
  1. 300 dpi (4)
  1. Zebra ID Card Printer
    Part #: P420I-0000C-ID0 | SKU: ZEB16440

    Zebra P420i Card Printer - Color, Color - 300 dpi - USB
  2. Zebra ID Card Printer
    Part #: P420I-0000U-ID0 | SKU: ZEB16441

    Zebra P420i Card Printer - Color - 35 Second Color - 300 dpi - USB, Parallel
  3. Zebra ID Card Printer
    Part #: P420I-0M10U-ID0 | SKU: ZEB16443

    P420i, Double-sided printing, Parallel & USB interfaces, High-Coercivity Magnetic Stripe (stripe down) encoder, color printing, US Power cord & Parallel cable included. Order USB cable separately, see accessories.
  4. Zebra ID Card Printer
    Part #: P420I-E000U-ID0 | SKU: ZEB16445

    Zebra P420i Card Printer - Color - 35 Second Color - 300 dpi - USB, Parallel
  5. Zebra ID Card Printer
    Part #: P420I-EM20U-ID0 | SKU: ZEB16448

    P420i, Two-sided printing, Parallel & USB interfaces, High Coercivity Magnetic Stripe encoder, Smart Card encoder, US Power cord & Parallel cable included. Order USB cable separately, see accessories.
  6. Zebra ID Card Printer
    Part #: P420I-0M10C-IDO | SKU: ZEB24159

    P420i, Two-sided printing, USB & Ethernet interfaces, High Coercivity Magnetic Stripe encoder, US Power cord & Parallel cable included. Order interface cable separately, see accessories.
