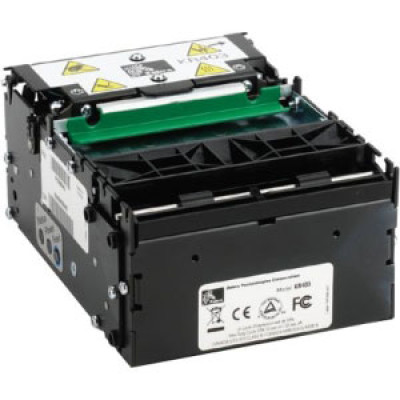

Zebra KR403 Receipt Printer

More Standard Features

• Retract and retain function
• Guillotine cutter
• Auto media loading
• Flexible media mounting
• Horizontal and vertical mounting capability

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Print width

• 2.3" /58 mm
• 2.4" /60 mm
• 3.1" /80 mm
• 3.3" /82.5 mm

Print length: 2.75" (70 mm) to 23.6" (600 mm)
Print speed: 6" (152 mm)/sec

Media Characteristics

Maximum roll diameter: 9.8" (250 mm)
Core diameter: 1" (25 mm)
Media thickness: 0.002" (0.054 mm) to 0.004" (.11 mm)
Media types: Roll or fanfold

Operating Characteristics

Operating temperature DT: Operating temperature: 14° F (-10° C) to 122° F (50° C)
Direct thermal Storage temperatures: 14° F (-10° C) to 122° F (50° C)
Operating humidity: 10-95% non-condensing R.H.
Electrical: 24 VDC, ± 5%, average 2 A when printing

Physical Characteristics

Width: 4.2" (107 mm)
Height: 2.7" (68 mm)
Depth: 5.7" (144 mm)
Weight: 2.4 lbs (1.1 kg)

Kiosk Characterstics

Max/Min Receipt Width: 3.3" (82.5 mm)/2.3" (58 mm)

Related Products

Communication and Interface Capabilities

• Serial RS-232 and USB 1.1 (2.0 compatible)
• 10/100 Ethernet (option)
• Windows XP, Vista, 7, Server 2003, OPOS and Linux

Programming Languages

Core programming languages: ZPL

barcodes/Symbologies

Linear Code 128
Codabar
Code 11
Code 128 with subsets A/B/C
Code 39
Code 93
EAN-13
EAN-18
EAN-8
EAN-8 and EAN-13 with 2 or 5 digit extensions
MSI
MSI-3
Postnet
RSS (reduced space symbology)
Standard 2-of-5
UCC/EAN-128
UPC-A
UPC-A and UPC-E with 2 or 5 digit extensions
UPC-E
2-dimensional Aztec
Codablock
Code 49
Data Matrix
MacroPDF417
MaxiCode
MicroPDF417
PDF417
QR Code
RSS / GS1 DataBar family (12 barcodes)
Fonts and Graphics

• Supports user-defined fonts and graphics
• 16 resident expandable ZPL II bitmap fonts, one resident scalable ZPL II font
