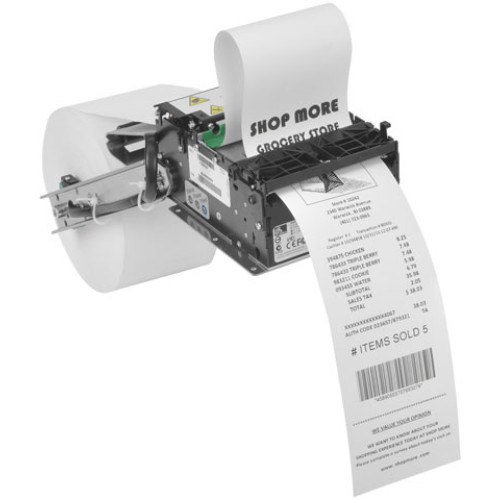

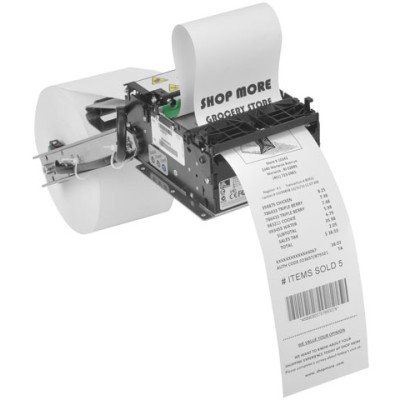

Zebra KR203 Receipt Printer

More Standard Features

• Guillotine cutter
• Auto media loading
• Flexible media mounting

Printer Specifications

Resolution: 203 dpi (8 dots/mm)
Print width

• 2.3" /58 mm
• 2.4" /60 mm
• 3.1" /80 mm
• 3.3" /82.5 mm

Print length: 3.6" (92 mm) to 23.6" (600 mm)
Print speed: 6" (152 mm)/sec

Media Characteristics

Maximum roll diameter: 9.8" (250 mm)
Core diameter: 1" (25 mm)
Media thickness: 0.002" (0.054 mm) to 0.004" (.11 mm)
Media types: Roll or fanfold

Operating Characteristics

Operating temperature DT: Operating temperature: 32° F (0° C) to 122° F (50° C)
Direct thermal Storage temperatures: -22° F (-30° C) to 149° F (65° C)
Operating humidity: 10-95% non-condensing R.H.
Electrical: 24 VDC, +/- 5%, average 2 A when printing

Physical Characteristics

Width: 4.2" (107 mm)
Height: 2.7" (69 mm)
Depth: 5.7" (145 mm)
Weight: 2.4 lbs (1.1 kg)

Kiosk Characterstics

Max/Min Receipt Width: 3.3" (82.5 mm) /2.3" (58 mm)
Max/Min Receipt Length: 23.6" (600 mm)/3.6" (92 mm)
