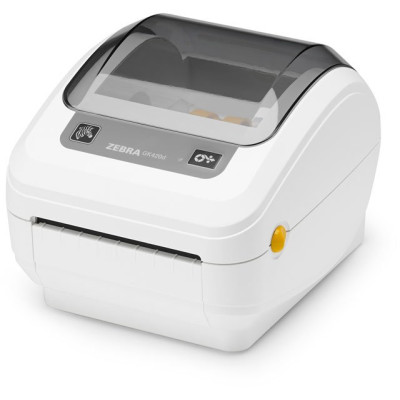

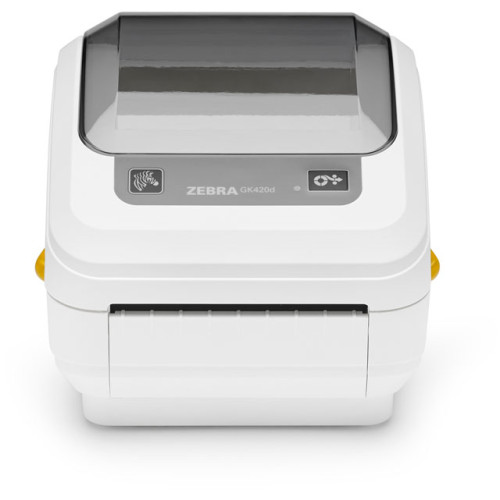

Zebra GK420d Healthcare Barcode Label Printer

Zebra GK420d Healthcare Barcode Label Printer

Designed specifically for health care applications, the GK420 Health care desktop printers are constructed using disinfectant-ready plastics to help clinicians safeguard patient health. s a direct thermal printer, the GK420d Health care printer uses linerless media that doesn"t create a copy of printed content, eliminating the need for secure disposal of sensitive information. Ideal for applications such as medical records and prescription labeling where privacy protection is a key concern.

See all options

Specs & Info
All Options

Zebra GK420d Healthcare Specs (pdf)

Zebra GK420d Healthcare Driver (download)

STANDARD FEATURES

Print speed: up to 5" (127 mm) per second
Disinfectant-ready plastics
Medical-grade power supply

More Standard Features

Print method: direct thermal
Programming language: EPL and ZPL are standard
Construction: dual-wall frame
Tool-less printhead and platen replacement
OpenACCESS™ for easy media loading
Quick and easy ribbon loading
Auto-calibration of media
Triple connectivity: USB, Parallel, Serial
ENERGY STAR^® qualified

Printer Specifications

Resolution: 203 dpi/8 dots per mm
Memory: Standard - 4 MB Flash; 8 MB SDRAM
Print Width: 4.09”/104 mm
Maximum Print Length: 39.0”/990 mm
Maximum Print Speed: 5”/127 mm per second
Media Sensors: Fixed reflective and transmissive sensors

Media Characteristics

Maximum Label and Liner Length: Non-continuous - 39”/990 mm
Maximum Label and Liner Width: 0.75”/19 mm to 4.25”/108 mm
Maximum Media Roll Size: 5”/127 mm O.D.
Media Thickness: 0.003”/0.08 mm to 0.0075”/0.19 mm
Media Types: Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands

Operating Characteristics

Environmental

Operating temperature: 40° F/4.4° C to 105° F/41° C
Storage temperature: -40° F/-40° C to 140° F/60° C
Operating humidity: 10% to 90% non-condensing
Storage humidity: 5% to 95% non-condensing

Electrical

Auto-detectable (PFC Compliant) 100-240VAV, 50-60Hz
ENERGY STAR qualified
IEC 60601-1 Certified

Agency Approvals

Emissions: FCC Part 15, Subpart B (Class B), ICES 003
Emissions and Susceptibility: EN55022 (Class B), EN55024, EN61000-3-2, EN61000-3-3
Safety: CB Scheme IEC 60950-1, TUV NRTL

Physical Characteristics

Width: 6.75" (171 mm)
Height: 6.0" (152 mm)
Depth: 8.25" (210 mm)
Weight: 3.0 lbs (1.4 kg)

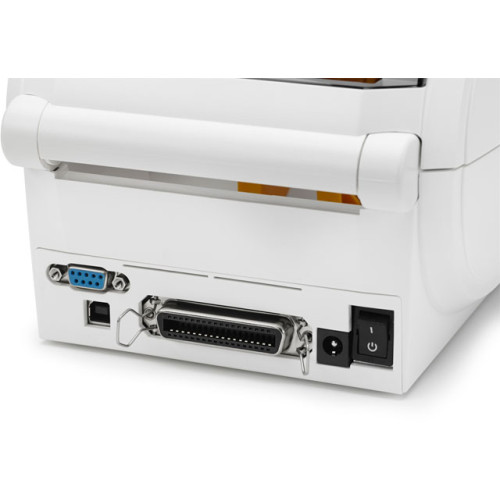

Communication and Interface Capabilities

RS-232 auto-sensing Serial interface, DB-9
USB V1.1, bi-directional
Centronics^® parallel
Ethernet—10/100 internal (optional, replaces Serial and Parallel ports)

ZebraLink™ Solutions:

Software

ZebraDesigner™ Pro
ZebraDesigner
ZebraNet™ Bridge Enterprise
ZebraNet Utilities v7.0
ZebraDesigner Driver
ZBI-Developer™
POS Driver

Networking and Connectivity

Ethernet—10/100 internal (optional) offered in combination with USB and Serial interface (replaces Parallel port)

Firmware

EPL2™
EPL Line Mode (direct thermal only)
ZPL II®
Web View
Alert
ZBI™

Fonts/Graphics/Symbologies

Fonts and Character Sets

16 resident expandable ZPL II bitmap fonts
One resident scaleable ZPL font
Five resident expandable EPL2 fonts
Native open type font support
Unicode™ compliant for multi-language, on- demand thermal printing

Graphic Features

Supports user-defined fonts and graphics— including custom logos
ZPL II drawing commands—for boxes and lines

Barcode Symbologies

Barcode Ratios: 2:1 (non-rotated) and 3:1
Linear Barcodes: Codabar, Code 11 (ZPL), Code 128, Code 39, Code 93, Code 93, EAN-13, EAN-8, EAN-14 (ZPL), German Post Code (EPL), Industrial 2-of-5 (ZPL), Interleaved 2-of-5, Japanese Postnet (EPL), ISBT-128 (ZPL), Logmars (ZPL), MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5 (ZPL), UCC/EAN-128 (EPL), UPC and EAN 2 or 5 digit extensions (ZPL), UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E, and GS1 Databar (formerly RSS)
2-Dimensional: Codablock (ZPL), Code 49 (ZPL), Data Matrix, MaxiCode, QR Code, PDF417, MicroPDF417, Aztec (For EPL and ZPL except where noted)

Options and Accessories

ZebraNet® 10/100 Print Server—Internal Ethernet for network communication and printing
Font Packs—Asian and other international font kits
ZKDU™ and KDU Plus™ keyboard display units for stand-alone printing solutions
Interface cables and adapters

More Standard Features

Print method: direct thermal
Programming language: EPL and ZPL are standard
Construction: dual-wall frame
Tool-less printhead and platen replacement
OpenACCESS™ for easy media loading
Quick and easy ribbon loading
Auto-calibration of media
Triple connectivity: USB, Parallel, Serial
ENERGY STAR^® qualified

Printer Specifications

Resolution: 203 dpi/8 dots per mm
Memory: Standard - 4 MB Flash; 8 MB SDRAM
Print Width: 4.09”/104 mm
Maximum Print Length: 39.0”/990 mm
Maximum Print Speed: 5”/127 mm per second
Media Sensors: Fixed reflective and transmissive sensors

Media Characteristics

Maximum Label and Liner Length: Non-continuous - 39”/990 mm
Maximum Label and Liner Width: 0.75”/19 mm to 4.25”/108 mm
Maximum Media Roll Size: 5”/127 mm O.D.
Media Thickness: 0.003”/0.08 mm to 0.0075”/0.19 mm
Media Types: Roll-fed or fan-fed, die-cut or continuous direct thermal labels with or without black line, tag stock, continuous receipt paper, wristbands

Operating Characteristics

Environmental

Operating temperature: 40° F/4.4° C to 105° F/41° C
Storage temperature: -40° F/-40° C to 140° F/60° C
Operating humidity: 10% to 90% non-condensing
Storage humidity: 5% to 95% non-condensing

Electrical

Auto-detectable (PFC Compliant) 100-240VAV, 50-60Hz
ENERGY STAR qualified
IEC 60601-1 Certified

Agency Approvals

Emissions: FCC Part 15, Subpart B (Class B), ICES 003
Emissions and Susceptibility: EN55022 (Class B), EN55024, EN61000-3-2, EN61000-3-3
Safety: CB Scheme IEC 60950-1, TUV NRTL

Physical Characteristics

Width: 6.75" (171 mm)
Height: 6.0" (152 mm)
Depth: 8.25" (210 mm)
Weight: 3.0 lbs (1.4 kg)

Communication and Interface Capabilities

RS-232 auto-sensing Serial interface, DB-9
USB V1.1, bi-directional
Centronics^® parallel
Ethernet—10/100 internal (optional, replaces Serial and Parallel ports)

ZebraLink™ Solutions:

Software

ZebraDesigner™ Pro
ZebraDesigner
ZebraNet™ Bridge Enterprise
ZebraNet Utilities v7.0
ZebraDesigner Driver
ZBI-Developer™
POS Driver

Networking and Connectivity

Ethernet—10/100 internal (optional) offered in combination with USB and Serial interface (replaces Parallel port)

Firmware

EPL2™
EPL Line Mode (direct thermal only)
ZPL II®
Web View
Alert
ZBI™

Fonts/Graphics/Symbologies

Fonts and Character Sets

16 resident expandable ZPL II bitmap fonts
One resident scaleable ZPL font
Five resident expandable EPL2 fonts
Native open type font support
Unicode™ compliant for multi-language, on- demand thermal printing

Graphic Features

Supports user-defined fonts and graphics— including custom logos
ZPL II drawing commands—for boxes and lines

Barcode Symbologies

Barcode Ratios: 2:1 (non-rotated) and 3:1
Linear Barcodes: Codabar, Code 11 (ZPL), Code 128, Code 39, Code 93, Code 93, EAN-13, EAN-8, EAN-14 (ZPL), German Post Code (EPL), Industrial 2-of-5 (ZPL), Interleaved 2-of-5, Japanese Postnet (EPL), ISBT-128 (ZPL), Logmars (ZPL), MSI, Plessey, Postnet, GS1 DataBar (RSS-14), Standard 2-of-5 (ZPL), UCC/EAN-128 (EPL), UPC and EAN 2 or 5 digit extensions (ZPL), UPC-A, UPC-A and UPC-E with EAN 2 or 5 digit extensions, UPC-E, and GS1 Databar (formerly RSS)
2-Dimensional: Codablock (ZPL), Code 49 (ZPL), Data Matrix, MaxiCode, QR Code, PDF417, MicroPDF417, Aztec (For EPL and ZPL except where noted)

Options and Accessories

ZebraNet® 10/100 Print Server—Internal Ethernet for network communication and printing
Font Packs—Asian and other international font kits
ZKDU™ and KDU Plus™ keyboard display units for stand-alone printing solutions
Interface cables and adapters
