Zebra 3S80 Sensor

• Rapid 3D data capture – Leveraging patented Parallel Structured Light technology, these sensors achieve parallel construction of various virtual images within one exposure window, ensuring high-resolution capture of moving objects without motion blur.
• Accelerated cycle times – The 2-MP sensor combined with Parallel Structured Light technology facilitates faster bin picking, reducing cycle times, minimizing errors, and speeding up error recovery. It also includes ambient light suppression for better performance.
• Extensive scanning volume – 3S80 sensors can scan up to three meters, effectively capturing both large and small objects in 3D.
• Simple integration – Connect easily with Zebra’s robust 4Sight EV7 vision controller and Aurora software to capture precise high-density point clouds effortlessly.
• Cutting-edge CMOS sensor – In conjunction with Parallel Structured Light technology, the CMOS sensor captures both moving and stationary objects with high accuracy.
• Power and data over single cable – The PoE option enables both power and data transfer through one cable.
• Resistant to dust and water – IP65 protection ensures the 3S80 sensors are dust-tight and resistant to water jets from any angle.

As the velocity of global commerce accelerates, enhancing manufacturing throughput with automated 3D inspection and dimensioning becomes essential. However, maintaining efficiency and accuracy requires more advanced machine vision systems like Zebra’s 3S80 3D sensors.

Comprehensive 3D Imaging with Zebra’s 3S80 Series

Zebra’s 3S80 3D sensors harness proprietary parallel structured light technology to offer industry-leading 3D image resolution and precision.

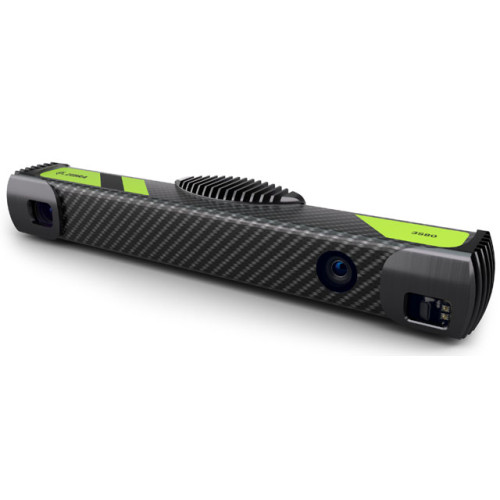

Model 3S80-4M: Perfect for medium-scale objects

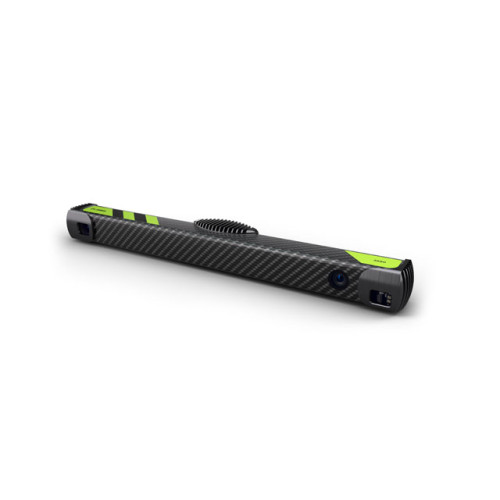

Model 3S80-4L: Designed to handle larger scanning ranges up to 3 meters, capturing detailed point clouds in an area of 1027 x 836 mm at a distance of 1.25 meters.

High-Speed 3D Data Acquisition

These sensors can capture up to 2 million 3D points (1680 x 1200) within 45 ms, producing detailed RGB-colored point clouds. This rapid data acquisition eliminates motion artifacts, providing accurate measurements of objects on a conveyor.

Effortless Implementation

Zebra’s Aurora Design Assistant and Aurora Vision Studio software offer users a streamlined deployment process, avoiding the need to learn multiple software environments. These platforms are equipped with tools for capturing, processing, analyzing, annotating, displaying, and archiving images.

Enhanced Deep Learning Capabilities

Enhance the performance of your 3S80 3D sensors with Zebra’s advanced deep learning tools, which help tackle tough machine vision challenges. These tools can identify complex surface defects and manage sophisticated 3D vision tasks, ensuring a higher quality and efficiency in your operations.

Superior Technology with Simplicity

Though packed with advanced features, Zebra’s 3S80 3D sensors are user-friendly and integrate easily within Zebra’s machine vision portfolio. The plug-and-play hardware, comprising a CMOS camera, laser projection unit, and GPU processor, supports AIA’s GigE™ Vision standard and works with PoE+ or 24V. Just plug in and start capturing high-quality point clouds with ease.

Equipped with Zebra Aurora™ Software and 4Sight EV7 Vision Controller

Each 3S80 sensor is bundled with Zebra’s Aurora Design Assistant™ or Aurora Vision Studio™ software for easy configuration and deployment. For more demanding applications, add Zebra’s 4Sight EV7 for single high-rate or multi-camera imaging.

Specifications for 3S80-4M

Device Specifications
