model-3934 model-3934 model-3934 Zebra

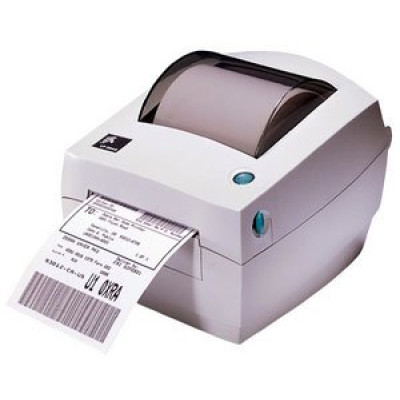

Zebra LP 2844 Barcode Label Printer

The direct thermal LP 2844 barcode label printer is ideal for applications requiring a space-saving, desktop-size, 4.09 inch (104 mm) printer. This user-friendly printer delivers optimal performance in today's on-demand desktop labeling applications. The LP 2844 has a sturdy construction with a double-walled ABS casing.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Zebra LP 2844 Specs (pdf)

Zebra LP 2844 Driver (download)

Standard Features

RFID Smart Label printing and encoding
Direct thermal and thermal transfer printing of bar codes, text, and graphics
OpenACCESS design for easy media loading
Double-walled ABS case construction
Fully enclosed 5.0" (127 mm) media compartment
32 bit RISC processor
Zebra E3 Printhead Energy Control
Auto-Calibration
Auto-switching 120V and 240V power supply
Head-up sensor
Zebra Printer Management - real-time connectivity control solution
ZBI - Programming Language Interpreter for translation of foreign data streams

Printer Specifications

Resolution: 200 dpi (8 dots/mm)

Memory

Standard: 8 MB SDRAM (4 MB available for user); 4 MB Flash (2.75 available to user)
Optional: Up to 8 MB Flash with real time clock (12 MB total)

Print width: 4.09" (104 mm)

Print length: 39" (991 mm)

Print speed: 2" (51 mm)/sec
3" (76 mm)
4" (102 mm)/sec

Media sensors: Reflective
Transmissive

Media Characteristics

Maximum label and liner width: 4.25" (108 mm)

Maximum label and liner length: 39" (990 mm)

Maximum roll diameter: 5" (127 mm) O.D. on a 1" (25.4 mm) I.D. core

Core diameter: 1" (25.4 mm) to 1.5" (38 mm); Using Media Adaptor Plates (included): 2" (50.8 mm), 2.5" (63.5 mm) and 3" (76.2 mm)

Media thickness: 5" (127 mm) O.D. on a 1" (25.4 mm) I.D. core

Media types: roll-fed, fanfold, die-cut, continuous, (black-mark optional), tag stock

Ribbon Characteristics

Outside diameter: 1.36" (35 mm)

Standard length: 244' (74 mm) using .000328" ribbon thickness

Ribbon width: 1.30" (33 mm) to 4.3" (110 mm)

Ribbon setup: Ribbon wound ink side out

ID Core: 0.5" (13 mm)

Operating Characteristics

Operating temperature: TT: Operating temperature 40° F (5° C) to 105° F (41° C) Thermal transfer
DT: Operating temperature 40° F (5° C) to 105° F (41° C) Direct thermal

Storage temperatures: -40° F (-40° C) to 140° F (60° C)

Operating humidity: 10-90% non-condensing R.H.

Storage humidity: 5-95% non-condensing R.H.

Electrical: Auto-detectable (PFC Compliant) 100-240VAC, 50-60Hz

Agency approvals

Emissions: FCC Part 15, Subpart C, C-Tick
Emissions and Susceptibility: (CE): ETSI 300 330-2, ETSI EN301-489-3, EN55022 Class-B, EN61000-3-2, EN61000-3-3 and EN55024
Safety: CB Scheme IEC 60950: 1991 +A1 +A2 +A3 +A4, UL 60950 and C-UL

Physical Characteristics

Width: 7.9" (201 mm)

Height: 6.8" (172 mm)

Depth: 9.75" (248 mm)

Weight: 3.2 lbs (1.4 kg)

Related Products

Options

8 MB Flash Memory w/ Real Time clock for a total of 12 MB (10.75 MB available to user) for applications
Dispenser - Label peel and present with label taken sensor
ZebraNet PrintServer II (internal and external)
BAR-ONE Label Design Software

Communication and Interface Capabilities

Centronics Parallel (36 Pin) connector ports
RS-232 Serial Interface
USB v 1.1
ZebraNet PrintServer II

Programming Languages

Core programming languages: ZPL, ZPL II, Zebra BASIC Interpreter

Bar Codes/Symbologies

Linear: Code 11
Code 39
Code 93
Code 128
Codabar
UPC-A
EAN-8
Plessey
Interleaved 2-of-5
Standard 2-of-5
UPC-E
EAN-13
Industrial 2-of-5
Logmars
Postnet
MSI
Planet Code
EAN-14
UPC-A and UPC-E with 2 or 5 digit extensions

2-dimensional: Codablock
MaxiCode
PDF417
Data Matrix
TLC 39
QR Code
RSS

Fonts and Graphics

Character Fonts: Standard bitmapped Zebra fonts: A, B, C, D, E (OCR-B), F, G, H, (OCR-A), GS, P, Q , R, S, T, U, V & Smooth font (CG Triumvirate Bold Condensed).
Character Sets: IBM Code Page 850 International characters & graphic symbols
Supports user defined fonts and graphics - including custom logos
Bitmap fonts are expandable up to 10 times, height and width independent. Fonts E and H (OCR-B and OCR-A), however, are not considered in spec when expanded.
Smooth scalable font (CG Triumvirate Bold Condensed) is expandable dot-by-dot, height and width independent, while maintaining edges to a max. 1500 x 1500 dots.
IBM Code Page 850 International Characters available in fonts A, B, D, E, F, G through software control.
