Xerafy RFID Tag
Part #: X7015-GL010-U9XE | SKU: XER797204

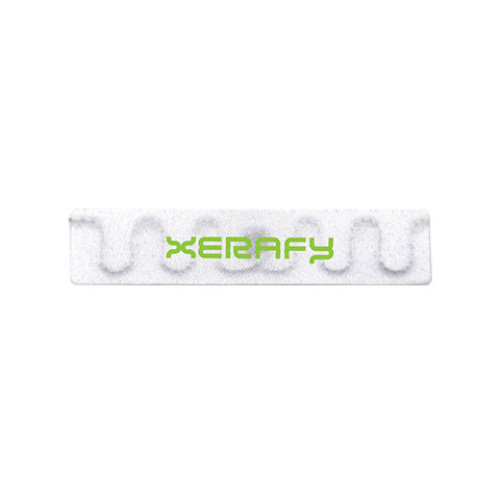

The XERAFY TEX 70x15 offers a highly adaptable textile tagging solution suitable for demanding sectors such as healthcare and hospitality. Constructed from a flexible and washable material, this RFID tag endures more than 200 commercial washing cycles, making it easier to uphold effective inventory management while ensuring hygiene standards are met. With a robust read range of up to 39.37 ft (12 m), it can be seamlessly integrated into various applications, including uniforms and hospital linens, representing an economical option for high-volume requirements.

Key Features

• Flexible and washable textile material
• Long read range of up to 12m
• Durable for over 200 commercial wash cycles
• Cost-effective for high-volume applications
• Customizable printing options such as texts, patterns, and barcodes

Specifications

• RF Protocol: EPC global Class 1 Gen 2; ISO18000-63
• Frequency: 860-960 MHz (Global)
• IC Type: NXP UCODE 8
• Chip Memory: 128 bits EPC; 96 bits TID
• Read Range:
  • Fixed: Up to 39.37 ft (12 m)
  • Handheld: Up to 26.25 ft (7.50 m)
• Operating Temperature: -20°C to +85°C
• Washing Temperature: 90°C (194°F) for 15 minutes
• Size: 70 mm x 15 mm; Thickness: 0.03 in (0.85 mm)
• Color: White
• Packaging: 1,000 pcs/bag
• Mounting: Sew or heat-seal options available
