Xerafy RFID Tag
Part #: X5012-GL010-U9XE | SKU: XER797205

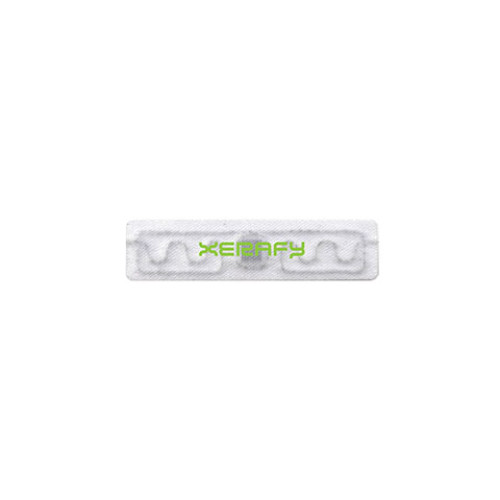

Discover the exceptional XERAFY TEX 50x12, an RFID textile tag crafted for various industrial applications. Utilizing cutting-edge EPC global Class 1 Gen 2 technology, this tag is specially designed to be both flexible and washable, making it an ideal choice for medical uniforms, hospital linens, and scrubs. With a remarkable read range reaching up to 21.33 ft (6.50 m) when fixed and 8.20 ft (2.50 m) in handheld mode, this budget-friendly solution guarantees dependable tracking in bustling environments, withstanding over 200 commercial washing cycles.

Key Features

• Flexible and washable textile material
• Durability of over 200 commercial washing cycles
• High read range of up to 21.33 ft (6.50 m)
• Printable with texts, patterns, and barcodes
• Cost-effective for high-volume usage

Specifications

• RF Protocol: EPC global Class 1 Gen 2, ISO18000-63
• Frequency: 860-960 MHz (Global)
• IC Type: NXP UCODE 8
• Chip Memory: 128 bits EPC, 96 bits TID
• Dimensions: 1.97 x 0.47 in (150 x 12 mm)
• Thickness: 0.03 in (0.85 mm), 0.04 in on chip location (1.10 mm)
• Color: White
• Operational Temperatures: -20°C to +85°C
• Washing Method: Laundry, dry cleaning
• Mounting Systems: Sew or heat-seal options
• Warranty: 200 washing cycles or 3 years
