Xerafy RFID Tag
Part #: X4102-US000-U9XM | SKU: XER797194

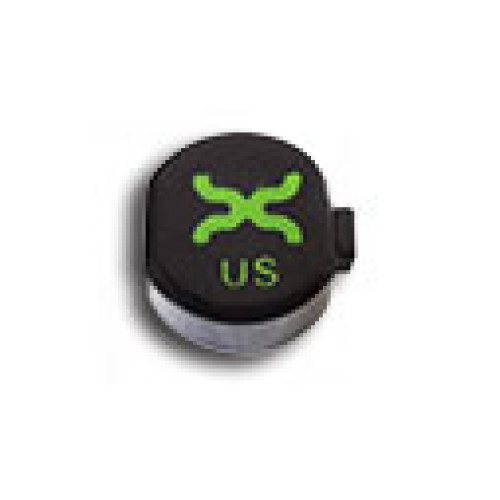

The XERAFY XS Dot is an innovative RFID tag engineered for versatile asset management across multiple sectors. Despite its compact size of merely 6 mm, this tag delivers remarkable read distances, reaching up to 1.50 m with fixed installations and 1.00 m with handheld devices. Built to endure extreme conditions, the XS Dot withstands temperatures up to 200°C and is entirely waterproof, making it an excellent choice for tracking assets in both industrial settings and outdoor environments. This tag proves to be invaluable for the management of hand tools, equipment, and even weaponry, revolutionizing the process of inventory control.

• 6mm Small Size: Perfect for attachment on small items.
• 1.50 m Read Range: Outstanding performance in a compact design.
• High Temperature Resistance: Capable of enduring temperatures up to 200°C.
• IP68 Waterproof Rating: Ensures longevity even in harsh environments.

• Technical Specifications:
  • RF Protocol: EPC global Class 1 Gen 2
  • Frequency: 902-928 MHz (US); 865-868 MHz (EU)
  • IC Type: Alien Higgs 9
  • Chip Memory: 96 bits EPC, 96 bits TID, 688 bits user memory
  • Read Range (Fixed): Up to 4.92 ft (1.50 m)
  • Read Range (Handheld): Up to 3.28 ft (1 m)
  • Polarization: Linear
• Environmental Specifications:
  • Operating Temperature: -40°C to +85°C
  • Survival Temperature: -40°C to +150°C (168 hours)
  • Peak Temperature: 200°C (minutes)
  • IP Rating: IP68
  • Compression Strength: 790 psi (5,447 kPa)
  • Shock Resistance: 3 ft (1 m) to concrete/granite
  • Vibration: MIL-STD-810G
• Physical Specifications:
  • Material: Ceramic
  • Dimensions: Ø 0.24 x 0.10 inches (Ø 6 x 2.5 mm)
  • Weight: 0.012 oz (0.34 g)
• Customization Options:
  • Encoding: Available
• Order Information:
  • XS Dot US: X4102-US000-H9
  • XS Dot EU: X4102-EU000-H9
