Xerafy RFID Tag
Part #: X4101-US000-M830 | SKU: XER797200

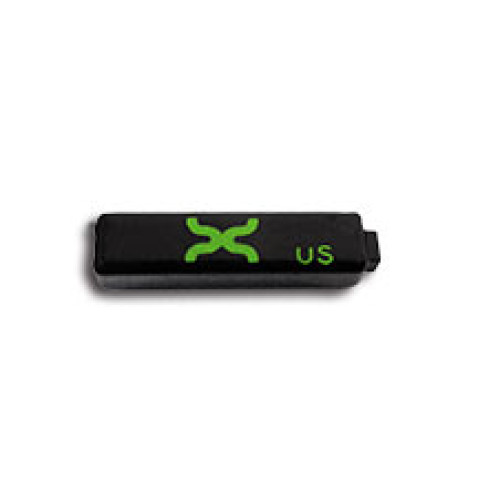

The XERAFY XS Dash is a cutting-edge RFID tag that expertly combines compact design with exceptional functionality for effective asset tracking and management. Featuring the advanced Alien Higgs 9 chip, it achieves a remarkable read range of up to 2 meters. Crafted to withstand harsh environments, this tag tolerates temperatures as high as 200°C and boasts an IP68 rating for waterproof resilience. Perfectly suited for a variety of uses, including hand tools, weapon management, and MRO tool oversight, the XS Dash emerges as the ultimate solution for tracking small assets reliably.

• Compact design: Ideal for use on small assets.
• Read range of 2 meters: Delivers an excellent performance-to-size ratio.
• High temperature tolerance: Can handle temperatures up to 200°C.
• IP68 certification: Completely waterproof and dustproof.

• RF Protocol: EPC global Class 1 Gen 2
• Frequency Range: 902-928 MHz (US); 865-868 MHz (EU)
• IC Type: Alien Higgs 9
• Chip Memory: 96 bits EPC, 96 bits TID, 688 bits user memory
• Reading Range: Up to 6.56 ft (2 m) for fixed readings; Up to 4.92 ft (1.50 m) for handheld
• Polarization: Linear
• Material: Ceramic
• Dimensions: 0.48 x 0.12 x 0.09 in (12.30 x 3 x 2.20 mm)
• Weight: 0.016 oz (0.44 g)
• Warranty: 1 year
