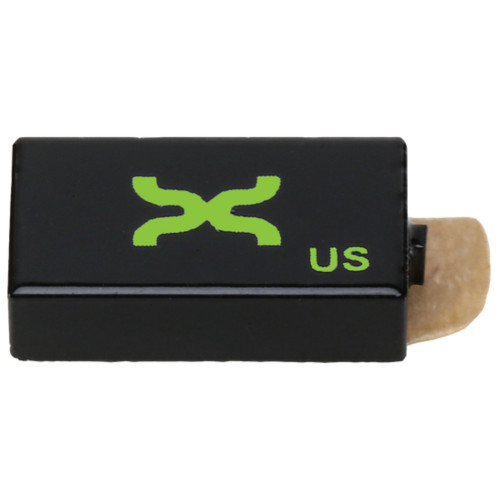

Xerafy RFID Tag
Part #: X3310-US001-M830 | SKU: XER797197

The XERAFY PICO Off is a robust RFID tag engineered for use on non-metal tools and devices. Utilizing the EPC global Class 1 Gen 2 protocol, it operates seamlessly within a frequency range of 902-928 MHz (US) and 865-868 MHz (EU). Its lightweight and compact design make it an excellent choice for tracking hand tools and IT equipment in tough environments. With a read range of up to 6.56 ft (2 m) when positioned away from metal objects, the PICO Off ensures reliable inventory management and asset visibility in various applications.

• 2m read range: Effectively tracks items away from non-metal surfaces.
• Compact dimensions: Perfectly sized for attachment to non-metal tools and devices.
• Durable design: Resistant to chemicals and extreme temperatures, and waterproof.
• Quick attachment: Compatible with mounting options such as epoxy, heat-shrink tubing, and adhesives.
• Individual identification: User memory for enhanced item-level tracking capabilities.

• Technical Specifications:
  • RF protocol: EPC global Class 1 Gen 2
  • Frequency: 902-928 MHz (US); 865-868 MHz (EU)
  • IC type: Alien Higgs 9
  • Chip memory: 96 bits EPC, 96 bits TID, 688 bits user memory
  • Read range: Up to 6.56 ft (2 m) off metal surfaces
  • Polarization: Linear
• Environmental Specifications:
  • Operational temperature: -40°C to +85°C
  • Survival temperature: -40°C to +150°C (up to 168 hours)
  • Peak temperature: 200°C
  • IP rating: IP68
  • Compression strength: 170 psi (1,176 kPa)
  • Shock resistance: Can withstand falls from 3 ft (1 m) onto concrete/granite
  • Vibration: Complies with MIL-STD-810G standards
  • Warranty: 1 year
• Physical Specifications:
  • Material: Ceramic
  • Dimensions: 0.50 x 0.28 x 0.12 in (12.80 x 7.08 x 3.08 mm)
  • Weight: 0.05 oz (1.40 g)
