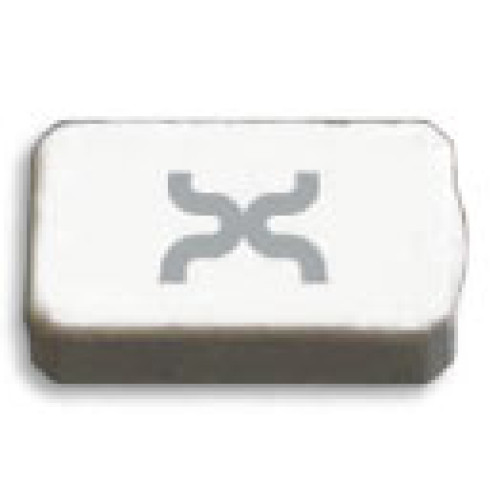

Xerafy RFID Tag
Part #: X3210-US000-M830 | SKU: XER797198

The XERAFY PICO In RFID tag is specifically designed for optimal tracking performance in even the harshest environments. Its compact ceramic form allows integration into small assets, especially tools and equipment that are prevalent in sectors like oil and gas. Capable of enduring high temperatures of up to 220°C and rated with IP68 for waterproofing, the PICO In ensures dependability in all circumstances. Whether it's embedded in metal or mounted on diverse surfaces, this tag promises lasting data retention for as long as 50 years, keeping your assets accurately monitored throughout their lifespan.

Key Features

• Embeddable: Ideal for embedding in metal surfaces
• Compact size: Suited for confined spaces
• High temperature endurance: Operates safely at temperatures reaching 220°C
• IP68 classification: Completely waterproof for dependable outdoor applications

Specifications

• Technical Specifications:
  • RF protocol: EPC global Class 1 Gen 2
  • Frequency: 902-928 MHz (US); 865-868 MHz (EU)
  • IC type: Alien Higgs 9
  • Chip memory: 96 bits EPC, 96 bits TID, 688 bits user memory
  • Read range (fixed): Up to 6.56 ft (2 m)
  • Read range (handheld): Up to 4.59 ft (1.40 m)
• Environmental Specifications:
  • Operational temperatures: -40°C to +85°C
  • Survival temperatures: -40°C to +150°C (168 hours)
  • Shock resistance: 3 ft (1 m) to concrete/granite
  • Vibration compliance: MIL-STD-810G
• Physical Specifications:
  • Material: Ceramic
  • Dimensions: Ø 0.50 x 0.28 x 0.12 in (12.80 x 7.08 x 3.08 mm)
  • Weight: 0.05 oz (1.40 g)
• Compliance:
  • RAIN RFID
  • REACH
  • ROHS CE ETSI
