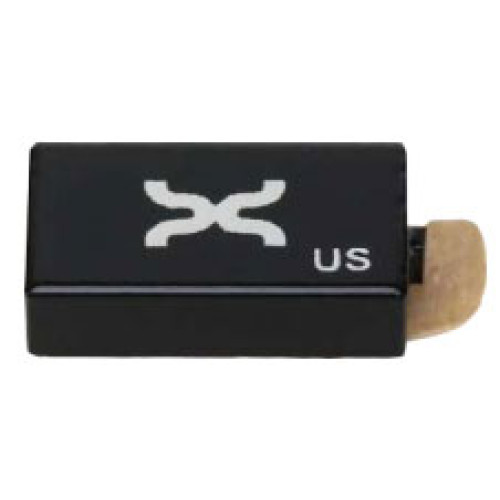

Xerafy RFID Tag
Part #: X3110-US001-M830 | SKU: XER797196

The XERAFY PICO ON is an innovative RFID tag that combines compactness with high performance, specially designed for harsh environmental conditions. Built with advanced technology, including the Alien Higgs 9 chip, it supports impressive read range capabilities of up to 9.84 feet (3 meters) and operates effectively at extreme temperatures up to 200°C. Its IP68 waterproof rating ensures complete protection against moisture and dust, making it an ideal solution for diverse sectors, such as manufacturing, aerospace, and oil & gas. Opt for the PICO ON to achieve exceptional reliability and performance even in the most demanding situations.

Key Features

• Compact design: Ideal for tracking small assets
• High-temperature durability: Resists temperatures up to 200°C
• Impressive read range: Up to 3 meters for outstanding efficiency
• IP68 protection: Fully waterproof for versatile applications

Specifications

• Technical Specifications:
  • RF protocol: EPC global Class 1 Gen 2
  • Frequency: 902-928 MHz (US); 865-868 MHz (EU)
  • IC type: Alien Higgs 9
  • Chip memory: 96 bits EPC, 96 bits TID, 688 bits user memory
  • Read range (fixed): Up to 9.84 ft (3 m)
  • Read range (handheld): Up to 6.56 ft (2 m)
  • Polarization: Linear
• Environmental Specifications:
  • Operational temperature: -40°C to +85°C
  • Survival temperature: -40°C to +150°C (168 hours)
  • Peak temperature: 200°C
  • IP rating: IP68
  • Compression strength: 170 psi (1,176 kPa)
  • Shock resistance: 3 ft (1 m) drop to concrete/granite
  • Vibration: MIL-STD-810G compliant
• Physical Specifications:
  • Material: Ceramic
  • Dimensions: 0.50 x 0.28 x 0.12 in (12.80 x 7.08 x 3.08 mm)
  • Weight: 0.05 oz (1.40 g)
• Mounting Systems:
  • Industrial adhesive
• Warranty: 1 year
