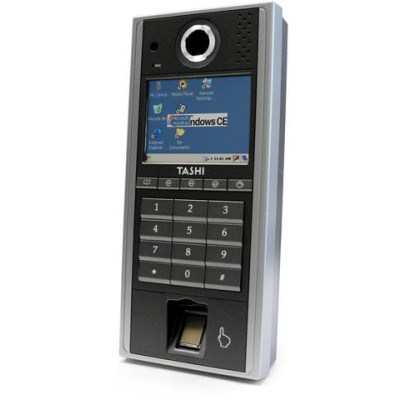

Unitech MT380 TASHI Terminal

Unitech MT380 TASHI Terminal

The Unitech MT380 TASHI is one of the most compact IP based Time & Attendance and Access Control terminals on the market. It can be applied to many applications via a Windows CE 5.0 operating system. Ensure security with one of several supporting auto ID proximity readers: Fingerprint, HID and EM. The MT380 TASHI features an embedded 2-megapixel camera and microphone helps to verify identification. Also, data input is seamless with a large numeric keypad, function keys and 3.5-inch QVGA color touch-screen. And the MT380 TASHI supports Ethernet or wireless Wi-Fi communication. The Unitech MT380 TASHI is programmable through a software development kit. In addition, a comprehensive and ready to use T & A application template is provided on the terminal.
Starting at: Price: $1,055.30
See all options
INTERNAL PERFORMANCE
Operating System Windows CE 5.0 Professional
CPU 520MHz Intel PXA270 Processor
Memory 128 MB SDRAM / 64 MB Flash ROM
EXTERNAL CHARACTERISTICS
Dimension 8.9"L x 3.9"W x 1.3"H
Weight 1.06 lbs.
Display 3.5" QVGA (landscape 240 x 320 pixels)
color touch-screen, TFT-LCD
Keypad 17 hard keys:
12 numeric keys
Five function keys
MULTIMEDIA FEATURES
Camera 2-megapixel CMOS
Audio Output 0.8/2 Watt speaker
Microphone Input
COMMUNICATION
RS232 One RJ45 Support:
TX+, TX-, RX+, RX-
RS485 One RJ45 Support:
TX+, TX-, RX+, RX-
Ethernet One RJ45 with PoE (DC 5V / 2A)
USB V1.1 Host
Wireless 802.11b/g via SDIO slot
BATTERY & POWER
Battery 3.7V Li-Ion 1200mAh rechargeable battery pack
Backup Battery Embedded battery cell
Charging Time 12-hours
Mini UPS Operation Time 1-hour operation
3-days data backup
Power Input 12V / 2A
CONNECTION & EXPANSION
SDHC Slot Memory
Wireless Communication
Output Relays Two:
2A / 30Vdc
0.5 / 250Vac
Photo-Coupler Inputs Two:
3.3V ~ 12V
Ethernet Connection
Power-over-Ethernet (Optional)
PROXIMITY READER
EM 125 kHz
HID 125 kHz
MiFare (Optional) 13.56 MHz
ISO14443A
ISO14443A/B
ISO159693
FINGERPRINT READER
Mark 1-to-1
Verification time, 0.4 sec. per template
Capacity of Fingerprint 100 templates
SOFTWARE PROGRAMMING TOOLS
TAS SDK, API for I/O drivers
C#, VB.NET, C++
FIELD ENVIRONMENT
Mounting In-Wall
On-Wall
Operating Temperature 32?F to 122?F (0?C to 50?C)
Storage Temperature -4?F to 158?F (-20?C to 70?C)
Humidity 5% to 95% RH non-condensing
IN THE BOX
MT380
AC Adapter
USB Cable
RS232 Input Cable
RS232 Output Cable
Stylus
Terminal Block
Test Proximity Card
CD with Manuals / SDK

Extended Details
Refine Your Options
  1. MT380-THEEAG-B - Unitech MT380 TASHI Fixed/Vehicle Mount Data Terminal

    MT380 TASHI, MT380 Wireless TASHI Terminal (HID Prox Bundle with Cables for Development Use)
    MSRP: $1,465.00 Price: $1,055.30
    Ship Free
  2. MT380-A7WEAG-B - Unitech MT380 TASHI Fixed/Vehicle Mount Data Terminal

    MT380 TASHI, MT380 Wireless TASHI Terminal (USB and RS-232 Cables, Wi-Fi and Ethernet)
    MSRP: $1,765.00 Price: $1,271.50
    Ship Free
  3. MT380-TIME-ATTENDANCE - Unitech MT380 TASHI Fixed/Vehicle Mount Data Terminal

    MT380 TASHI, Bundle includes MT380 TASHI unit (Part# MT380-TEEEAG-B), 1-year service contract and Time & Attendance software.
    Call For Price
  4. MT380-RHEEAG - Unitech MT380 TASHI Fixed/Vehicle Mount Data Terminal

    MT380 TASHI, HID Proximity, CE 6.0, Power Adapter
  5. MT380-MFSEAG - Unitech MT380 TASHI Fixed/Vehicle Mount Data Terminal

    MT380 TASHI, Biometric, Camera, CE 6.0, Power Adapter - (UPS Battery Not Included)
  6. MT380-MHEEAG - Unitech MT380 TASHI Fixed/Vehicle Mount Data Terminal

    MT380 TASHI, HID Proximity, Camera, CE 6.0, Power Adapter
  7. MT380-R0SEAG - Unitech MT380 TASHI Fixed/Vehicle Mount Data Terminal

    MT380 TASHI, CE 6.0, Power Adapter - (UPS Battery Not Included)
  8. MT380-M6EEAG - Unitech MT380 TASHI Fixed/Vehicle Mount Data Terminal

    MT380 TASHI, HID Proximity, Biometric, Camera, CE 6.0, Power Adapter
  9. MT380-R9EEAG - Unitech MT380 TASHI Fixed/Vehicle Mount Data Terminal

    MT380 TASHI, EM Proximity, Biometric, CE 6.0, Power Adapter
  10. MT380-MEEEAG - Unitech MT380 TASHI Fixed/Vehicle Mount Data Terminal

    MT380 TASHI, EM Proximity, Camera, CE 6.0, Power Adapter
