Replacement Part is Available

The MiniMag Intelligent Swipe Reader is designed for POS and desktop applications where space is at a premium. The entire unit is just 90 mm long (about the length of a credit card) giving it the smallest footprint of any unit with comparable features. The MiniMag is a fully intelligent swipe reader that can be programmed to divide rearrange edit and validate fields of entered data. It can also automatically distinguish AAMVA and CA DMV formats. The MiniMag reads up to three tracks of information with a single swipe in either direction. Its standard-length slot makes it easy to use. Both beeper and LED indicators signal a successful read. The MiniMag Intelligent Swipe Reader delivers exeptional functionality and value in the smallest possible package. It can be used as a free-standing unit or permanently mounted with threaded inserts on the bottom of the reader. TTL RS-232 Keyboard wedge and USB-Keyboard interfaces are available.

Starting at: MSRP: $138.88 Price: $45.63

Home
Brands
Unitech
Unitech Card Scanner
Unitech MSR200

Product was successfully added to your shopping cart.

Continue Shopping

model-3513 model-3513 model-3513 Unitech

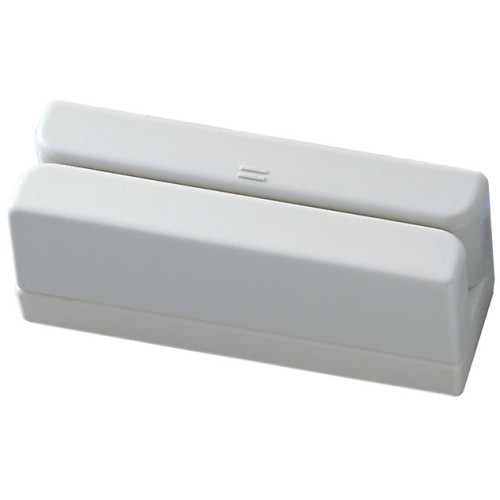

Unitech MSR200 Credit Card Reader

The MSR200 is avaliable in dual and triple track configurations for reading ISO cards and driver's licenses. Readers can be attached to most computer keyboards or to any flat surface. When using the Keyboard wedge interface no programming software drivers or external power is required. Just connect the reader to the keyboard and the keyboard port on almost any PC and you're ready to read magnetic stripe cards. Data is read from the card and sent to the PC just as if it were entered from the keyboard. The MSR200 is low-power CMOS so no external power source is required. Cards can be swiped and read in both directions. An LED provides feedback to the user indicating ready to read or read error.

Discontinued - Need Assistance

See all options

Specs & Info
All Options

Unitech MSR200 Specs (pdf)

Features:

Low power CMOS design
Keyboard emulation
Bi-directional read capability
Conforms to ISO 7811, ANSI x4.16 & AAMVA (Driver Licenses) standards
Available with IBM PC XT/AT, PS/2 and RS232 interface
Read dual or triple track cards
Compact and lightweight enclosure
May be mounted on a keyboard or a flat surface
Provides feedback by LED and buzzer
1 year warranty

Unitech's Keyboard Wedge and RS232 readers provide a simple and reliable magnetic stripe reading solution for a variety of situations. Our intelligent readers are the right tool for applications such as point of sale, access control, and self-service applications. Known for their reliability, they are easy to install and use. The MSR200 is available in dual and triple track configurations for reading ISO cards and driver's licenses. Readers can be attached to most computer keyboards or to any flat surface. When using the keyboard wedge interface, no programming, software drivers, or external power is required. Just connect the reader to the keyboard and the keyboard port on almost any PC and you're ready to read magnetic stripe cards. Data is read from the card and sent to the PC just as if it were entered from the keyboard. The MSR200 is low-power CMOS, so no external power source is required. Cards can be swiped and read in both directions. An LED provides feedback to the user indicating ready to read or read error.

Extended Details

Refine Your Options

Credit Card Reader
Part #: MSR200-12 | SKU: UNI4534

MSR200, Keyboard wedge, Tracks 1 and 2, AT Connector, Decoded, with Cable
Credit Card Reader
Part #: MSR200-12R | SKU: UNI4536

MSR200, RS-232, Tracks 1 and 2, Decoded, with Cable and AC Adapter
Credit Card Reader
Part #: MSR200-33 | SKU: UNI4537

MSR200, Keyboard wedge, Tracks 1, 2, and 3, AT Connector, Decoded, with Cable

Recommended Accessories for Model: Unitech MSR200 Credit Card Reader

Unitech Cables, Connectors, and Adapters
Part #: 5610679000 | SKU: UNI186480

MSR206 RS-232 CABLE

MSRP: $28.00 Price: $18.20
Unitech Power Device
Part #: 101000-0150 | SKU: UNI4520

Power Adapter, 110V

MSRP: $33.00 Price: $21.45
Unitech Power Device
Part #: 1010-601873G | SKU: UNI253639

Unitech Universal AC Adapter for Scanners

MSRP: $20.00 Price: $13.00
Unitech Cables, Connectors, and Adapters
Part #: 5611481000-R | SKU: UNI230868

Unitech USB Data Transfer Cable - USB Data Transfer Cable for Card Reader - USB
Unitech MSR Accessory
Part #: 400140-Z010 | SKU: UNI4543

MS140 Mounting Brackets (set of 2)
