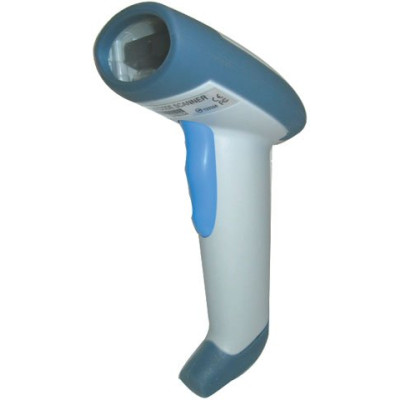

Unitech MS330 Barcode Scanner

Unitech MS330 Barcode Scanner

Unitech MS330 Barcode Scanner

The MS330 from Unitech delivers easy-to-use, reliable performance at an affordable price for barcode reading applications in retail, office automation, post office, health care, and many others in light industry.
See all options
Unitech MS330 Specs Unitech MS330 Specs (pdf)
Optical
Light source 660 nm red LED
Sensor 3000 element linear array
Scan rate 50 scans/sec.
Print contrast 45% minimum absolute dark/light reflectance @ 660 nm
Scanning width 7.08" (180mm) maximum

Decoder

Symbologies China Postal Code
Codabar
Code 11
Code 32
Code 39 (full ASCII)
Code 39 (Standard)
Code 93
Code 128
Delta Code
EAN-8 with add-on code
EAN-13 with add-on code
EAN 128
Interleaved 2 of 5
ISBN / Bookland EAN
Italian Pharmacy
Label Code IV
Label Code V
MSI / Plessey
Standard 2 of 5
Toshiba Code
UPC-A with add-on code
UPC-E with add-on code
Operation Trigger, flash, and continuous modes
Data editing Preamble, postamble, Code id, and data reformatting
Function keys PC, Macintosh, and IBM terminal keyboard

Electrical

Operating voltage 5V ?5%
Current Standby: ā‰¤80 mA (switch mode)
Operating: 175 mA (keyboard wedge)

Communication and I/O

Interfaces supported Keyboard wedge
RS232
USB
Wand emulation

Mechanical

Weight 164g
Dimensions Length (horizontal): 3.9 Inches (100mm)
Height (vertical): 7.1 Inches (180mm)
Width: 2.75 Inches (70mm)

Environmental

Operating temperature 32Ā°F to 122Ā°F (0Ā°C to 50Ā°C)
Storage temperature -4Ā°F to 140Ā°F (-20Ā°C to 60Ā°C)
Humidity 20% to 85% RH non-condensing
ESD protection Functional after 8K Contact and 12K Air
Drop Test 5 feet (1.5 meters) onto concrete
Regulatory approvals CE
FCC
BSMI
Warranty 3 years
Extended Details
Refine Your Options
Shop By
Shopping Options
Scanner Capability
  1. 1D (5)
  1. Unitech Barcode Scanner

    Unitech Barcode Scanner
    Part #: MS330-1 | SKU: UNI15969

    Unitech MS330 Bar Code Reader - Wired - CCD
  2. Unitech Barcode Scanner

    Unitech Barcode Scanner
    Part #: MS330-1U | SKU: UNI15970

    Long Range Scanner with USB Interface Cable
  3. Unitech Barcode Scanner

    Unitech Barcode Scanner
    Part #: MS330-1G | SKU: UNI23859

    Unitech MS330 Bar Code Reader - Wired - CCD
  4. Unitech Barcode Scanner

    Unitech Barcode Scanner
    Part #: MS330-1U1 | SKU: UNI26598

    MS330 Long Range CCD Scanner Kit (with Hands-Free Stand and USB Cable 1550-201423)
  5. Unitech Barcode Scanner

    Unitech Barcode Scanner
    Part #: MS330-1K | SKU: UNI32240

    Unitech MS330-1K Bar Code Reader - Wired - CCD
