The Unitech MS246 is an intelligent, programmable magnetic stripe reader that provides a wide range of functionality and value in a convenient package size. The entire unit is just 100 mm long, about the length of a credit card. It reads up to three tracks of information with a single swipe in either direction, and has a beeper and three-color LED indicator to signal a successful read. The MS246 provides easy USB connectivity and OPOS driver support, and it is programmable so that the data format and output can be configured to match application and communication requirements.

Starting at: MSRP: $94.00 Price: $61.10

Home
Brands
Unitech
Unitech Card Scanner
Unitech MS240

Product was successfully added to your shopping cart.

Continue Shopping

model-3485 model-3485 model-3485 Unitech

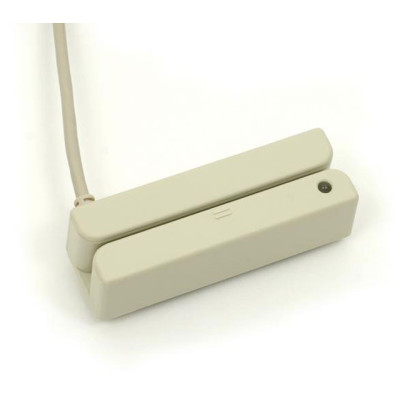

Unitech MS240 Credit Card Reader

Unitech's MS240 reader provides a simple, reliable, and versatile magnetic stripe reading solution for all your MSR needs. The MS240 is the perfect MSR tool for applications such as point of sale, access control, and self-service applications. Known for their reliability, they are easy to install and use. The MS240 is available in dual and triple track configurations for reading ISO cards and driver's licenses. Readers can be affixed to most computer keyboards or to any flat surface, and connected to any PC or Mac via Keyboard wedge or USB interface.

See all options

Specs & Info
All Options

Mechanical

Magnetic Stripe Formats	ISO 7811, AAMVA, & CA DMV
Swipe Speed	3 to 55 inches per second, bi-directional
Card Width	0.010 to 0.050 inches
Slot Width	0.055 inches (1.37mm)
Interface	Unitech standard decoding with advanced output data editing
Dimensions	Length: 3.94 inches (100mm) Width: 1.38 inches (35mm) Height: 1.18 inches (30mm)
Weight	Approximately 9 oz. (255 grams) with cable
Color	Beige
Cable Length	6 feet (1.83 meters)
Connectors	PS/2 keyboard wedge & USB
Mounting	2 mounting holes with brass threaded inserts Velcro strips

Reliability

Electronics MTBF	125,000 POH
Magnetic Head Life	1,000,000 passes minimum
Rail and Cover Life	1,000,000 passes minimum
Read Rate	Less than one error in 100,000 bits on cards conforming to ISO 7811 1-5 (not caused by operator error)

Environmental

Operating temperature	32°F to 131°F (0°C to 55°C)
Storage temperature	-22°F to 158°F (-30°C to 70°C)
Humidity	Maximum - 95% non-condensing
Warranty	1 year

Extended Details

Refine Your Options

Unitech Credit Card Reader
Part #: MS240-2K | SKU: UNI15384

Unitech MS240-2K Magnetic Stripe Reader - Keyboard Wedge
Credit Card Reader
Part #: MS240-3K | SKU: UNI15385

Unitech MS240 Magnetic Stripe Reader - Keyboard Wedge - Beige
Credit Card Reader
Part #: MS240-3U | SKU: UNI15387

Unitech MS240 Magnetic Stripe Reader - USB - Beige
Credit Card Reader
Part #: MS241-3UG | SKU: UNI26595

Unitech MS241 Magnetic Stripe Reader - Triple Track - 55 in/s
Credit Card Reader
Part #: MS240-3UG | SKU: UNI29630

Unitech MS240 Magnetic Stripe Reader - Keyboard Wedge - Beige
