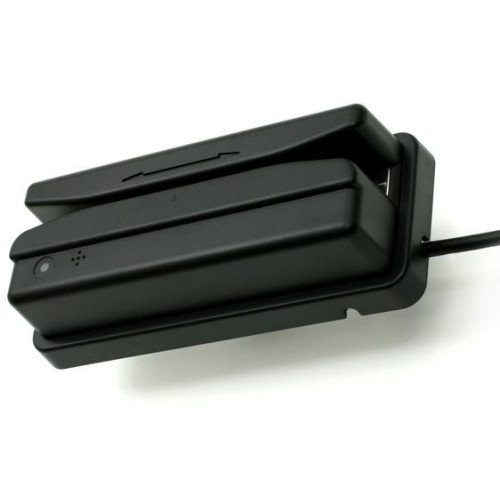

Unitech MS146 Barcode Card Reader

Unitech MS146 Barcode Card Reader

The MS146 family of barcode slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS146 is capable of reading any barcoded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base, rugged housing, and IP54 rated sealing make the MS146 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction. Currently, the MS146 is available in USB interface. Decoded versions are easy to use and configure. All decoded MS146s can be configured with Scanner Configuration Manager software. And configurations can be duplicated in other units by generating custom setup labels.
Starting at: MSRP: $117.00 Price: $76.05
See all options
  • 2 year warranty
  • 50 mm to 750 mm/sec Scan Rate
  • 6 mil minimum resolution
  • Advanced Data Editing
  • Easy to use and configure
  • IP54 rated
  • Reads most popular barcode symbologies
  • Reads visible and laminated barcode labels
  • Rugged, lightweight housing
  • Wide slot allows thicker badges
OPTICAL

Light source Visible light: 660 nm LED (MS146)
Infrared: 930 nm LED (MS146I)
Sensor Photo diode
Resolution 6 mils (0.15mm) minimum
Depth of field 2 mm
Scan rate 2.0" (50 mm) to 30" (750 mm)/second
Print contrast ratio 0.6
INTERFACE

Connector PC XT / AT / PS/2
Macintosh
RS232
TTL (undecoded)
Operation modes Continuous
Signal Open collector, black = high level (TTL)
MECHANICAL

Dimensions 3.75 Inches (95mm)
1.375 Inches (35mm)
1.875 Inches (30mm)
Weight 6.7 oz. (190g) with cable
Case material ABS plastic
ELECTRICAL

Operating current Undecoded: 35 mA
Decoded: 70mA
Cable 6.0 ft. (1.83m)
DECODER

Symbologies China Postal Code
Codabar
Code 11
Code 32
Code 39 (full ASCII)
Code 39 (Standard)
Code 93
Code 128
Delta Code
EAN-8 with add-on code
EAN-13 with add-on code
EAN 128
Interleaved 2 of 5
ISBN / Bookland EAN
ISBT 128
Italian Pharmacy
Label Code IV
Label Code V
MSI / Plessey
Standard 2 of 5
Toshiba Code
UPC-A with add-on code
UPC-E with add-on code
Data Editing Almost unlimited
Configuration Scanner Configuration Manager software
Scanned-in bar codes
ENVIRONMENTAL

Operating temperature 32 to 122Ā°F (0 to 50Ā°C)
Storage temperature -4 to 140Ā°F (-20 to 60Ā°C)
Humidity 0% to 95% RH non-condensing
Mechanical shock 5 ft. (1.5 m) drop to concrete
Environmental sealing IP54
Warranty 2 years
Extended Details
Refine Your Options
Shop By

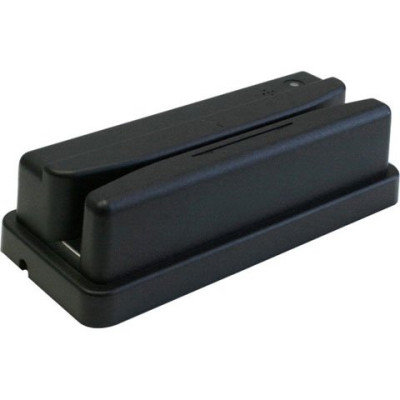

  1. Unitech Credit Card Reader
    Part #: MS146-IUCB00-SG | SKU: UNI336110

    Fixed Card Reader - Unitech MS146 - Infrared - USB - Reads 1D Barcodes
    MSRP: $170.00 Price: $110.50
    In Stock
  2. Unitech Credit Card Reader
    Part #: MS146-IUCB0M-SG | SKU: UNI336111

    Fixed Card Reader - Unitech MS146 - Infrared - USB - Mounting Bracket - Reads 1D Barcodes
    MSRP: $178.00 Price: $115.70
    In Stock
  3. Unitech Barcode Card Reader
    Part #: MS146-RUCB0M-SG | SKU: UNI336114

    Fixed Card Reader - Unitech MS146 - LED - USB - Mounting Bracket - Reads 1D Barcodes
    MSRP: $176.00 Price: $114.40
    In Stock
  4. Unitech Credit Card Reader
    Part #: MS146-ITCB00-SG | SKU: UNI336109

    Fixed Card Reader - Unitech MS146 - Infrared - 9-Pin Squeeze - Reads 1D Barcodes
    MSRP: $117.00 Price: $76.05
    In Stock
  5. Unitech Credit Card Reader
    Part #: MS146-IRCB00-SG | SKU: UNI336107

    Fixed Card Reader - Unitech MS146 - Infrared - RS-232 Cable - Reads 1D Barcodes
    MSRP: $170.00 Price: $110.50
    In Stock
  6. Credit Card Reader
    Part #: MS146-RRCB00-SG | SKU: UNI336112

    Fixed Card Reader - Unitech MS146 - LED - RS-232 Cable - Reads 1D Barcodes
    MSRP: $158.00 Price: $102.70
  7. Credit Card Reader
    Part #: MS146-IRCB0M-SG | SKU: UNI336108

    Fixed Card Reader - Unitech MS146 - Infrared - RS-232 Cable - Mounting Bracket - Reads 1D Barcodes
    MSRP: $178.00 Price: $115.70
  8. Credit Card Reader
    Part #: MS146-RTCB00-SG | SKU: UNI638208

    Fixed Card Reader - Unitech MS146 - Visual Light - 9-Pin Squeeze - Reads 1D Barcodes
    MSRP: $127.00 Price: $82.55
  9. Unitech Credit Card Reader
    Part #: MS146-RUCB00-SG | SKU: UNI336113

    Fixed Card Reader - Unitech MS146 - LED - USB - Reads 1D Barcodes
  10. Unitech Barcode Card Reader
    Part #: MS146-3PS2G | SKU: UNI23851

    Unitech MS146 Slot Bar Code Reader - Wired - Photo Diode

Items 1 to 10 of 19 total

Page:
  1. 1
  2. 2

Recommended Accessories for Model: Unitech MS146 Barcode Card Reader

  • Unitech Accessory
    Part #: 5610679000 | SKU: UNI186480

    MSR206 RS-232 CABLE
    MSRP: $28.00 Price: $18.20
  • Unitech Power Device
    Part #: 101000-0150 | SKU: UNI4520

    Power Adapter, 110V
    MSRP: $33.00 Price: $21.45
  • Unitech MS335 Power Device
    Part #: 1010-601873G | SKU: UNI253639

    Unitech Universal AC Adapter for Scanners
    MSRP: $20.00 Price: $13.00
  • Unitech Accessory
    Part #: 5611481000-R | SKU: UNI230868

    Unitech USB Data Transfer Cable - USB Data Transfer Cable for Card Reader - USB
  • Unitech MSR Accessory
    Part #: 400140-Z010 | SKU: UNI4543

    MS140 Mounting Brackets (set of 2)
