model-3511 model-3511 model-3511 Unitech

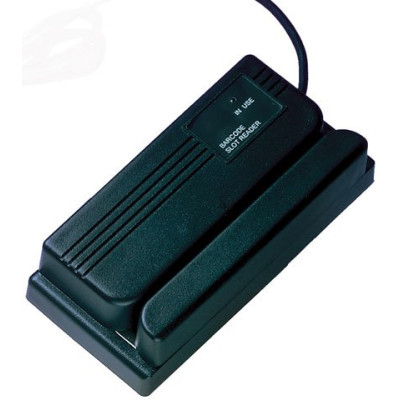

Unitech MS140 Barcode Card Reader

Unitech MS140 Barcode Card Reader

Unitech MS140 Barcode Card Reader

The MS140 family of barcode slot readers is a flexible cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm) the MS140 is capable of reading any barcoded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base and rugged housing make the MS140 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction.
Discontinued - Need Assistance
See all options
Unitech MS140 Specs Unitech MS140 Specs (pdf)

Features:

  • Available with TTL, keyboard wedge and RS232 interfaces
  • Reads most popular bar code symbologies
  • Easy to use and configure
  • 50 mm to 750 mm/sec Scan Rate
  • 6 mil minimum resolution
  • Reads visible and laminated bar code labels
  • Advanced Data Editing
  • Rugged, lightweight housing
  • Wide slot allows thicker badges
  • 1 year warranty

The MS140 family of bar code slot readers is a flexible, cost effective solution when you demand a reliable and rugged slot reader. With a resolution of up to 6 mils (0.15 mm), the MS140 is capable of reading any bar coded identification badge. It's sealed optical system is available in both visible light or infrared. The infrared units ensure accurate reading of either visible and laminated badges. Its water resistant base and rugged housing make the MS140 a popular choice in any environment. An optional mounting bracket is available to safely secure the unit in any direction. Like most of our products, the MS140 is available with a variety of interfaces, including undecoded (TTL), keyboard wedge (XT/AT, PS/2 and Macintosh), and RS232. All Unitech undecoded products have pen output and can be connected to any of the our wedge line or to any external device that accepts pen input. Decoded versions are easy to use and configure. Both the keyboard wedge and RS232 can be configured on-screen by selecting the desired options from a menu. And the configuration can be reproduced in other units by generating custom setup labels.

Extended Details
Refine Your Options
  1. Barcode Card Reader

    Barcode Card Reader
    Part #: MS140A | SKU: UNI4525

    Thermal transferL, with DB9 Squeeze and Release connector, Undecoded - requires power supply, see accessories.
  2. Barcode Card Reader

    Barcode Card Reader
    Part #: MS140-2 | SKU: UNI4526

    RS-232, with DB9 Connector, Decoded - requires power supply, see accessories.
  3. Unitech Barcode Card Reader

    Unitech Barcode Card Reader
    Part #: MS140I-3 | SKU: UNI4528

    Unitech MS140I Bar Code Slot Reader - Wired - Photo Diode
  4. Barcode Card Reader

    Barcode Card Reader
    Part #: MS140-3 | SKU: UNI4529

    Unitech MS140-3 Bar Code Slot Reader - Photo Diode
  5. Barcode Card Reader

    Barcode Card Reader
    Part #: MS140-3PS/2 | SKU: UNI4531

    Unitech MS140-3PS/2 Bar Code Slot Reader - Photo Diode

5 Item(s)

Recommended Accessories for Model: Unitech MS140 Barcode Card Reader

  • Unitech Cables, Connectors, and Adapters
    Part #: 5610679000 | SKU: UNI186480

    MSR206 RS-232 CABLE
    MSRP: $28.00 Price: $18.20

  • Unitech Power Device
    Part #: 101000-0150 | SKU: UNI4520

    Power Adapter, 110V
    MSRP: $33.00 Price: $21.45

  • Unitech Power Device
    Part #: 1010-601873G | SKU: UNI253639

    Unitech Universal AC Adapter for Scanners
    MSRP: $20.00 Price: $13.00

  • Unitech Cables, Connectors, and Adapters
    Part #: 5611481000-R | SKU: UNI230868

    Unitech USB Data Transfer Cable - USB Data Transfer Cable for Card Reader - USB

  • Unitech MSR Accessory
    Part #: 400140-Z010 | SKU: UNI4543

    MS140 Mounting Brackets (set of 2)
View All Options
