82398 82398 82398 TSC
TSC Barcode Label Printer TSC Barcode Label Printer TSC Barcode Label Printer TSC Barcode Label Printer

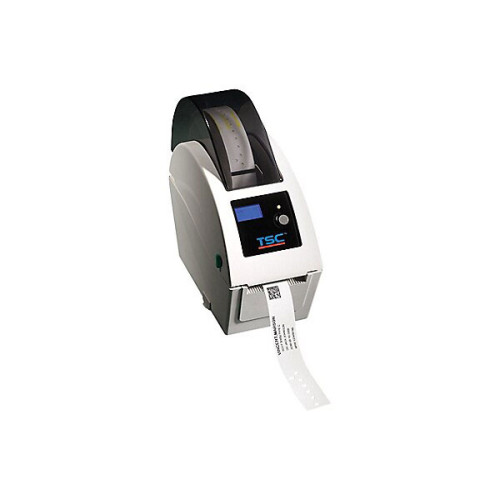

TSC Barcode Label Printer
Part #: 99-039A002-41LF | SKU: TSC82398

The TSC TDP-225W Wristband was developed specifically to meet the needs of printing wristbands for healthcare patient ID and entertainment wristband ticketing applications. Unlike any other direct thermal sold, the TDP-225W Wristband features a small footprint that supports full 6.5" OD rolls of wristbands right out of the box. The easy-to-use design provide an easy-load spring loaded center biased wristband holder that supports 1" core that is common to full 6.5" OD rolls sold by major wristband manufacturers. Other outstanding features include an LCD display to provide printer status, USB 2.0 and Ethernet connectivity.

TSC Barcode Label Printer

Part Details: TDP-225W Wristband, TDP-225W Wristband Desktop Printer, Accept media up to 6.5 Outer Diameter, 1 to 1.5" inner core, USB and Ethernet interfaces.
InStock
Need a different version of the TSC TDP-225W Barcode Label Printer? View all 5 configurations

Additional Information

Included Features microSD Flash Memory Slot
Interface Options Ethernet, USB
Manufacturer TSC
Max Roll Outer Diameter 5
Model Name TDP-225W
Print Resolution 203 dpi
Print Speed 5 ips
Printer Type Desktop
Printing Technology Direct Thermal
TSC TDP-225W Specs TSC TDP-225W Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 5 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 2.05"
  • Recommended Use: Label Print
  • Features: Real Time Clock
  • Barcode Symbology Supported:
    • Code 39
    • Code 93
    • Code 128
    • UCC
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • Codabar
    • Interleaved 2 of 5
    • EAN-8
    • EAN-13
    • EAN 128
    • UPC-A
    • UPC-E
    • EAN With 2 or 5 Digit Extension
    • UPC -2 Digits Add-on
    • MSI
    • Plessey
    • POSTNET
    • China Post
    • RSS-14
    • Code 11
    • PDF-417
    • Maxi Code
    • QR Code
    • Aztec Code
    • Data Matrix

General Information

  • Product Type: Direct Thermal Printer
  • Product Series: TDP
  • Brand Name: TSC Auto ID
  • Manufacturer: TSC Auto ID Technology Co., Ltd
  • Product Model: TDP-225W
  • Product Name: TDP-225W Wristband Label Printer

Physical Characteristics

  • Height: 8.3"
  • Width: 4.3"
  • Depth: 10.2"

Interfaces/Ports

  • USB: Yes

Other

  • Platform Supported: PC
  • Package Contents:
    • TDP-225W Wristband Label Printer
    • Software and Driver CD
    • Quick Start Guide
    • USB Port Cable
    • Power Cord
    • External Universal Switching Power Supply
    • TDP-225W Wristband Label Printer
    • Software and Driver CD
    • Quick Start Guide
    • USB Port Cable
    • Power Cord
    • External Universal Switching Power Supply
  • Certifications & Standards:
    • FCC Class B
    • CE Class B
    • C-Tick Class B
    • UL
    • CUL
    • TÜV/Safety
    • CCC

Media Types & Handling

  • Maximum Label Width: 2.05"
  • Maximum Label Length: 90"
  • Media Type:
    • Continuous Label
    • Die-cut Label
    • Black Mark
    • Fanfold
    • Notch
    • Wristband
  • Media Thickness: 7.48 mil
  • Media Sensor:
    • Transmissive Media Sensor
    • Reflective Media Sensor
    • Cover Open Sensor
  • Label Core Size: 1.50"
  • Maximum Roll Diameter: 6.50"

Memory

  • Standard Memory: 8 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: microSD
  • Memory Technology: SDRAM
  • Flash Memory: 4 MB

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Power Source: AC Supply

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 2 Year

Display & Graphics

  • Display Screen Type: LCD

Fonts & Emulation

  • Language Emulation: TSPL-EZ
Extended Details
