Tripp-Lite Products
Part #: SMART1500LCD | SKU: TRI257463

Products and parts from Tripp-Lite.

Tripp-Lite Products

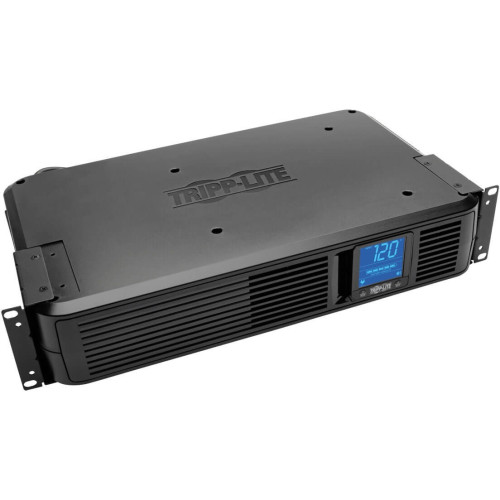

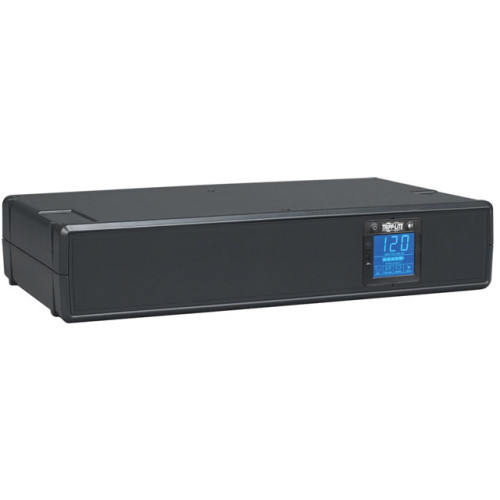

Part Details: Tripp Lite UPS Smart 1500VA 900W Rackmount Tower Battery Back Up LCD AVR 120V USB DB9 RJ45 - 2U Rack/Tower - 8 Hour Recharge - 3.50 Minute Stand-by - 110 V AC Input - 120 V AC, 120 V AC Output - 8 x NEMA 5-15R

InStock

Need a different version of the Tripp-Lite Accessory? View all 1434 configurations

MSRP: $533.52 Price: $394.15

In Stock

Specs & Info

Additional Information

Manufacturer	Tripp-Lite
Model Name	Parts

Technical Information

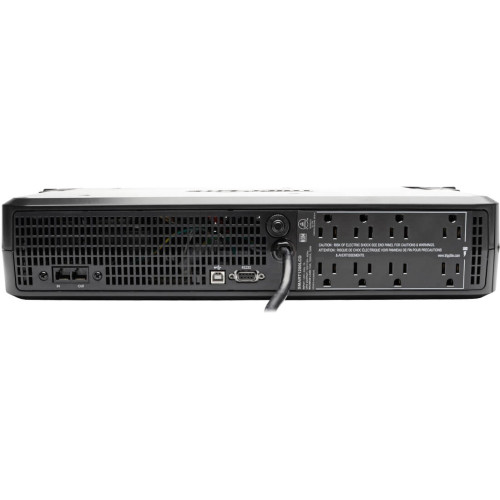

Receptacles: 8 x NEMA 5-15R
Plug/Connector Type: NEMA 5-15P
Protection Type:
- Brownout
- Over Voltage
Cord Length: 6 ft
Dataline Protection: RJ-45

General Information

Product Type: Line-interactive UPS
Brand Name: Tripp Lite
Manufacturer: Tripp Lite
Product Name: SmartPro 1500 VA Rackmount/Tower Digital UPS
Product Line: SmartPro

Physical Characteristics

Height: 17.3"
Width: 3.5"
Depth: 10.5"
Rack Height: 2U

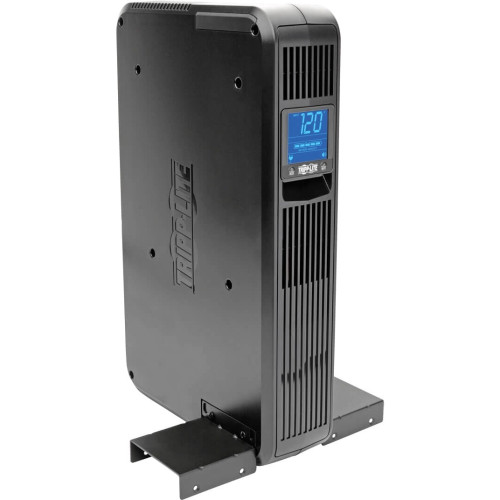

Form Factor: Tower/Rack Mountable
Weight (Approximate): 29 lb
Color: Black

Interfaces/Ports

USB: Yes
Serial Port: Yes

Other

Country of Origin: China
Package Contents:
- SmartPro 1500 VA Rackmount/Tower Digital UPS
- USB Cable
- Serial Cable
- Mounting Hardware
- Manual with Warranty Information
- SmartPro 1500 VA Rackmount/Tower Digital UPS
- USB Cable
- Serial Cable
- Mounting Hardware
- Manual with Warranty Information
Recycled: No
Recycled Content: 0%
Post-consumer-waste%: 0%
Assembly Required: No
Certifications & Standards:
- CSA
- NOM
- UL1778
- FCC Class B
- FCC part 68
Additional Information:
- Cold Start Capable
- Automatic Voltage Regulation (AVR)
- LCD display indicates input voltage, battery capacity and a variety of operating conditions
- Switches: Two front panel switches - one main on/off power switch and one dual-function "alarm cancel"/"self test" button

Power Description

Load Capacity (VA): 1500 VA
Load Capacity (Watt): 900 W
Input Voltage: 110 V AC
Output Voltage: 120 V AC
Surge Energy Rating: 480 J
Waveform Type: Pulse-width Modulated Sine Wave

Battery Information

Maximum Battery Recharge Time: 8 Hour
Backup/Run Time (Half Load): 13 Minute
Backup/Run Time (Full Load): 3.50 Minute

Warranty

Limited Warranty: 3 Year

Environmental Conditions

Temperature: 122°F (50°C)

Extended Details

Tripp-Lite Products Part #: SMART1500LCD | SKU: TRI257463
