29479 29479 29479 Symbol

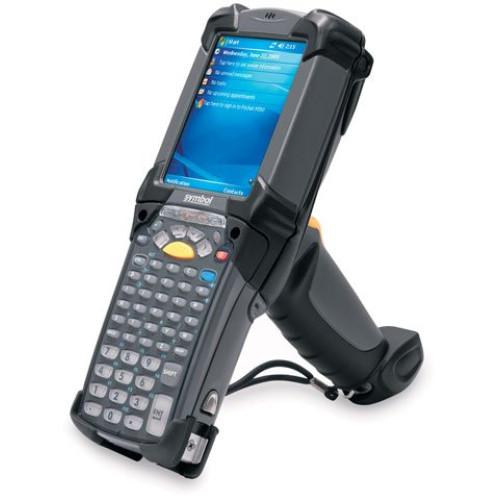

Symbol Mobile Computer

Symbol Mobile Computer
Part #: MC9090-GJ0HJAFA6WR | SKU: SYM29479

The MC9000-G Series from Symbol Technologies is an elegant, ruggedized mobile computer for use in bar code scanning-intensive applications throughout your enterprise. The MC9000-G gives your organization real-time access to mission-critical information from key points in your supply chain.

Symbol Mobile Computer

Part Details: MC9090-G, Gun, 802.11a/b/g, Lorax, Color, 64/128MB, 28 key, Windows Mobile 5.0.0, Audio/Voice/Bluetooth
InStock
Need a different version of the Symbol MC9090-G Mobile Computer? View all 84 configurations

Additional Information

Display Resolution 240 x 320
IP Rating IP64
Interface Options Bluetooth, Wi-Fi.
Manufacturer AIDC Symbol
Model Name MC9090-G
Operating System Windows Mobile, Windows Mobile 5.0 Premium
RAM Memory 64 MB
Scanner Type Laser
Style Gun
Symbol MC9090-G Specs Symbol MC9090-G Specs (pdf)

Technical Information

  • Operating System: Windows Mobile 5.0 Premium Edition
  • Processor: Intel PXA270 XScale 624MHz
  • Data Collection Type: Wireless
  • Wireless Security:
    • AES
    • LEAP
    • PEAP (MS-CHAP v2)
    • PEAP-TLS
    • TKIP
    • TLS
    • TTLS (CHAP)
    • TTLS (MS-CHAP)
    • TTLS (MS-CHAP v2)
    • TTLS-MD5
    • TTLS-PAP
    • WEP 40 bit
    • WEP 128 bit
  • Scanner Type: Laser Long Range - Lorax 1D
  • Symbologies Supported:
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • Coupon Code
    • Discrete 2 of 5
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • MSI
    • Trioptic Code 39
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • Webcodes

General Information

  • Manufacturer: Motorola
  • Product Line: Mobile Computer (MC)
  • Product Name: MC9090-G Mobile Computer

Physical Characteristics

  • Display: 3.8" Color QVGA - Touch Screen LCD
  • Display Resolution: 320 x 240
  • User Accessible Expansion Slot: MMC SD (For Memory Expansion Only)
  • Keyboard: 28 Key Numeric Integrated
  • Battery Capacity: 2200 mAh
  • Battery Type: Lithium Ion - Included
  • Dimensions: 7.6" (193mm) x 3.6" (91mm) x 9.1" (231mm)
  • Weight: 25 oz - Includes Battery, Scanner and Radio

Environmental Conditions

  • Environmental Sealing: IP64
  • Temperature:
    • -20°C (-4°F) to 50°C (122°F) Operating
    • 0°C (32°F) to 40°C (104°F) Charging
    • -40°C (-40°F) to 70°C (158°F) Storage
  • Humidity: 5 to 95% Non-condensing
  • Electrostatic Discharge (ESD):
    • +/-15kVdc Air Discharge
    • +/-8kVdc Direct Discharge
  • Drop Spec: 6' To Concrete Multiple at -20°C to 50°C
  • Tumble: 2000 one-meter tumbles at room temperature (4000 hits)

Wireless Data Communications

  • Network Connectivity:
    • WLAN 802.11 b/g/a
    • WPAN Bluetooth
  • Maximum RF Data Rate Supported: 54 Mbps
  • Output Power: 100mW
  • Antenna Connectors: Internal
  • Frequency Band/Bandwidth: 2.4GHz to 5GHz

Other

  • Additional Information: Communication Options: Audio Region: Worldwide Voice Communication: Voice-over-IP Ready (P2P, PBX, PPT) Wi-Fi Certified
  • Package Contents: MC9090-G Mobile Computer Battery Hand Strap Stylus BT Explorer Regulatory Guide Quick Start Guide

Memory

  • RAM Memory: 64MB
  • Flash Memory: 128MB

Agency Approvals

  • Agency Approvals: RoHS Compliance

Warranty

  • Manufacturer Warranty: 1 Year(s) Limited
Extended Details

Recommended Accessories for Model: Symbol Mobile Computer

  • Zebra Power Device
    Part #: 23844-00-00R | SKU: ZEB26223

    US AC Line Cord, Grounded, 7.5', Three wire for power supplies.
    Price: $20.56
    In Stock

  • Zebra Cables, Connectors, and Adapters
    Part #: 25-64396-01R | SKU: ZEB26247

    USB Cable (A to B) for the cradle to the host system
    $26.47
    See Price in Cart (Why?)
    In Stock

  • Zebra Power Device
    Part #: 50-16000-182R | SKU: ZEB21798

    AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
    Price: $14.84
    See Price in Cart (Why?)
    In Stock

  • Zebra Carrying and Protective Accessories
    Part #: 11-08062-02R | SKU: ZEB70382

    Universal rugged belt for hip holster.
    $52.05
    See Price in Cart (Why?)
    In Stock

  • Zebra Docks and Cradles
    Part #: CRD9000-1001SR | SKU: ZEB21686

    Single slot charging and communications cradle for MC9090/MC9097/MC9000/MC9060/MC9190-G/9200 with spare battery charging. Requires RS-232 or USB communication cable, Power supply with DC Line Cord (Part# KT-14000-148R) and AC line cord (Part# 23844-00-00R). If charging a spare MC90XX-S battery, (Part# BAP9000-100R) must also be ordered.
    $366.18
    See Price in Cart (Why?)
    In Stock
View All Options

Recommended Warranties for Model: Symbol Mobile Computer

  • Zebra Service Contract
    Part #: SSE-MC9090G-10-R | SKU: ZEB369570

    Zebra OneCare Essential with Comprehensive Coverage - 1 Year Renewal - Service - Maintenance - Parts & Labor - Physical, Electronic Service
View All Options
