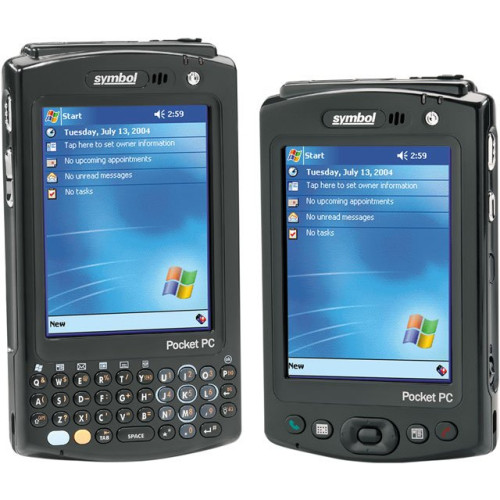

Symbol MC50 Mobile Computer

Symbol MC50 Mobile Computer
Part #: MC5040-PK0DBQEA8WR | SKU: SYM10516

The MC50 from Symbol Technologies is first in a class of mobile computers that combines an enhanced PDA-style form factor with optimal performance to operate enterprise-level applications. This small, lightweight mobile computer features advanced data capture options, flexible voice and data communication and easy wireless local area network (WLAN) synchronization.

Symbol MC50 Mobile Computer

Part Details: MC50, Wireless Enterprise Digital Assistant - SE 4400 Pico Imager engine with 1D/2D and RSS support, QWERTY Keyboard, 802.11b wireless, 3600 mAh Lithium-ion rechargeable Battery, Windows Mobile 2003 and 64/64. Includes soft case (Part# 21-67294-01R). Order cradle, cables & power supply separately. See accessories. Formerly listed as (Part# MC50-IQ20)
InStock
Need a different version of the Symbol MC50 Mobile Computer? View all 14 configurations

Additional Information

Display Resolution 240 x 320
Keypad 37 Keys
Manufacturer AIDC Symbol
Model Name MC50
Operating System Windows Mobile, Windows Mobile 2003 Second Edition
Operating Temperature 32 F - 155 F (0 C - 68.33 C)
Processor Marvell PXA270 (520 MHz)
RAM Memory 64 MB
Scanner Capability 2D
Scanner Type Imager
Style Phone-size
Symbol MC50 Specs Symbol MC50 Specs (pdf)

Technical Information

  • Connectivity Technology: Wireless
  • Image Sensor: Imager
  • Electrostatic Discharge (ESD):
    • +/-15 kV DC Air Discharge
    • +/-8 kV DC Direct Discharge
    • +/-8 kV DC Indirect Discharge
  • Drop Specification: 36" To Tile Over Concrete
  • Barcode Symbology Supported:
    • Australian 4-State
    • Canadian 4 State
    • Codabar
    • Code 11
    • Code 39
    • Code 93
    • Code 128
    • CompositeAB
    • Composite C
    • Coupon Code
    • DataMatrix
    • Discrete 2 of 5
    • Dutch Kix
    • EAN-8
    • EAN-13
    • Interleaved 2 of 5
    • Japanese 4-State
    • Macro PDF-417
    • Micro PDF-417
    • Macro Micro PDF-417
    • MaxiCode
    • MSI
    • PDF 417
    • QR Code
    • RSS-Expanded
    • RSS-Limited
    • RSS-14
    • TLC39
    • Trioptic Code 39
    • UK 4-State
    • UPC/EAN Supplementals
    • UPC-A
    • UPC-E
    • U.S. Planet
    • U.S. Postnet
    • Webcodes

General Information

  • Product Type: Handheld Terminal
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: MC5040
  • Product Name: MC5040 Mobile Computer

Physical Characteristics

  • Height: 4.8"
  • Width: 3"
  • Length: 1.1"
  • Weight (Approximate): 7.20 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • MC5040 Mobile Computer
    • Two Battery
    • Hand Strap
    • Stylus
    • Softcase
    • MC5040 Mobile Computer
    • Two Battery
    • Hand Strap
    • Stylus
    • Softcase
  • Certifications & Standards:
    • Electrical Safety:
    • UL60950 (UL Marking)
    • CSA C22.2 No. 60950 (c-UL Marking)
    • EN60950/IEC 950
    • EMI/RFI:
    • EU/International
    • EN 301 489-1, -17
    • EN61000-4-2: 1995, ESD ±8kV Air/ ±4kV Contact
    • EN61000-4-3: 1997, Radiated Immunity 3V/m
    • EN61000-4-4: 1995, EFT ± 0.5kV
    • EN61000-4-5: 1995, Surge ± 0.5kV
    • EN61000-4-6: 1
    • Laser Safety:
    • IEC Class2/FDA Class II in accordance with IEC60825-1/EN60825-1

Network & Communication

  • Wireless LAN: Yes
  • Antenna Form Factor: Internal
  • Wireless LAN Standard: IEEE 802.11b
  • Wireless Security:
    • Airbeam Safe (VPN)
    • CCX
    • EAP-TLS
    • FIPS 140-2
    • Kerberos
    • Keyguard - (SBL TKIP)
    • LEAP
    • PEAP
    • TKIP
    • WEP 128 bit
    • WPA Home (PSK)
    • WPA Enterprise (EAP Authenticated)

Display & Graphics

  • Display Screen Type: LCD
  • Screen Mode: QVGA
  • Screen Size: 3.5"
  • Display Color: Color
  • Screen Resolution: 240 x 320

Memory

  • Flash Memory: 64 MB
  • Standard Memory: 64 MB
  • Memory Card Slot: Yes
  • Memory Card Supported: Secure Digital (SD) Card

Processor & Chipset

  • Processor Manufacturer: Intel
  • Processor Speed: 520 MHz
  • Processor Type: XScale

Battery Information

  • Battery Capacity: 3600 mAh
  • Battery Included: Yes
  • Battery Chemistry: Lithium Ion (Li-Ion)

Keyboard/Keypad

  • Keyboard Layout: QWERTY

Warranty

  • Limited Warranty: 1 Year

Software

  • Operating System: Windows Mobile 2003 Second Edition

I/O Expansions

  • Expansion Slot Type: SDIO
Extended Details

Recommended Accessories for Model: Symbol MC50 Mobile Computer

  • Zebra Power Device
    Part #: 50-16000-182R | SKU: ZEB21798

    AC Power Line Cord, 2 Wire, 6', ungrounded, NEMA 1-15P Plug. (For use with 2 Wire, ungrounded Power Supplies)
    Price: $14.84
    See Price in Cart (Why?)
    In Stock

  • Zebra Power Device
    Part #: PWR-BUA5V16W0WW | SKU: ZEB446660

    Power Device - Zebra - Level Vi AC/DC Power Supply Brick AC Input - 100-240V - 0.6A DC Output - 5.4V - 3A - 16W Requires - DC Line Cord And Country - Specific Un-Grounded AC Line Cord.
    $64.70
    See Price in Cart (Why?)
    In Stock

  • Zebra Power Device
    Part #: CBL-DC-382A1-01 | SKU: ZEB458527

    DC line cord used with Mobile Computer's multi-slot cradles from a single LEVEL VI Power Supply PWR-BGA12V108W0WW.
    $44.11
    See Price in Cart (Why?)
    In Stock

  • Portsmith Cables, Connectors, and Adapters
    Part #: 190087-000 | SKU: POR223252

    Portsmith USB Data Transfer Cable - 9" USB Data Transfer Cable for Mobile Computer - First End: 1 x Type A Female USB - Second End: 1 x Type B Male Mini USB
    Price: $14.46

  • Harvard Battery Battery
    Part #: HBM-SYMMC50LEXT | SKU: HAR113877

    Replacement battery for the Symbol/Motorola MC 50 HIGH CAPACITY. Original part number 21-67315-01. 3.7 volts 3800 mAh.
    Price: $41.88
