8716 8716 8716 Symbol
Symbol Barcode Scanner Symbol Barcode Scanner Symbol Barcode Scanner

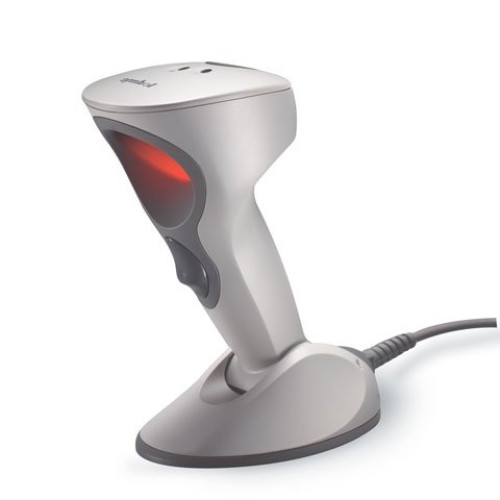

Symbol Barcode Scanner
Part #: M2004-I500-0705AN | SKU: SYM8716

A smart investment Symbol's innovative new scanner is future-ready now. The Cyclone scanner decodes existing new and emerging bar code symbologies instantly. The Cyclone scanner is packed with features that deliver optimum flexibility including next generation scanning technology. As good looking as it is practical the Cyclone's sleek design complements any store's decor. Large merchandise or small single or multiple bar code types this scanner can handle it all. Revolutionary user-selectable scan pattern versatility plus remarkable ease of use and adaptability make the Adaptive Cyclone Scanner Series from Symbol Technologies a standout for bar code scanning at point of sale.

Symbol Barcode Scanner

Part Details: M2004 Cyclone, Keyboard wedge kit: Scanner, PS/2 Y-cable, power supply, & product reference guide. Color: black.
InStock
Need a different version of the Symbol M2004 Cyclone Barcode Scanner? View all 13 configurations

Additional Information

Manufacturer AIDC Symbol
Model Name M2004 Cyclone
Scanner Capability 1D
Symbol M2004 Cyclone Specs Symbol M2004 Cyclone Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern:
    • Single Line
    • 2D Raster
    • Omni-directional
    • Semi Omni-directional
  • Connectivity Technology: Cable
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN/JAN
    • NW7
    • Code 128
    • Code 39 Full ASCII
    • MSI/PLESSEY
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • UCC/EAN
    • Codabar
    • PDF 417
    • RSS
    • UPC/EAN/JAN
    • NW7
    • Code 128
    • Code 39 Full ASCII
    • MSI/PLESSEY
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • UCC/EAN
    • Codabar
    • PDF 417
    • RSS
  • Maximum Scan Resolution: 6.60 mil
  • Depth of Field:
    • 0 mil - 2"@6 mil - Code 39 (Omni Zone)
    • 0 mil - 5.30"@ - 80% UPC (Omni Zone)
    • 0.30" - 11"@ - 100% UPC (Omni Zone)
    • 0.50" - 12"@20 mil - Code 39 (Omni Zone)
    • 0 mil - 4"@6.60 mil - PDF417
    • 2.25" - 6.50"@10 mil - PDF417
    • 2.50" - 6.75"@10 mil - PDF417, LC 35% (Raster Zone)
    • 5" - 8.50"@15 mil - PDF417

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: M2004
  • Product Name: Cyclone M2004 Barcode Reader
  • Product Line: Cyclone

Physical Characteristics

  • Height: 7.8"
  • Width: 3.4"
  • Depth: 5.4"
  • Color: Black
  • Weight (Approximate): 12 oz

Interfaces/Ports

  • Host Interface: Serial

Other

  • Package Contents:
    • Cyclone M2004 Barcode Reader
    • Synapse Adapter (8 1/2 ft. Coiled) Cable (25-32463-21)
    • Keyboard Wedge IBM PC PS/2 Synapse (STI80-0200)
    • 110VAC Power Supply (50-14000-008)
    • Cyclone M2004 Barcode Reader
    • Synapse Adapter (8 1/2 ft. Coiled) Cable (25-32463-21)
    • Keyboard Wedge IBM PC PS/2 Synapse (STI80-0200)
    • 110VAC Power Supply (50-14000-008)
  • Certifications & Standards:
    • Electrical Safety:
    • UL 1950
    • CSA C22.2 No. 950 EN60950/IEC950
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Australian SMA
    • Laser Safety:
    • CDRH Class ll
    • IEC Class 2
  • Platform Supported: PC

Warranty

  • Limited Warranty: 3 Year

Power Description

  • Input Voltage: 5.2 V DC
Extended Details
