29390 29390 29390 Symbol

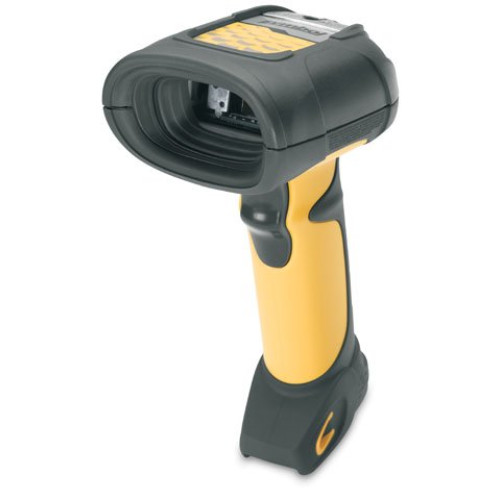

Symbol Barcode Scanner
Part #: LS3478-FZ20005WR | SKU: SYM29390

Symbol's rugged LS3478-FZ cordless scanner provides fuzzy logic technology so you're able to rapidly and accurately read the often damaged, dirty and poorly printed one-dimensional (1D) bar codes found in your industrial environment. In the yard, warehouse, distribution center, manufacturing plant or retail store, these cordless handheld devices offer superior performance and reliability, as well as a user-friendly form factor to help your employees comfortably operate the scanner even over eight-hour shifts. Multiple onboard interfaces ensure you'll be able to use the data capture devices with existing hosts, while giving you the flexibility to upgrade your systems without having to buy new scanners. You'll lay the foundation for an advanced data capture and management solution that grows with you as your business needs evolve.

Symbol Barcode Scanner

Part Details: LS 3478 FZ, Scanner only (Bluetooth, FZY, M-Interface, Cordless Scanner and CL 2) - Color: Yellow. Cradle and cables not included. See accessories.
InStock

Additional Information

Connectivity Cordless
Manufacturer AIDC Symbol
Model Name LS 3478 FZ
Scanner Capability 1D

Technical Information

  • Barcode Dimension: 1D
  • Scan Rate: 36 scan/s
  • Connectivity Technology: Wireless
  • Scanning Distance: 328.08 ft
  • Light Source: Laser
  • Barcode Symbology Supported:
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS Variants
    • RSS Variants
    • Code 128
    • UPC/EAN
    • UPC/EAN with Supplementals
    • UCC/EAN 128
    • JAN-8
    • JAN-13
    • Code 39
    • Code 39 Full ASCII
    • Code 39 TriOptic
    • Code 128 Full ASCII
    • Codabar (NW7)
    • Interleaved 2 of 5
    • Discrete 2 of 5
    • Code 93
    • MSI
    • Code 11
    • Code 32
    • Bookland EAN
    • IATA
    • UCC/EAN RSS Variants
    • RSS Variants
    • Code 128
  • Maximum Scan Resolution: 5 mil
  • Depth of Field:
    • 2.50" - 7.50"@5 mil
    • 2" - 15.75"@7.50 mil
    • 1" - 24"@13 mil - 100% UPC
    • 0 mil - 39.50"@20 mil - 80% MRD
    • 0 mil - 26.50"@20 mil - 31% MRD
    • 2" - 67"@40 mil
    • 4" - 84"@55 mil

General Information

  • Product Type: Handheld Barcode Scanner
  • Brand Name: Motorola
  • Manufacturer: Motorola, Inc
  • Product Model: LS3478-FZ
  • Product Name: Symbol LS3478-FZ Barcode Reader
  • Product Line: Symbol

Physical Characteristics

  • Height: 7.3"
  • Width: 4.8"
  • Depth: 2.9"
  • Color:
    • Yellow
    • Black
  • Weight (Approximate): 14.60 oz

Interfaces/Ports

  • Host Interface: Multi-interface

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Certifications & Standards:
    • RoHS Compliant
    • Input Transient Protection:
    • IEC 1000-4-(2,3,4,5,6,11)
    • EMI/RFI:
    • FCC Part 15 Class B
    • ICES-003 Class B
    • European Union EMC Directive
    • Japan VCCI/MITI/Dentori
    • Laser Safety:
    • IEC825-1 Class 2
  • Additional Information:
    • Supported Interfaces:
    • Serial
    • Keyboard Wedge
    • Wand Emulation
    • IBM 468X/469X
    • USB
    • Synapse

Warranty

  • Limited Warranty: 3 Year

Network & Communication

  • Bluetooth: Yes
Extended Details
