Socket Mobile Dual Serial I/O PC Card - Ruggedized Spare Parts
Part #: SL0723-116 | SKU: SOC26878

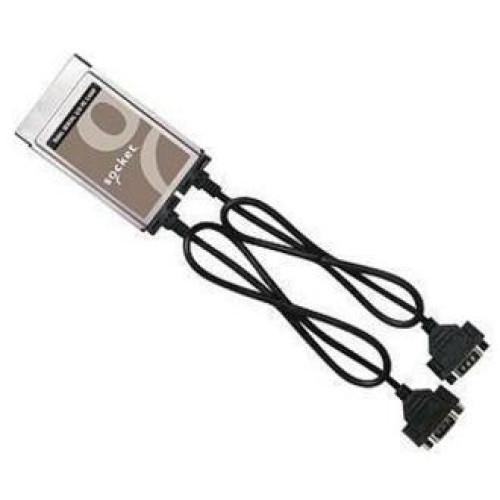

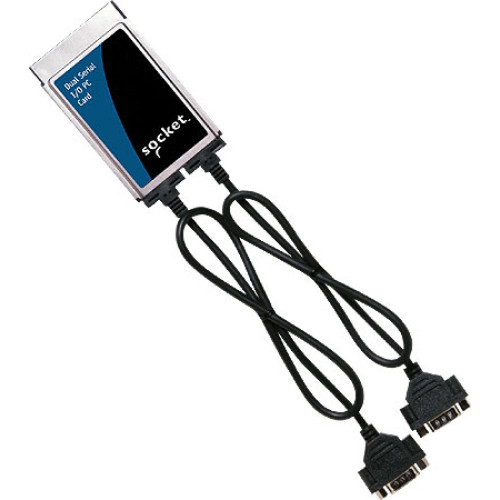

Sockets Dual Serial I/O PC Card - Ruggedized adds four high-speed RS-232 serial COM ports running up to 921 Kbps to your mobile computer and maximizes your connectivity. The card includes one non-removable, 17-inch cable that splits into two cables with industry standard male DB-9 connectors. Ruggedized cables, molded strain relief and a sonic welded case protect against lateral stress, torque and dust and moisture, making Dual Serial I/O PC Card - Ruggedized an ideal for use in harsh environments. Socket's HIS-3 chip reduces power consumption while enabling compatibility with a standard PC Card (PCMCIA) interface.

Socket Mobile Dual Serial I/O PC Card - Ruggedized Spare Parts

Part Details: Socket Ruggedized Dual Serial I/O PC Card Serial Adapter - DISCONTINUED - 1 Pack - Plug-in Card - PC Card

InStock

Need a different version of the Socket Mobile Dual Serial I/O PC Card - Ruggedized Accessory? View all 1 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Socket Mobile
Model Name	Dual Serial I/O PC Card - Ruggedized
Type	No

Socket Mobile Dual Serial I/O PC Card - Ruggedized Specs (pdf)

Technical Information

Data Transfer Rate: Up to 921 Kbps
Host Interface: PC Card
Buffer: 128 Byte
Baud Rate:
- Up to 230.40 Kbps
- Up to 460.80 Kbps
- Up to 921.60 Kbps
Platform Supported: PC
UART Type:
- 16550
- 16650
- 16750
- 16950

General Information

Product Type: Serial Adapter
Brand Name: QUATECH
Manufacturer: B&B Electronics Mfg. Co
Product Model: SL0723-116
Product Name: Rugged PC Dual Serial I/O Card
Package Type: Retail
Packaged Quantity: 1

Physical Characteristics

Width: 2.1"
Depth: 3.4"
Form Factor: Plug-in Card
Thickness: 197 mil

Interfaces/Ports

Ports: 2 x 9-pin DB-9 Male RS-232 Serial

Other

Certifications & Standards:
- FCC:
- Part 15
- Class B
- CE:
- EN55024:1998
- C-TICK s.182
Compatibility:
- Notebooks
- Handheld PCs
- Pocket PCs
- Plug-and-play
- External Modems
- Barcode Scanners
- Mag Stripe Readers
- GPS Receivers
- Court Reporting Stenograph Machines
- RS-232 Serial Devices
System Requirements:
- Two 16550 compatible UARTs provide internal data buffering to utilize the full bandwidth of RS-232 peripherals such as fast modems
- Hi-Speed COM Tools and drivers enable you to re-map baud rates to higher speeds such as 230.4, 460.8 or 921.6 kbps
- Provides the ability to quickly identify and change COM port assignments
- Provides hardware flow control and internal data buffering to support a continuous data stream from high-speed peripherals
- Uses low power for longer battery life
- Power Consumption:
- Minimum: 5 mA (25 mW)
- Typical:
- One port: 13 mA (65 mW)
- Both ports: 21 mA (105 mW)
- Maximum:
- One port: 16 mA (96 mW)
- Both ports: 27 mA (135 mW)
- Compatible Systems: 3 V, 5.5 V

Environmental Conditions

Humidity: 10 to 90% Non-condensing Relative Humidity Operating
Temperature:
- 32°F (0°C) to 158°F (70°C) Operating
- -4°F (-20°C) to 212°F (100°C) Storage

Warranty

Limited Warranty: Lifetime

Extended Details
