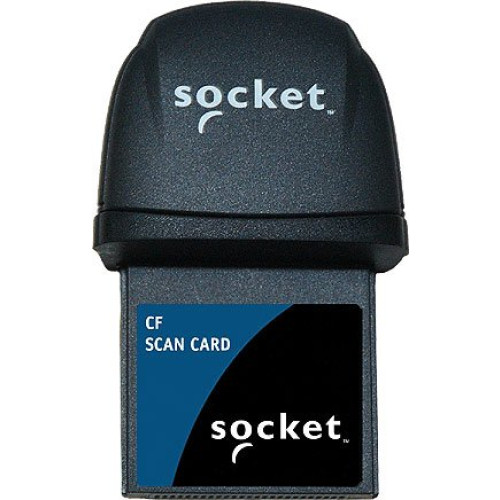

Socket Mobile CF Scan Card 5E2 Spare Parts
Part #: IS5042-1195 | SKU: SOC83257

The Socket-Mobile CF Scan Card 5E2 offers a convenient solution for the mobile professional to input barcode data into mobile computers quickly, easily and accurately. With a PDA, the CF Scan Card 5E2 enables you to scan barcodes with one hand for optimal productivity. The CF Scan Card 5E2 also works in any standard Type II CF slot across various PDAs allowing flexibility for system upgrades and is available in four performance levels to fit your business requirements.

Socket Mobile CF Scan Card 5E2 Spare Parts

Part Details: Socket CFSC 5E2 Modular Bar Code Reader - DISCONTINUED - Plug-in Card Connectivity - 100 scan/s - 10.50 Scan Distance - 1D - Laser - Bi-directional

InStock

Need a different version of the Socket Mobile CF Scan Card 5E2 Accessory? View all 1 configurations

Specs & Info

Additional Information

Manufacturer AIDC	Socket Mobile
Model Name	CF Scan Card 5E2

Socket Mobile CF Scan Card 5E2 Specs (pdf)

Technical Information

Barcode Dimension: 1D
Scan Pattern: Bi-directional
Scan Rate: 100 scan/s
Connectivity Technology: Plug-in Card
Scanning Distance: 10.50"
Light Source: Laser
Barcode Symbology Supported:
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- D 2 of 5
- GS1-128 (UCC-128/EAN-128)
- GS1 DataBar (RSS)
- I 2 of 5
- MSI
- UPC/EAN
- Chinese 2 of 5
- Codabar
- Code 11
- Code 128
- Code 39
- Code 93
- D 2 of 5
- GS1-128 (UCC-128/EAN-128)
- GS1 DataBar (RSS)
- I 2 of 5
- MSI
- UPC/EAN

General Information

Product Type: Modular Barcode Scanner
Product Series: 5
Brand Name: Socket
Manufacturer: Socket Mobile, Inc
Product Model: CFSC 5E2
Product Name: CompactFlash Scan Card

Physical Characteristics

Height: 0.8"
Width: 1.6"
Depth: 2"
Weight (Approximate): 1.09 oz

Interfaces/Ports

Host Interface: CFIO

Other

Green Compliant: Yes
Green Compliance Certificate/Authority:
- REACH
- RoHS
Package Contents:
- CompactFlash Scan Card
- Retaining Bracket
- Software
- CompactFlash Scan Card
- Retaining Bracket
- Software
Certifications & Standards:
- EMI/RFI:<br />
- FCC Part 15 Class B
- CISPR 22
- ICES-003 Class B
- CE EN 55024:2003
- Japan VCCI Class B
- AS 3548
- C-Tick s.82
- Laser/LED Safety:
- IEC60825-1 Class 1 Laser
- 21 CFR 1040.10
- 21 CFR 1040.11
Platform Supported:
- PC
- Smartphone

Warranty

Limited Warranty: 1 Year

Power Description

Input Voltage: 3.3 V DC

Extended Details

Socket Mobile CF Scan Card 5E2 Spare Parts Part #: IS5042-1195 | SKU: SOC83257
