142208 142208 142208 Socket Mobile
Socket Mobile Barcode Scanner Socket Mobile Barcode Scanner Socket Mobile Barcode Scanner

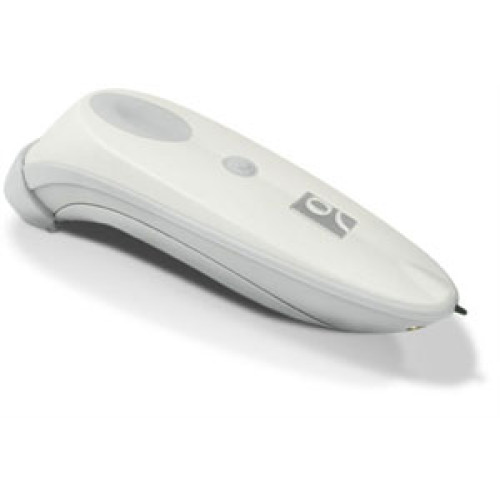

Socket Mobile Barcode Scanner
Part #: CX2866-1338 | SKU: SOC142208

The Socket-Mobile Cordless Hand Scanner 7XiRx takes 2D bar code scanning to another level delivering superior high-density scanning performance and long-range Bluetooth all in a pocket-sized, ergonomic, and extra durable enclosure. The Cordless Hand Scanner 7XiRx is designed specifically for the healthcare industry because is built with microbial materials. The Bluetooth feature on the Cordless Hand Scanner 7XiRx is secure and allows for long-range connections that go up to 330ft/100m. This device also comes equipped with an omni-directional imager which reads 2D & 1D barcodes in any direction and can also scan barcodes being displayed on LCD screens. The Cordless Hand Scanner 7XiRx also supports multiple platforms like Apple iOS, Android, Blackberry and Windows.

Socket Mobile Barcode Scanner

Part Details: Soclet CHS 7XiRx, iOS, Android, 2D, Durable, Antimicrobial with Batteries, AC Adapter, Charging Cable, Lanyard - Wireless Connectivity - 16" Scan Distance - 1D, 2D - Imager - Omni-directional - Bluetooth - White
InStock
Need a different version of the Socket Mobile Cordless Hand Scanner 7XiRx Barcode Scanner? View all 1 configurations

Additional Information

Color White
Connectivity Cordless, iOS/Android
Form Factor Handheld
Included Cables Scanner Only - No Cable
Interface Options Bluetooth
Manufacturer AIDC Socket Mobile
Model Name Cordless Hand Scanner 7XiRx
Scanner Capability 1D
Scanner Type Imager
Socket Mobile Cordless Hand Scanner 7XiRx Specs Socket Mobile Cordless Hand Scanner 7XiRx Specs (pdf)

Technical Information

  • Barcode Dimension:
    • 1D
    • 2D
  • Scan Pattern: Omni-directional
  • Connectivity Technology: Wireless
  • Scanning Distance: 16"
  • Image Sensor: Imager
  • Barcode Symbology Supported:
    • 1D:
    • Bookland EAN (ISBN / EAN-13)
    • Codabar (including ISBT 128 bit concatenation)
    • Code 11
    • Code 128
    • Code 39
    • Code 93
    • Discrete 2 of 5
    • GS1 DataBar (RSS)
    • GS1-128 (UCC-128/EAN-128)
    • Interleaved 2 of 5 (ITF-14)
    • MSI, Plessey
    • UPC/EAN
    • 2D:
    • Aztec
    • Codablock
    • Data Matrix
    • GS1 (EAN.UCC)
    • Matrix 2 of 5
    • Maxicode
    • PDF 417/ Macro PDF 417/ Micro PDF 417
    • QR Code
    • Standard 2 of 5
    • Telepen
    • TLCode 39
    • Postal:
    • Australia Post
    • BPO 4
    • Canada Post
    • Dutch Post (KIX)
    • Japan Post
    • Planet
    • Postnet
    • RM4SCC
    • Sweden Post
    • TLCode 39
    • 4 State
    • Code
    • USPS Intelligent Mail
    • 1D:
    • Bookland EAN (ISBN / EAN-13)
    • Codabar (including ISBT 128 bit concatenation)
    • Code 11
    • Code 128
    • Code 39
    • Code 93
    • Discrete 2 of 5
    • GS1 DataBar (RSS)
    • GS1-128 (UCC-128/EAN-128)
    • Interleaved 2 of 5 (ITF-14)
    • MSI, Plessey
    • UPC/EAN
    • 2D:
    • Aztec
    • Codablock
    • Data Matrix
    • GS1 (EAN.UCC)
    • Matrix 2 of 5
    • Maxicode
    • PDF 417/ Macro PDF 417/ Micro PDF 417
    • QR Code
    • Standard 2 of 5
    • Telepen
    • TLCode 39
    • Postal:
    • Australia Post
    • BPO 4
    • Canada Post
    • Dutch Post (KIX)
    • Japan Post
    • Planet
    • Postnet
    • RM4SCC
    • Sweden Post
    • TLCode 39
    • 4 State
    • Code
    • USPS Intelligent Mail

General Information

  • Product Type: Handheld Barcode Scanner
  • Product Series: 7
  • Brand Name: Socket
  • Manufacturer: Socket Mobile, Inc
  • Product Model: CHS 7XiRx
  • Product Name: Bluetooth Cordless Hand Scanner (CHS)

Physical Characteristics

  • Height: 5.2"
  • Width: 1.5"
  • Depth: 1.8"
  • Color: White
  • Weight (Approximate): 2.40 oz

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: RoHS
  • Package Contents:
    • Bluetooth Cordless Hand Scanner (CHS)
    • Rechargeable Battery (Pre-Installed)
    • USB AC Charger Kit
    • Lanyard
    • Software Media
    • Bluetooth Cordless Hand Scanner (CHS)
    • Rechargeable Battery (Pre-Installed)
    • USB AC Charger Kit
    • Lanyard
    • Software Media
  • Certifications & Standards:
    • Electrical Safety / Environmental:<br />
    • IEC 60950-1
    • UL 60950-1
    • CAN/CSA C22.2
    • EMI / RFI:
    • FCC Part 15 Class C
    • RSS 210
    • iCES 003
    • C-Tick
    • CISPR 22
    • CE EN55022
    • EN55024
    • TELEC
    • Laser / LED Safety:
    • IEC 60825-1
    • EN 60825-1
  • Platform Supported:
    • Mac
    • PC
    • iOS
    • Android
    • Smartphone

Battery Information

  • Number of Batteries Supported: 1
  • Battery Rechargeable: Yes
  • Maximum Number of Scans per Full Charge: 1000
  • Battery Chemistry: Lithium Ion (Li-Ion)

Power Description

  • Input Voltage: 3.7 V DC
  • Power Source: Battery

Network & Communication

  • Bluetooth: Yes

Warranty

  • Limited Warranty: 1 Year
Extended Details

Recommended Accessories for Model: Socket Mobile Barcode Scanner

  • Socket Mobile Cables, Connectors, and Adapters
    Part #: AC4058-1415 | SKU: SOC168007

    Socket CHS Series 7 AC Adapter with USB charge cable; 100-240V; 5V/1A

  • Socket Mobile Cables, Connectors, and Adapters
    Part #: AC4051-1192 | SKU: SOC85325

    Socket CHS Series 7 USB A Male to DC Plug Charging Cable - For Scanner - 2 A

  • Socket Mobile Spare Parts
    Part #: AC4056-1383 | SKU: SOC157174

    Socket Charging Cradle w/Latch & AC Adapter for 7DiRx/7XiRx (White-Antimicrobial) - Wired - Bar Code Scanner - Charging Capability - White
View All Options
