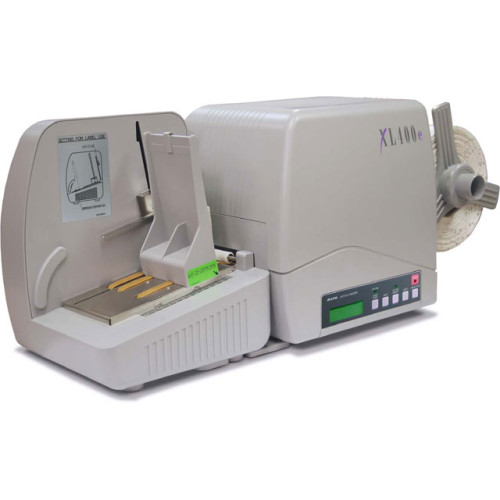

SATO XL400e Barcode Label Printer

The XL400e, which prints, cuts and stacks, is highly valued in the textile tag and ticketing industries. The movable sensor allows for an endless choice of media. The intelligent printhead regulates the printing temperature, thereby optimizing the print quality. A state-of-the-art RISC processor is at the heart of the XL400e, ensuring a high-speed printing process. The use of the cutter, and stacker enable you to select a solution suitable for your individual application.

See all options

Specs & Info
All Options

SATO XL400e Specs (pdf)

SATO XL400e Driver (download)

- Tag and Label Printer

SATO's printer includes a heavy-duty print mechanism and cutter assembly. Its industrial chassis and 32-Bit RISC high performance processor tackles even the most demanding print jobs with ease.

Designed for the following applications:

Apparel Labeling
Hang Tags
Lumber Tags
Retail Tags
And Others

Enhancements:

User Adjustments
Printhead Replacement
Long Life
Diagnostics
High-Speed Processor
Plug-In Interfaces
Cutter Mechanism

	XL400e	XL410e
Printing Method	Thermal Transfer/Direct Thermal
Print Resolution	203 dpi (8 dots/mm)	305 dpi (12 dots/mm)
Print Speed	Up to 8 ips (200mm/sec)	Up to 6 ips (150mm/sec)
Max. Print Width	3.94" (100mm)
Max. Print Length	11.8" (300mm)	9.4" (240mm)
Media Size	Min. 1.26" (32mm) W x 0.75" (19mm) L for Labels Min. 1.26" (32mm) W x 0.98" (25mm) L for Tags Max. 4.13" (105mm) W x 9.45 (240 mm) L
Max. Ribbon Size	Max. Length: 1476' (450m) - CSI
Dimensions	19.6" W x 11.8" D x 11.5" H (302 mm W x 552 mm D x 294 mm H)
Weight	30.8 lbs. (14 kg)

Memory:
2 MB Std. Memory
2.95 MB Receive Buffer (max.)

Processor:
32-BIT RISC

Interface:

Standard Interfaces:

Serial - RS232C (up to 57.6k bps)

Optional Plug-In Interfaces:

Parallel - IEEE1284 (ECP)
Ethernet - 10/100BaseT
Wireless
USB

Media:
Roll or fan-fold labels or tags
Max. 0.012" (0.31mm) Caliper
Core Size: 4" I.D. 3" optional with adapter purchase
Max. 9.84" (250 mm) Roll O.D.
Wind Face-In or Face-Out – Print marking side wound face-in is recommended

Media Detection:
Eye-Mark; Gap; Center/Side Hole; Edge (R-Corner)

Barcode Symbologies:
Linear: UPC-A/E, EAN-8/13, Code 39/93/128, Bookland, Industrial 2/5, Interleaved 2/5, Matrix 2/5, Postnet, UCC/EAN 128, Codabar
2-Dimensional: PDF417, Maxicode, Data Matrix, QR Code, Vericode

Barcode:
2:1, 5:2, 3:1 ratio; programmable height

Human Readable Fonts:
12 proportional, mono-spaced and outline fonts
(Code table 858)
8 POP fonts (Numeric only)
Internal CG Triumvirate& CG Times fonts plus downloaded TrueType fonts

Flexibility:
360° rotation of barcodes and text, character expansion horizontally and vertically, sequential numbering, form overlay for high-speed editing of complex formats

Options:
Real Time Calendar/Clock, Stacker, Memory Expansion, Memory Card Interface Board
