799531 799531 799531 SATO
SATO Barcode Label Printer SATO Barcode Label Printer
new

SATO Barcode Label Printer
Part #: WWCLXB1W1 | SKU: SAT799531

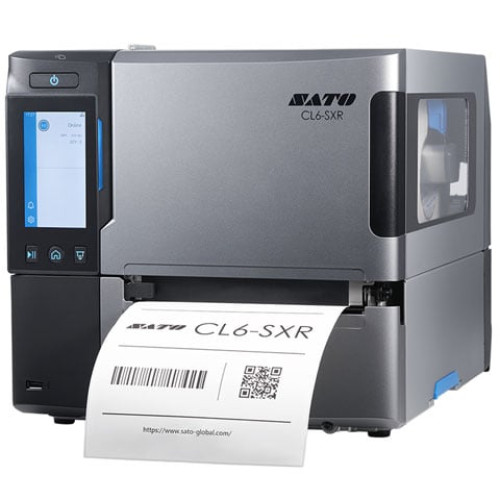

The SATO CL6-SXR is a robust 6-inch industrial barcode and label printer engineered for reliable, high-volume printing. Offering configurations up to 14 ips and resolutions ranging from 203 to 609 dpi, it provides the flexibility needed for applications requiring fast throughput or detailed, precise output. The printer accommodates media up to 6.60 inches wide, making it suitable for large-format labels, nameplates, and industrial identification tasks. Direct thermal and thermal transfer capabilities further expand its application range.

Designed for productivity and ease of use, the CL6-SXR combines a 4.3-inch color touchscreen with a speaker, printer status notifications, error alerts, and intelligent monitoring features. Its connectivity options include Gigabit Ethernet, USB, RS-232C, NFC, and optional wireless LAN and Bluetooth. Optional RFID and media-handling accessories allow the printer to be configured for specialized workflows and evolving operational needs.


Key Features

  • Industrial-Grade Performance: Built for demanding printing environments and continuous productivity.
  • Fast Output: Provides print speeds of up to 14 ips for efficient high-volume operations.
  • Precision Printing: 203, 305, and 609 dpi configurations support both standard and highly detailed printing needs.
  • Large-Format Capability: Maximum standard print width reaches 6.60 inches (167.5 mm).
  • Flexible Media Handling: Supports continuous, cutter/off-tear, dispenser, and linerless printing modes.
  • Smart Monitoring: Wear-level sensors, printer error notifications, and predictive maintenance features help support dependable operation.
  • Easy Operation: 4.3-inch color LCD touchscreen and integrated speaker provide an intuitive user experience.
  • Extensive Connectivity: Includes Gigabit Ethernet, USB 2.0, RS-232C, EXT, and NFC connectivity.
  • Expandable Configuration: Optional wireless, Bluetooth, RFID, cutter, dispenser, and rewinder accessories support customized installations.

Specifications

  • Print Technology: Direct thermal and thermal transfer
  • Maximum Print Speed: 14 ips
  • Available Resolutions: 203 dpi, 305 dpi, 609 dpi
  • Maximum Print Width: 6.60 in. (167.5 mm)
  • Maximum Print Length: 98.42 in. (2,500 mm)
  • Maximum Label Diameter: 8.7 in. (220 mm)
  • Core Diameter: 3.0 in. (76 mm) or 4.0 in. (101 mm)
  • Ribbon Width: 1.55 to 5.04 in. (39.5 to 128 mm)
  • Ribbon Length: Up to 1,968.5 ft. (600 m)
  • Standard Interfaces: 10/100/1000BASE-T Ethernet, USB 2.0 Type A and B, RS-232C, EXT, NFC
  • Optional Wireless: 2.4 GHz, 5 GHz, and 6 GHz 802.11a/b/g/n/ac/ax WLAN; Bluetooth 5.2
  • Operating Temperature: 0°C to 40°C for cutter/off-tear/continuous configurations
  • Storage Temperature: -20°C to 60°C
  • Dimensions: 338 W x 457 D x 321 H mm
  • Weight: 19.3 kg
  • Options: UHF RFID kit, HF RFID kit, external cover, external rewinder, wireless LAN, Bluetooth, internal liner rewinder, dispenser, and cutter

SATO Barcode Label Printer

Part Details: CL6-SXR 305dpi 6 Thermal Transfer Printer w/ CUTTER & WLAN/BT
InStock
Need a different version of the SATO CL6-SXR Barcode Label Printer? View all 24 configurations
MSRP: $6,564.00 Price: $4,534.21

Additional Information

Manufacturer AIDC SATO
Model Name CL6-SXR
SATO CL6-SXR Specs SATO CL6-SXR Specs (pdf)
