RCI Access Control Device

The 8371 Electromagnetic Lock from RCI features single point locking low-profile MiniMag locking with an adjustable mounting bracket with keyhole mounting and a removable cavity cover for quick and easy access to wiring. The MiniMag's 1-7/8" width helps keep undersized openings within code thus making them the ideal magnet for use on narrow-style aluminum doors. Other notable characteristics include brushed anodized aluminum or brushed dark bronze finish, MOV surge protection, low energy consumption and stabilizing 4-hole "Drop Stop" mag mounting.

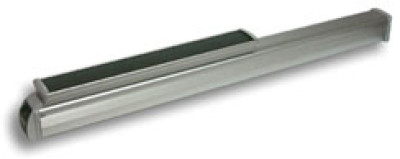

The RCI 1200 Series Mechanical Exit Device offers strong protection and fast release of electromagnetic locks. They feature interlocking strike and latch design for no-handed operation and facilitates easy installation. These are of stainless steel construction and offer maximum tamper resistance. The optional modules like alarm units further expands the potential areas of application.

The RCI 6514 Electric Strike offers a field selectable lock mode: fail locked or fail unlocked just with the turn of a dial. The field selectable voltage input accommodates 12 or 24VDC and 12 to 24VAC in one strike. The low profile version is shallow enough for use with narrow stile aluminum frames. Other notable characteristics include horizontal alignment up to 1/4", monitor switch option, modular plug-in wire connectors for fast hook-up and modular faceplate designs for a variety of frame types and cut outs.

Ideal for request-to-exit applications

Adjustable setting for precise detection area desired

Surface-mounted current transfer flex loop

The 8310 Electromagnetic Lock from RCI features single point locking with an adjustable mounting bracket with keyhole mounting and a removable cavity cover for quick and easy access to wiring. The built-in, adjustable time delay with instant unlocks and delayed relock can be controlled by any standard switching device. Other notable characteristics include brushed anodized aluminum or brushed dark bronze finish, MOV surge protection, low energy consumption, stabilizing 4-hole "Drop Stop" mag mounting and more. These are cULus Listed, MEA and CSFM certified devices.

Double MultiMag up to 1500 lbs. (680kg.) holding force. For out-swinging doors.

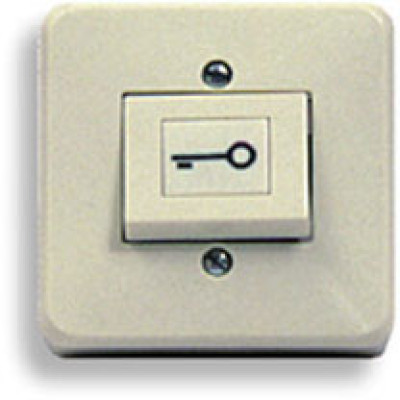

Smooth action rocker with engraved key symbol
