131243 131243 131243 Printronix
Printronix Barcode Label Printer Printronix Barcode Label Printer

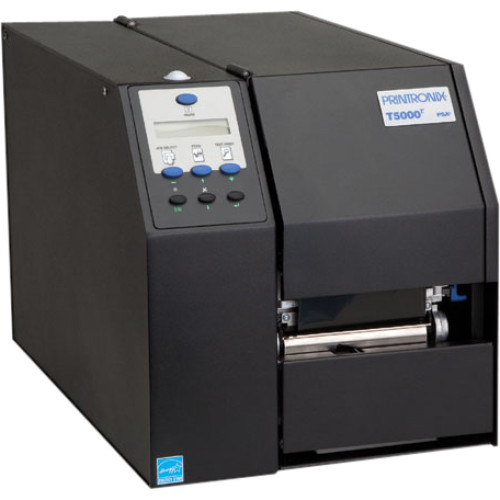

Printronix Barcode Label Printer
Part #: T52X6-0100-210 | SKU: PRI131243

Designed specifically for the high-volume applications found in distribution centers and factory floors, the T5000e Thermal aluminum die-cast design that dampens vibration and maintains precise printer alignment. A unique dual-motor driven ribbon system eliminates clutch replacement and greatly reduces the risk of ribbon wrinkle for superior print quality. Also features an exclusive snap-in print head that reduces service calls by allowing operator to easily change print heads and change from 203DPI to 300DPI printing without firmware or software changes.

Printronix Barcode Label Printer

Part Details: Printronix SmartLine T5206r Direct Thermal/Thermal Transfer Printer - Monochrome - Desktop - Label Print - Ethernet - USB - Serial - Rewinder - 6.60" Print Width - 10 in/s Mono - 203 dpi - Roll Fed, Fanfold, Label, Tag, Ticket, Plain Paper, Film, Synthetic Media - 6.80" Label Width
InStock
Need a different version of the Printronix T5000e Barcode Label Printer? View all 1 configurations

Additional Information

Manufacturer AIDC Printronix
Max Roll Outer Diameter 8
Model Name T5000e
Print Resolution 203 dpi
Print Speed 10 ips
Printer Type Industrial
Printing Technology Thermal Transfer
Printronix T5000e Specs Printronix T5000e Specs (pdf)

Technical Information

  • Maximum Mono Print Speed: 10 in/s
  • Maximum Print Resolution: 203 dpi
  • Print Color: Monochrome
  • Maximum Print Width: 6.60"
  • Recommended Use: Label Print
  • Features: Rewinder
  • Barcode Symbology Supported:
    • AUSTPORT
    • Aztec Code
    • BC35
    • BC412
    • Codabar
    • Code 11
    • Code 35
    • Code 39
    • Code 93
    • Code 128-A
    • Code 128-B
    • Code 128-C
    • EAN-8
    • EAN-13
    • FIM
    • German I-2/5
    • GS1 DataBar
    • GS1-128
    • GS1 DataMatrix
    • IMB
    • Interleaved 2 of 5
    • ITF-14
    • Matrix
    • Maxi Code
    • MSI
    • PDF-417
    • Planet Code
    • Plessey
    • POSTNET
    • PostBar
    • ROYALBAR
    • Telepen
    • UPC-A
    • UPC-E
    • UPC-E0
    • UPCSHIP
    • UPS11

General Information

  • Product Type: Direct Thermal/Thermal Transfer Printer
  • Product Series: T5000r
  • Brand Name: Printronix
  • Manufacturer: Printronix, Inc
  • Product Model: T5206r
  • Product Name: SmartLine T5206r Label Printer
  • Product Line: SmartLine

Physical Characteristics

  • Height: 13"
  • Width: 13.4"
  • Depth: 20.5"
  • Form Factor: Desktop
  • Weight (Approximate): 40 lb

Interfaces/Ports

  • USB: Yes
  • Serial Port: Yes
  • Parallel Port: Yes

Media Types & Handling

  • Maximum Label Width: 6.80"
  • Media Type:
    • Roll Fed
    • Fanfold
    • Label
    • Tag
    • Ticket
    • Plain Paper
    • Film
    • Synthetic Media
  • Media Thickness: 10 mil
  • Label Core Size: 3"
  • Maximum Roll Diameter: 8"

Other

  • Green Compliant: Yes
  • Green Compliance Certificate/Authority: ENERGY STAR
  • Platform Supported: PC
  • Certifications & Standards:
    • IEC60950-2
    • EN55022 Class B
    • EN55024
    • EN61000-3-2
    • EN61000-3-3
    • FCC Part 15 Class B

Fonts & Emulation

  • Language Emulation:
    • XML
    • PGL
    • ZGL
    • TGL
    • IGL
    • STGL
    • DGL
    • IEGL
    • MGL

Power Description

  • Input Voltage:
    • 110 V AC
    • 220 V AC
  • Operating Power Consumption: 150 W
  • Power Source: AC Supply

Memory

  • Standard Memory: 64 MB
  • Memory Technology: SDRAM
  • Flash Memory: 16 MB

Network & Communication

  • Ethernet: Yes
  • Ethernet Technology: Fast Ethernet

Warranty

  • Limited Warranty: 1 Year

Display & Graphics

  • Display Screen Type: LCD
Extended Details
